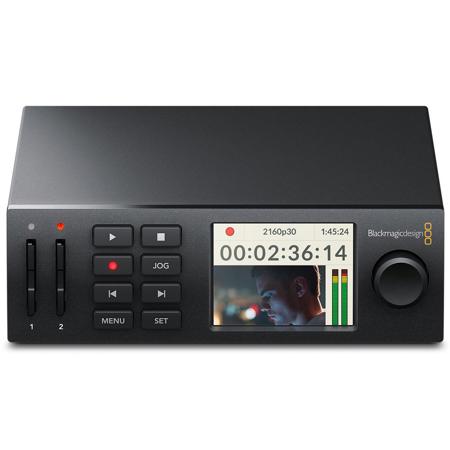

Blackmagic Design HyperDeck Studio Mini Ultra HD Broadcast Deck

SKU: BMHYPERDSTM

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

DEAN F : I've read that this product doesn't come with a power cord. Is that correct?ROB S : Correct no power cord
DEAN F : Are the two SDI outs (a and b) pass-through? Can I connect those to Televisions around our building?George M : They pass signal as input, a to a if input is selected like e-e mode in a record deck. If input not selected, it displays file playback like a tape deck. B for dual stream b half of a split 3g sdi signal.Mari W : Yes, the two SDI outputs and HDMI output will output the incoming SDI signal.MELQUI R : Yes. If you can do some other cool things with them.
Elaury C : Please, when exactly can i have the item if I buy it today ?ANDREW R : Responses on this Q&A system are from other customers, NOT Adorama employees (unless indicated by email or otherwise as "staff"). For best response regarding specific purchase inquiries please call 800-223-2500.

Reviews about this item

Review Summary

2021-06-02T07:07:07

Rated 5 out of 5

Great and practical product

Very practical product. I like that it gives options to record in ProRes and MP4. We have been using it for 4 months and have not had any issues with it.

GUCLU E.

2021-05-04T08:24:18

Rated 5 out of 5

Best of the best!

It just plug and play! Is a must-needed equipment in your gear list.

KYDENNIS S.

2021-02-26T07:34:55

Rated 5 out of 5

Work Smarter not Harder!

This is amazing and a huge time saver! It just works!

RON C.

2021-01-01T12:37:56

Rated 5 out of 5

Great Retailer and Great product

We are new to live production but blackmagic has very powerful and great products. I bought this to pair it with my Atem mini pro and it has made our live production end result very professional. Great product and Adorama was a pleasure to deal with from being to end. Very happy with my purchase and overall experience

JORGE H.

2020-12-02T22:01:30

Rated 4 out of 5

Grate product has some minor drawbacks.

I like this product a lot. So I bought 2 of them. it works so well with the ATEMs by black magic cueing video without skipping a beat. I like that it has POE+ so I don't have to plug it into the wall. What I will say is a problem with this thing or just kind of a drag it is to make sure that whatever is on your SD card is the exact same frame rate, resolution and file type or they will not work on the same card. So you do need to plan ahead and take the time to convert videos in exactly the same way or it will only read one file type and not the others. The other drawback is that it had kind of a useless USB-C port in the back that doesn't really do anything that the ethernet cord couldn't do. I really think they added the USB-C port as a marketing gimmick because it is only for firmware updates or some other waste of space. One thing you need is to get some of the better SD cards I really like the ones from Lexar with the silver label they are fast and reliable but for 256gb they are like 60 dollars which is only necessary if you plan on cueing lots of different videos on one card. Otherwise for recoding just get 2 124gb cards and swap them with the infinite recording feature where you can start a recording on one card and the recording will continue on the other SD card slot without skipping a frame. Last drawback, it has a top secret way of rewinding and fast forward. You have to press the JOG button 2 times and then you can't run the wheal but it is not fast forward it is more about the a chain of the playback speed for fast forward is really just 16x forward and rewind at the max is 16x back. I just wish there were dedicated buttons for this, but I am not really an AV pro so I could understand why it is nor really necessary for a device like this. That is assuming that you will have time to prep what you are going before hand instead of messing the FF and RW. Last thing that I really like about this if you have time you can just transfer files using FTP but I don't think it is that fast but it is nice not to have to take out and SD card every time you would like to play a file.

MICKEY M.

2020-09-29T08:57:52

Rated 5 out of 5

Great item for capture and storage of video files in the studio or live events

Great fix for the deficiencies in the Black Magic video switcher. So far working great!

Eric S.

2020-09-21T19:10:15

Rated 5 out of 5

Great product for all my videoing sessions.

Great recorder!!! This Blackmagic Design Hyper Studio Mini Recorder has taken my video and streaming capabilities to the 21st century.

Errico O.

2020-08-01T05:32:43

Rated 4 out of 5

Almost Perfect Video Recorder

The Blackmagic Design HyperDeck Studio Mini is a very good digital video recorder. The SDXC recording media used by this recorder is readily available and affordable. The HyperDeck Studio Mini is very easy to install and operate. The built-in video display helps to verify the video picture quality. I would give the video recorder five stars if it included a headphone output. I always like to very the audio quality with headphones during a recording.

BRUCE P.

2020-07-30T11:49:31

Rated 5 out of 5

Works perfectly for my use case - ATEM integration

I bought this to work with an ATEM Mini Pro because the ATEM has only a single media player and it can only hold still images in the media pool. I wanted the ability to have moving content as either the upstream (or a moving background in chroma keying) or downstream (for animated lower thirds) keying. This works just as I had hoped and provides both capabilities. It’s a great feature augmentation to an ATEM switcher.

MICHAEL R.

2020-06-02T12:43:05

Rated 5 out of 5

New to HyperDeck

Great so far

Louis B.

2019-11-07T08:58:16

Rated 4 out of 5

Great Deck, No on/off switch

The Hyperdeck Studio Mini, is a great all around product. With many different codecs to accept and record from this unit is pretty versatile. We love that it has an output to simultaneously send a feed out while recording. Its build quality is strong and connections well fastened. But I believe this unit must be connected to a power rack (or strip) to consistently operate. We unplugged our unit by the cord too many times and caused it to have a power failure. We needed to purchase a replacement for it.

Paul S.

2018-11-11T18:44:23

Rated 3 out of 5

Card Reader crapped out

The reader crapped out on us and we aren't able to format the cards in the unit any longer. It only reads the files that it wants to read. We aren't sure if the particular unit has issues or ALL hyperdecks have this issue.

ZACHARY K.

2018-05-18T08:36:20

Rated 5 out of 5

Great Device for the Price

I've found that this device is a perfect fit for my needs. For the price, it's hard to find anything comparable. The screen is super convenient, as is the ability to put three of these in a rack side by side. I'm also happy with the formats available. The main negative for me is that it's pretty picky about SD cards, so do your research and get the right cards. Oh and of course don't forget the power cord!

Christopher C.

2018-04-30T12:22:21

Rated 4 out of 5

Good but no power cord.

Good for broadcast record but no power cord. For that price ... I will be proud to got it with the power cord

CHIMELLE G.

2018-01-28T10:34:21

Rated 5 out of 5

Great recorder/conversor

Great device for record using Blackmagic Studio Pro HD

Ana F.

2017-04-10T15:24:34

Rated 4 out of 5

Solid Recorder but could use more approved media options

The Hyperdeck Studio Mini recorder is a solid and flexible record and playback deck for all levels of production. It can be controlled remotely via the Blackmagic Design ATEM 1 or 2 M/E broadcast panels with an ATEM switcher as well as with the ATEM software running on a Mac or PC. It can also play out a video with an alpha channel, so if you have keyed graphics that you want to play for a live show, you can record them on an SD card and play them via the Studio Mini. However, beware SD media... there are relatively few options (only 1 Lexar card and couple of SanDisk cards) that are currently recommended for the recorder. Curiously, the SanDisk 128GB Extreme Pro 95MB/s card is not recommended, but both the 64MB and 32MB cards are while the much Lexar 150MB/s is also not recommended (this despite Blackmagic showing both cards in their product photography).

BRETT C.

Blackmagic Design HyperDeck Studio Mini Specifications

  • Connections

    1x SDI Video Input
    2x SDI Video Output
    SDI Rates: 270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI
    HDMI Video Output: 1 x HDMI type A connector
    Power over Ethernet: 1x Ethernet with Power over Ethernet
    Analog Video Input: No
    Analog Video Output: No
    Analog Audio Input: No, embedded audio only
    Analog Audio Output: No, embedded audio only
    Timecode connections: No
    SDI Audio Input: 16 channels embedded in SD and HD in QuickTime files

  • Connections (Cont.)

    SDI Audio Output: 16 channels embedded in SD and HD in QuickTime files.
    HDMI Audio Input: No
    HDMI Audio Output: 8 channels embedded in SD, HD and UHD in QuickTime files.
    Reference Input: Tri-Sync or Black Burst
    Reference Output: Tri-Sync or Black Burst
    Computer Interface: 1x USB 2.0 type C for software updates and HyperDeck Utility software control

  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

  • SDI Compliance

    SMPTE 259M, 292M, 296M and 425M

  • SDI Metadata Support

    HD RP 188 and closed captioning

  • Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • Video Sampling

    4:4:4:4

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution

  • Media

    2x SD for SD, HD and UHD recording

  • Media Type

    UHS II and able to support ProRes 4444 playback and 422 recording

  • Media Format

    Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems

  • Supported Codecs

    Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime

  • FTP Clients

    Cyberduck, Transmit, FileZilla

  • Control

    8 Buttons for menu control, 2.2" color display, and a rotary wheel

  • Software

    Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)
    Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software

  • Displays

    Built-in LCD for video, audio and timecode monitoring and menu settings
    2x LED indicator lights above the SD slots

  • Installation

    1/3 rack unit size. Less than 7 inches deep

  • Operating Systems

    Mac OS X 10.11 El Capitan, macOS Sierra or later
    Windows 8.1 64-bit or Windows 10 64-bit

  • Power Supply

    1x Internal 100 - 240V AC

  • Operating Temperature

    5 to 50 deg. C (41 to 122 deg. F)

  • Storage Temperature

    -20 to 45 deg. C (-4 to 113 deg. F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions (W x L X H)

    5.51 x 6.69 x 1.75" (14.00 x 16.99 x 4.45cm)

  • Weight

    1.28lbs (0.58kg)

  • UPC Code

    9338716004472

About Blackmagic Design HyperDeck Studio Mini

FEATURED REVIEWS

Great and practical product

By GUCLU E.

Very practical product. I like that it gives options to record in ProRes and MP4. We have been using it for 4 months and have not had any issues with it.

Best of the best!

By KYDENNIS S.

It just plug and play! Is a must-needed equipment in your gear list.

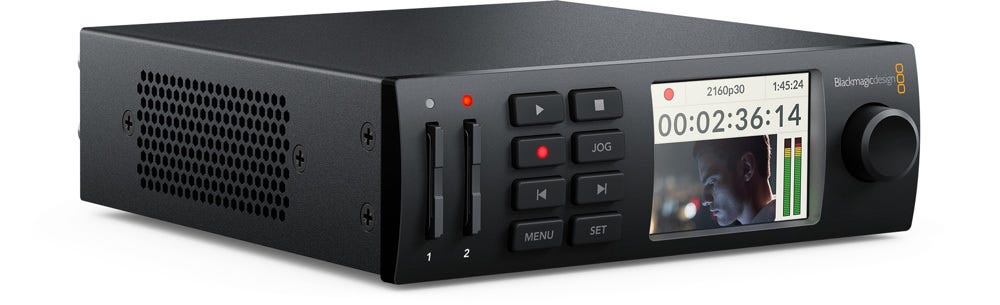

HyperDeck Studio Mini

The world’s smallest Ultra HD broadcast deck with professional 10 bit recording and playback, dual SD/UHS-II card recorders, FTP media upload and more!
HyperDeck Studio Mini is a miniaturized broadcast deck that’s so compact and portable you can use it anywhere! Even at this incredibly tiny size, you get a professional deck that records and plays back broadcast quality 10-bit video as ProRes files on commonly available SD and UHS-II cards. It’s packed with features like 6G-SDI for working with all formats up to 2160p30, HDMI 2.0 for monitoring, dual SD card slots for non-stop recording and a reference output with built in sync generator that lets you daisy chain and synchronize multiple decks together! The Dual Link 6G-SDI out can even be used to playback 720 and 1080 HD 4:4:4:4 files to separate fill and key outputs! HyperDeck Studio Mini includes industry standard RS-422 deck control, a built in power supply and ethernet with PoE+ for custom control solutions and uploading media via FTP!

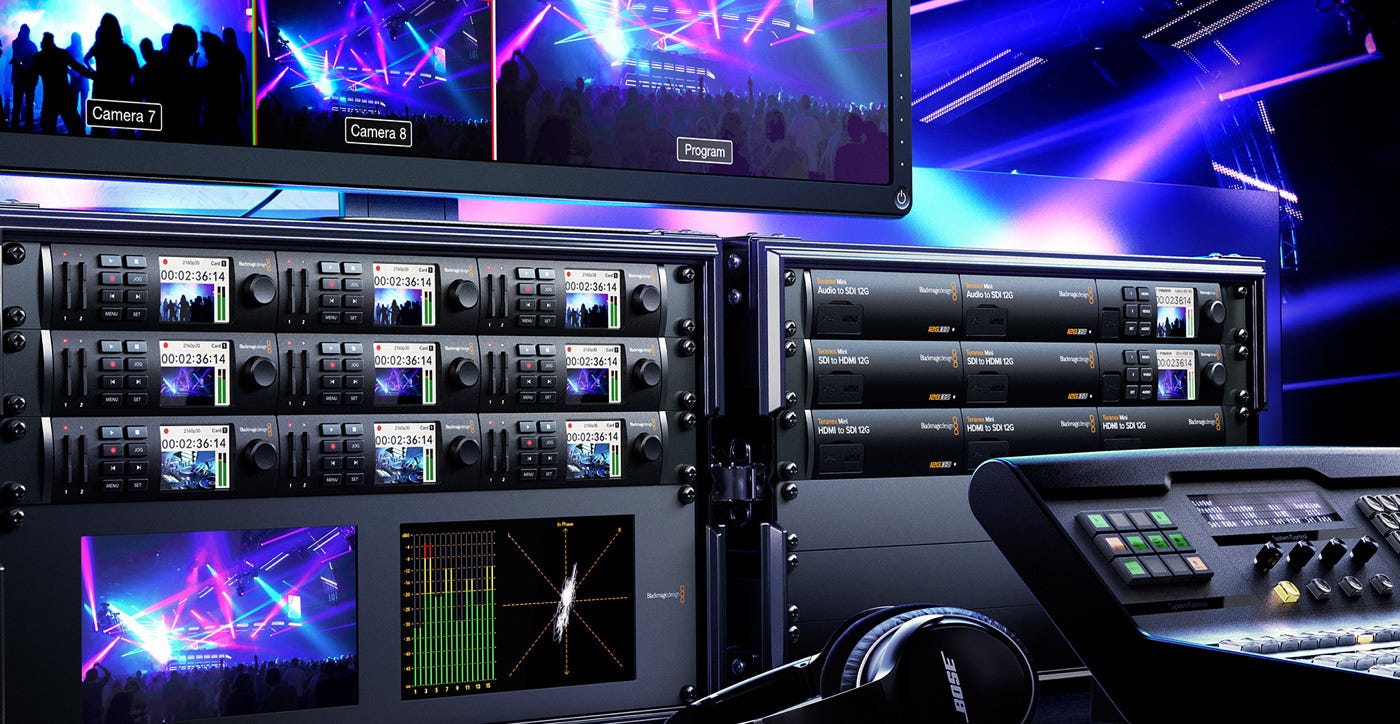

Incredibly Versatile

Incredibly Versatile

Broadcast quality recording and playback you can take anywhere!
HyperDeck Studio Mini is perfect for use as a master program recorder during live multi camera production, or as an ISO recorder from your cameras so you can edit the final program later. HyperDeck Studio Mini is also a powerful clip player for playback directly to air, or even as a client preview deck in a conference room with a large HDMI television. Because you can lock and sync the playback of multiple units together, it’s ideal for high resolution digital signs that use multiple screens. The separate fill and key SDI outputs let you use it to play animated broadcast graphics with an alpha channel for keying over live video with a live production switcher, all in real time!

Portable Elegant Design

Portable Elegant Design

Incredibly small design with powerful full size deck features!
HyperDeck Studio Mini features dual SD card recorders, professional connections, ethernet, built in power and much more, all miniaturized into an elegant 5.5 inch wide compact and modular design. You can rack mount it using the optional Teranex Mini Rack Shelf and combine it additional modules to create a customized deck! For example, if you need to work with analog material, you can combine it with a Teranex Mini Analog to SDI converter on the input and a Teranex Mini SDI to Analog converter on the output to create an analog deck! To create a deck with eight mirrored outputs, use it with a Teranex Mini SDI Distribution 12G. If you're not using it in a rack, HyperDeck Studio Mini’s elegant design also looks great when used on the desktop. It’s the world’s most sd-card professional deck!

Professional Connections

Professional Connections

6G-SDI for SD, HD and Ultra HD
HyperDeck Studio Mini features multi rate 6G-SDI connections so you can connect it to virtually any camera, monitor or SDI router and work with all SD, HD and Ultra HD formats up to 2160p30. You get an SDI input, reference input and two SDI outputs that can be used as dual link or fill and key outputs. The high quality HDMI connection lets you play back to big screen televisions, digital projectors and more! In addition, there’s an RS-422 deck control connection, ethernet for uploading files to it via FTP and a built in 110-240V AC power supply. There’s even an SDK and easy to use ethernet protocol documented in the instruction manual that lets you integrate HyperDeck Studio Mini into your custom systems and software!

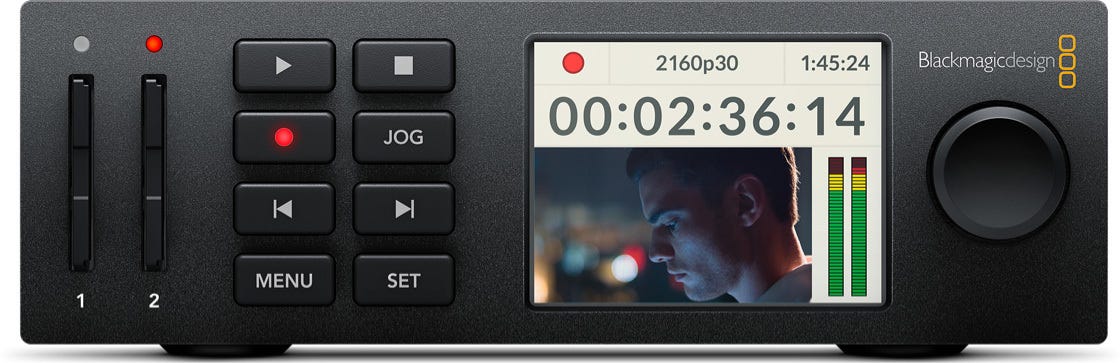

Familiar VTR Controls

Familiar VTR Controls

Easy to use, no training required!
HyperDeck Studio Mini features traditional deck style transport controls, including a jog button and shuttle wheel. The integrated high resolution LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. It also displays information about each card’s recording status, along with video format, frame rate information and audio levels, all on the same display! The combination of familiar VTR style controls and the built in LCD screen makes it fast and easy to use!

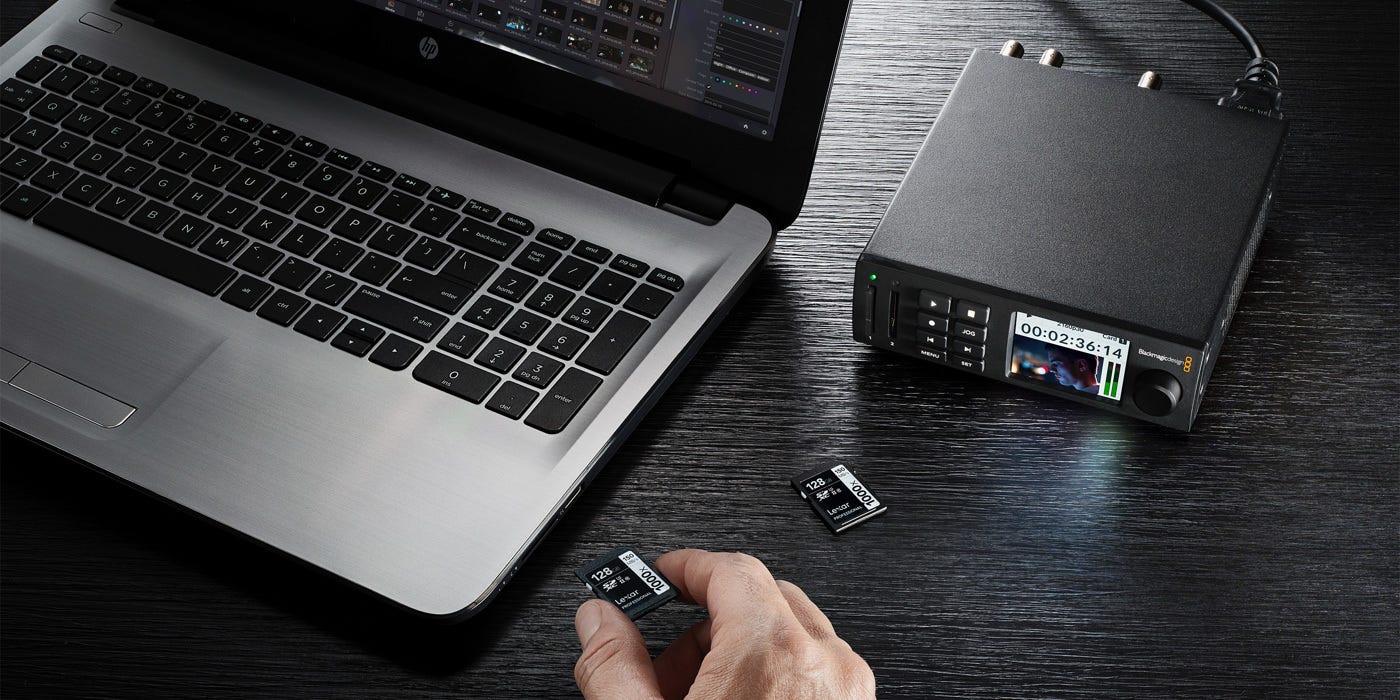

SD Card Media

SD Card Media

The next generation of broadcast media!
SD Cards are commonly available, inexpensive and extremely reliable, which makes them perfect for use as professional broadcast media storage. Best of all, they’re solid state so unlike disk or tape based systems, you get instantaneous transport ballistics so you never have to wait for media to cue. That means you can play back any frame from any card at any time! HyperDeck Studio Mini records to both regular SD cards and high performance UHS-II cards. You can use standard SD cards for SD and HD video, and UHS-II cards when you want to record in Ultra HD. In addition, SD cards don’t deteriorate over time and are incredibly tiny, so you can create an entire archival library of your content that takes up a fraction of the space required by older types of media!

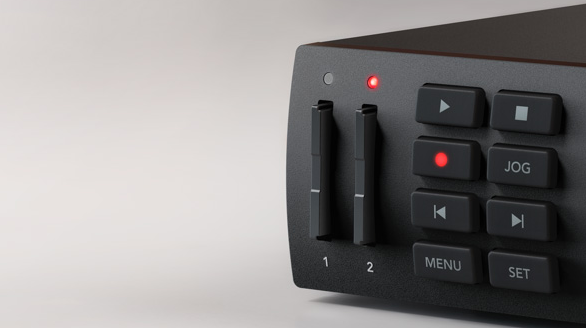

Non-Stop Recording

Non-Stop Recording

Swap out full cards while recording!
HyperDeck Studio Mini features dual media slots for non stop recording. When the recording card becomes full, recording automatically continues onto the next card. That means you'll never have to worry about missing an important shot. That’s perfect when you’re recording at longer live events because the cards are also hot swappable, so you can swap out a full card for an empty one while recording continues in the other slot! Each slot has an indicator light that changes color to show status so you’ll instantly know which card is in use. Both recorders use individual internal PCB’s that can be replaced if the slot ever becomes worn out from heavy use. Plus, the second slot is perfect for redundancy so you can get out of trouble in the case of a fault!

Broadcast Quality Video

Broadcast Quality Video

Record and play industry standard ProRes files!
HyperDeck Studio Mini records video as standard ProRes files, which is one of the most widely accepted professional video file formats in the world! You get broadcast quality 10-bit YUV or 10-bit RGB recording in all formats up to 2160p30, all recorded onto ExFAT or HFS+ formatted media cards. Plus, the ProRes files are compatible with software such as DaVinci Resolve, Final Cut Pro X and more, so this means you can simply insert the card into your computer and start editing, all without having to convert the files! HyperDeck Studio Mini works with a variety of ProRes formats, including high end ProRes 4:4:4:4 in HD which supports both image and alpha channels. That means you can you output animated graphics with transparency via the fill and key SDI connections, making HyperDeck Studio Mini perfect for playing broadcast graphics out to a live production switcher for keying over live video!

Works with Professional Software

Record files that are ready for editing!
HyperDeck Studio Mini records files that are compatible with virtually all post production software. If you are working with popular editing software such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro or Avid Media Composer, you can start editing and color correcting without having to transcode or convert the files. Even motion graphics and visual effects artists using software like Fusion and After Effects can easily work with the files!

Works with Professional Software

What's in the box:

  • Blackmagic Design HyperDeck Studio Mini Ultra HD Broadcast Deck
  • SD Card with Software
  • Manual
  • Blackmagic Design 1 Year Limited Warranty
