Blackmagic Design Intensity Pro HDMI Editing Card, PCI
See all Blackmagic Design items

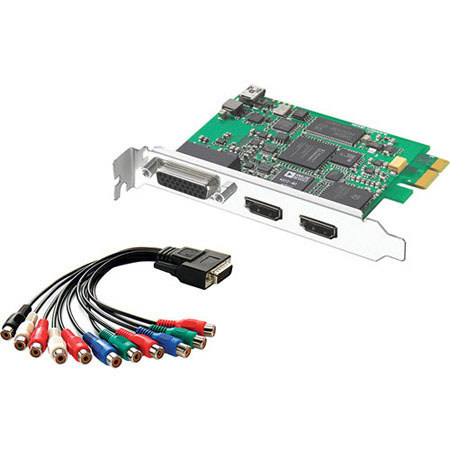

Blackmagic Design Intensity Pro HDMI Editing Card with PCI Express

SKU: BMIP

This item is no longer available.

Recommended Alternatives

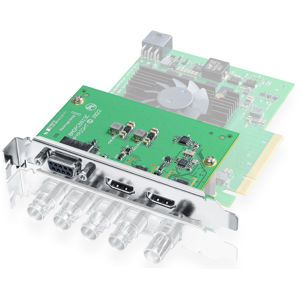

Blackmagic Design DeckLink Duo 2 Mini: Picture 1 regular
Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
$545.00
Blackmagic Design DeckLink Quad 2: Picture 1 regular
Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture and Playback Card
$1,095.00
Blackmagic Design Intensity Pro 4K: Picture 1 regular
Blackmagic Design Intensity Pro 4K Capture & Playback Input/Output Card
$285.00$259.00
Blackmagic Design UltraStudio 4K Mini: Picture 1 regular
Blackmagic Design UltraStudio 4K Mini Capture and Playback Unit
$1,165.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Where can I find drivers & software.  The ones that come on the DVD don't work?
richard r : does this work with OBS, and how many live streams can it do. I heed to do  you tube and Facebook at the same time?
Shopper : Which Windows versions are supported ?

Reviews about this item

Review Summary

Blackmagic Design Intensity Pro HDMI Editing Card, PCI Specifications

  • Connections

    Intensity Pro

  • Digital Video Input

    1 x HDMI input

  • Digital Video Output

    1 x HDMI output

  • Supported HDMI formats

    525 NTSC, 625 PAL, 720HD and 1080HD switchable

  • HDMI Audio Input

    2 Channels

  • HDMI Audio Output

    2 Channels

  • Analog Video Input

    Component, NTSC, PAL or S-Video

  • Analog Video Output

    Component, NTSC, PAL or S-Video

  • Analog Audio Input

    2 Channel RCA HiFi audio in 24 bit

  • Analog Audio Output

    2 Channel RCA HiFi audio in 24 bit

  • SPDIF Audio Output

    2 Channel 24 bit

  • Dual Rate support

    HDMI and Analog Component switches between high definition and standard definition

  • Sync Input

    None

  • Device Control

    None; Use FireWire if capturing from HDMI cameras

  • Updates

    Firmware for cards built into software driver
    Loaded at system start, or via updater software

  • HD Format Support

    1080i50, 1080i59.94, 720p50 and 720p59.94

  • SD Format Support

    625/25 PAL and 525/2997 NTSC

  • HDMI Video Sampling

    4:2:2

  • HDMI Color Precision

    4:2:2

  • HDMI Color Space

    YUV 4:2:2

  • HDMI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • Card type

    PCI Express 1 lane, compatible with 1,4,8 and 16 lane PCIe slots

  • Colorspace Conversion

    Hardware based real time.

  • HD Down Conversion

    Real time 1080HD and 720HD to standard definiton during video playback
    Real time standard definition to 1080HD and 720HD during video capture

  • Real time effects

    Apple Final Cut Pro internal effects on Mac OS X
    Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats

  • Firmware Upgrade

    Firmware for cards built into software driver
    Loaded at system start, or via updater software

  • Installation

    PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots

  • Warranty

    Blackmagic Design warranty

  • UPC Code

    9338716000160

About Blackmagic Design Intensity Pro HDMI Editing Card, PCI

The BlackMagic Design Intensity Pro HDMI Editing Card is an excellent choice for your digital and analog capture needs. The card fully supports NTSC, PAL and HD video via HDMI, component, composite or S-Video. It supports two channels of embedded, RCA or S/PDIF audio at television-standard sampling rates. The Intensity Pro supports 4:2:2 color sampling for superior chromakey performance. The card can work with both Windows and Macintosh computers, making it an excellent choice for your editing needs regardless of your operating platform.

Blackmagic Design Intensity Pro HDMI Editing Card, PCI Features

  • True HDMI Digital Connections: Intensity features HDMI-in for connecting to cameras and digital set-top boxes for the highest quality capture. Get higher quality capture from HD cameras by capturing direct and bypassing the HDV compression chip for high quality video captured
  • Go Beyond HDV Video Quality: HDV video compression suffers from not being full 1920 HD resolution and the extra processing required makes editing difficult. With Intensity, you can now capture and play back full resolution HDTV uncompressed video for true broadcast and feature film quality editing
  • Live Production with On-Air 2.0: Experience the incredible excitement of filming events live. Included with Intensity is Blackmagic On-Air 2.0, which allows two Intensity boards to be plugged into Apple Mac Pro systems for live mixing between two HD or SD cameras
  • Windows and Mac OS X Compatible: Plug into Windows or Mac OS X computers with the same card and use your favorite software, including Final Cut Pro, Premiere Pro, After Effects, Photoshop, Fusion and many more
  • Professional Video Standards: Instantly switch between HD and SD video standards including HDTV 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, NTSC and PAL

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design Intensity Pro HDMI Editing Card
  • Software CD-ROM
  • Breakout Cable
  • Blackmagic Design Warranty
