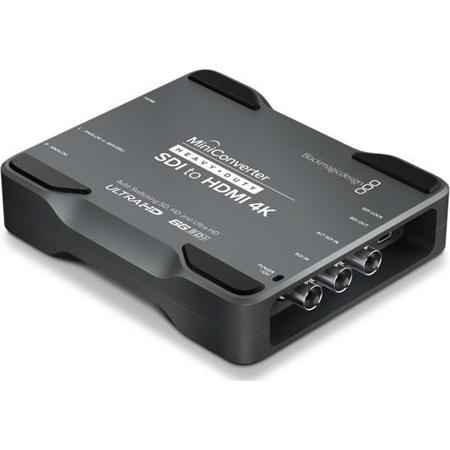

Blackmagic Design SDI to HDMI 4K Heavy Duty Mini Converter, SD/HD/2K/UHD/4K Support, 4:2:2 Video/24-Bit, 48kHz Audio Sampling

The Blackmagic Design SDI to HDMI 4K Heavy Duty Mini Converter allows you to convert single link SD/HD/3G/6G-SDI to a single 4K HDMI output. This lets you use professional SDI equipment that output Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over HDMI. This heavy duty model is machined from a solid block of aircraft grade aluminum so it's durable enough for the most demanding live productions and outside broadcast environments. With a compact form factor and easy-to-use controls, the Mini Converter Heavy Duty is ideal for a variety of broadcast, post production and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter Heavy Duty supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. It also supports single link SD, HD and 3G-SDI signals and automatically detects the input video format. When a UHD source is connected and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD. A redundant SDI input is provided as an optional back up and an SDI loop-through output is available for sending the SDI signal to an additional device. SDI input audio is de-embedded and available via the HDMI output or the 1/4" output jacks as AES/EBU digital audio or balanced analog audio. Settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
