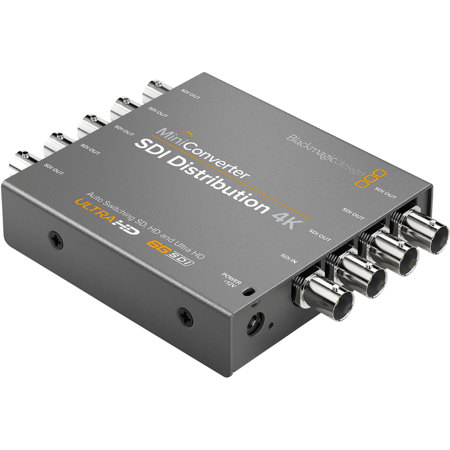

Blackmagic Design Mini Converter SDI Distribution 4K, Single Link SD/HD/3G/6G6G-SDI Input, Re-Clocked Outputs, Automatic Input Signal Detection

SKU: BMMCSDID4K MFR: CONVMSDIDA4K
Earn VIP Reward Points

Key Features

  • Distribute your SDI signal to 8 outputs simultaneously with this video distribution amplifier.
  • Supports 6G-SDI, HD, and SD formats; auto input detection ensures seamless video switching.
  • Enjoy pristine video quality with re-clocking on all outputs for a reliable SDI signal.
  • Wide compatibility: Supports SMPTE 259M, 292M, 296M, 372M, and 425M SDI compliance standards.
  • Ideal for live broadcasts, distributing a single SDI source to multiple displays easily.
  • Compact & robust design; this Mini Converter SDI distribution fits seamlessly into any setup.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Gregory P. J : what are the cables and the PCIe card pictures in the description. Which is the product ?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Mini Converter SDI Distribution 4K Specifications

  • SDI Video Input

    Switchable between SD, HD and 6G-SDISDI.

  • SDI Video Output

    8 outputs automatically match the SDI video input.

  • Multi Rate Support

    Auto detection of 6G-SDI, HD or standard definition inputs.

  • Reclocking

    Yes

  • SD Format Support

    525/29.97 NTSC, 625/25 PAL

  • HD Format Support

    720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

  • 2K Format Support

    2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

  • 4K Format Support

    3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

  • SDI Video Rates

    SDI video connections are switchable between 6G-SDI, HD and SD-SDI

  • SDI Video Sampling

    4:2:2 and 4:4:4

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

  • SDI Color Precision

    4:2:2 and 4:4:4

  • SDI Color Space

    YUV and RGB

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3G- SDI.

  • ASI Support

    Yes

  • Power Supply

    +12V universal power supply included with international socket adapters for all countries. Cable tie point.

  • Power Consumption

    4.80 Watts

  • Operational Voltage Range

    12V - 30V

  • Operating temperature

    0deg. to 40deg. C (32deg. to 104deg. F)

  • Storage temperature

    '-20deg. to 45deg. C (-4deg. to 113deg. F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    4.80 x 3.63 x 0.90" (12.19 x 9.22 x 2.29 cm)

  • Weight

    11.88 oz (336.79 g)

  • UPC Code

    9338716002621

About Blackmagic Design Mini Converter SDI Distribution 4K

When you need to connect to multiple SDI devices, then the Blackmagic Design Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Easy To Use Features
Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables!

Ultra HD and 6G-SDI Technology
Make the move to Ultra HD, the broadcast standard of the future, easy! Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD! This means you're ready for the future and can build your system with full Ultra HD compatibility! Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size!

Standard Audio Connections
Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables!

Powerful Performance
Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own!

Optical Fiber Conversion
Mini Converter is available in a 6G-SDI to optical fiber model. You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other. Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

Highest Quality Processing
With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control
Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software. Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute your SDI signal to 8 outputs simultaneously with this video distribution amplifier.
  • Supports 6G-SDI, HD, and SD formats; auto input detection ensures seamless video switching.
  • Enjoy pristine video quality with re-clocking on all outputs for a reliable SDI signal.
  • Wide compatibility: Supports SMPTE 259M, 292M, 296M, 372M, and 425M SDI compliance standards.
  • Ideal for live broadcasts, distributing a single SDI source to multiple displays easily.
  • Compact & robust design; this Mini Converter SDI distribution fits seamlessly into any setup.

What's in the box:

  • Blackmagic Design Mini Converter SDI Distribution 4K
  • Software CD
  • 12V Universal Power Supply with International Socket Adapters
  • Blackmagic Design 3 Year Limited Warranty
