Blackmagic Design OG3-FR-C-P OpenGear 21-Slot Frame
See all Blackmagic Design items

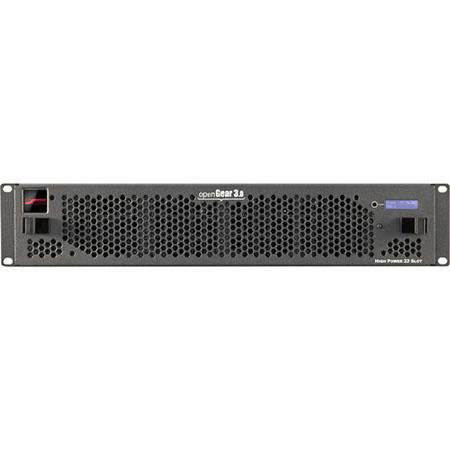

Blackmagic Design OG3-FR-C-P OpenGear 21-Slot Frame with Cooling Fans, Basic Networking & Power Supply

SKU: BMOG3FRCP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Blackmagic Design OG3-FR-C-P Specifications

  • Card Slot

    Number of Slots: 21

  • Number of Inputs

    2 looping

  • Level

    1 Vpp nominal

  • Signal

    Analog video sync (black burst or tri-level), or AES/EBU DARS

  • Impedance

    75 ohm terminating

  • Return Loss

    >30 dB to 30 MHz

  • Maximum DC on Ref Input

    +/-1 V

  • Maximum Power 1

    +12 V Rail
    Per Card Occupying 4 Slots: 5 A, 60 W
    Per Card Occupying 2 Slots: 2.5 A, 30 W
    Per Card Occupying 1 Slot: 1.25 A, 15 W
    -7.5 V Rail
    Per Card Occupying 4 Slots: 0.8 A, 6 W
    Per Card Occupying 2 Slots: 0.4 A, 3 W
    Per Card Occupying 1 Slot: 0.2 A, 1.5 W
    Total: 300 W, total power consumption not to exceed 15 W maximum per card slot

  • Maximum Power 2

    Frame Controller and Fans
    +12 V Rail: 3 A, 36 W
    -7.5 V Rail: 0.2 A (1.5 W)
    Total: 37.5 W maximum
    GFC-8322 Card
    +12 V Rail: 0.2 A (2.4 W)
    -7.5 V Rail: 0.2 A (1.5 W)
    Total: 3.9 W maximum

  • Power Supply

    PS-OG3
    Input: 100 to 240 VAC, 47 to 63 Hz, 500 W
    Output 1: 12V, 28 A, 336 W nominal
    Output 2: -7.5 V, 5 A, 37.5 W nominal
    Total: Sum of both outputs not to exceed 375 W maximum

  • Ambient Temperature Range

    32 to 104deg.F (0 to 40deg.C)

  • Humidity

    <95% non-condensing

  • Dimensions

    (2RU) 3.5x19x17.7" / 8.89x48.26x44.96cm

  • Weight

    20lbs / 9.07kg with 2 PS-OG3 power supplies installed

About Blackmagic Design OG3-FR-C-P

The Blackmagic Design openGear 21-Slot Frame combines various features to deliver optimum speed, power and flexibility. Along with 20 openGear card slots, this unit also features a dedicated 21st card slot, which is suitable for internal reference distribution. Every card slot in this unit is provided with Gigabit Ethernet access. The presence of a LCD display helps in the identification of faults and IP addresses. A redundant power supply of 450W is also featured in this unit.

This frame unit incorporates a well-designed cooling architecture that provides increased ventilation and cooling to all cards. A built-in intelligent fan controller automatically adjusts the fan's speed based on changes in the temperature and power supply. The frame also features a GFC-8322 card that distributes reference signals to openGear cards installed in the frame. Additionally, Ethernet connectivity comes standard with this unit for monitoring all the openGear cards via the DashBoard control system.

Blackmagic Design OG3-FR-C-P Features

  • High Power/Speed & Flexibility: OpenGear frame combines function, flexibility & power with advanced features like high-power 450W redundant power supplies/Gigabit Ethernet access to every card slot/20 openGear card slots/a dedicated 21st card slot for internal reference distribution & LCD display
  • Modular Frame Architecture: This frame unit offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio and fiber
  • Robust Power Supplies: This frame can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies allows for easy installation when utilizing an alternate phase power source
  • Cooling: This frame is designed with an advanced cooling architecture that provides increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back cooling
  • Control: This unit comes standard with Ethernet connectivity for basic configuration and monitoring of openGear cards through the DashBoard control system. An advanced networking card, the MFC-8322-N adds an on-board Gigabit Ethernet switch, with GigE access to each of the 20 processing card slots

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Power/Speed & Flexibility
  • Modular Frame Architecture
  • Robust Power Supplies
  • Advanced cooling architecture for increased ventilation
  • Ethernet connectivity for basic configuration & monitoring
