Blackmagic Design Studio Camera 4K Plus G2
SKU: BMSC4KPG2 MFR: CINSTUDMFT/G24PDDG2
Earn VIP Reward Points
Key Features
- Capture stunning Ultra HD footage at up to 60 fps with this digital cinema body.
- Enjoy superior low light performance with dual native ISO for clear, vibrant videos.
- Utilize the active MFT lens mount for a wide range of lens options & creative control.
- Streamline your workflow with integrated DaVinci YRGB color corrector for perfect color.
- Remotely control camera settings via SDI, HDMI, or USB Ethernet for easy operation.
- Record directly to external media via USB-C ports in Blackmagic RAW for fast editing.
FREE 2-Day Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$89.99
3 Year
$109.99
4 Year
$139.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Accessories
Learn
Specs
Protection
Q&A
About Blackmagic Design Studio Camera
FEATURED REVIEWS
This camera is great.
This is a great little camera for the price. We purchased one, and loved it and had to buy a second one. We use it in a church setting. I guess the only issues I have will be its poor low light quality (be ready to pour lots of light on this one) and also not being able to manually white balance using the old fashion white cardboard. You can only set the color temperature and we sometimes have it not consistent with other cameras we own.
Excellent product
Black magic did it again I am so excited for this product were using it in church and it is amazing thank you black magic
Blackmagic Design Studio Camera 4K Plus G2
Advanced live production capabilities in a compact design. With features comparable to large studio cameras, it provides 13 stops of dynamic range for exceptional low-light performance, ISO up to 25,600, and cinematic image quality in 4K. Compared to its predecessor, this G2 version offers new connectivity options, including HDMI, SDI, and Ethernet, for use with live production equipment like ATEM switchers. Its Micro Four Thirds lens mount, large touchscreen, physical controls, built-in tally lights, and talkback functionality make the Blackmagic Design Studio Camera 4K Plus G2 exceptionally capable at a reasonable price point.
Designed for Live Production
While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher! That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it’s so lightweight, it’s perfect when you're constantly changing locations and doing different kinds of work.
Exceptional Low Light Performance
In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. This means the higher the ISO the more gain can be added so it’s possible to shoot in natural light, or even at night! The Blackmagic Studio Camera features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set from the camera, or remotely from a switcher using the SDI or Ethernet remote camera control.
Get Cinematic Images in Live Production!
Amazing sensors combined with Blackmagic generation 5 color science give you the same imaging technology used in digital film cameras. That means you can now use cinematic images for live production! Plus, when combined with the built in DaVinci Resolve primary color corrector you get much better images than simple broadcast cameras. The color corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for color correction. Great for both HD and Ultra HD production, 4K Plus G2 model feature a resolution of 3840 x 2160 and from 23.98 to 60 fps.
Affordable Photographic Lenses!
With the popular EF or MFT lens mounts, Blackmagic Studio Cameras are compatible with a wide range of affordable photographic lenses. Photographic lenses are incredible quality because they're designed for use in high resolution photography. Plus, the active lens mount lets you adjust the lens remotely! To eliminate the need to reach around to adjust the lens manually, the optional focus and zoom demands let you adjust the lens from the tripod handles just like a large studio camera! This means you avoid camera shake when adjusting the lens so you can track shots and operate the camera without taking your hands off the tripod! It gives you the same feel as an expensive B4 broadcast lens!
Frame Shots with Large 7" Viewfinder
The large 7" high resolution screen will totally transform how you work with the camera because it's big enough to make framing shots much easier. The Pro models features an HDR display with extremely high brightness, perfect outdoors in sunlight! On screen overlays show status and record parameters, histogram, focus peaking indicators, levels, frame guides and more. You can even apply 3D LUTs for monitoring shots with the desired color and look. The touchscreen also has menus and you can load and customize presets for different jobs. The included sun shade can be folded to protect the screen for transport plus it's compatible with sun shades from the Blackmagic Studio Viewfinder!
Physical and Touchscreen Controls
Blackmagic Studio Cameras feature physical buttons and knobs as well as controls on the touchscreen. Knobs on the right side of the camera allow adjusting of the brightness, contrast and focus peaking. The focus peaking knob is incredibly useful as it lets you fine tune the detail highlight so you can get perfect focus as you zoom. The 3 function buttons on the left can have functions assigned to them, such as zebra, false color, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the menus.
The touchscreen also includes a heads up display with the most important shooting information, as well as menus for all camera settings, LUTs and custom presets.
Built-in Tally for On Air Status
Blackmagic Studio Cameras feature a very large tally light that illuminates red for on air, green for preview and orange for ISO recording. The tally light also includes clip on transparent camera numbers, so it's easy for talent to see camera numbers from up to 20 feet away! The Blackmagic Studio Cameras support the SDI tally standard used on all ATEM live production switchers and the HDMI tally used on ATEM Mini switchers. This means that a director can cut between cameras and the tally information will be sent back to the cameras via the SDI program return feed, lighting up the tally light on the camera whenever it's on air. SDI tally eliminates complex wiring so job setup is faster.
Communicate with the Director via Talkback
Unlike consumer cameras, Blackmagic Studio Cameras have SDI connections that include talkback so the switcher operator can communicate with cameras during live events. That means the director can talk to the camera operators to guide shot selection, eliminating the problem where all cameras could have the same shot at the same time! All models support 3.5mm headsets that are designed for smartphones, while the Pro models support standard 5 pin XLR broadcast headsets. Talkback uses audio channels 15 and 16 in the SDI connection between the camera and the switcher, and in the program return from the switcher to the camera. This means any embedded SDI audio device can work with talkback!
Four Ways to Connect

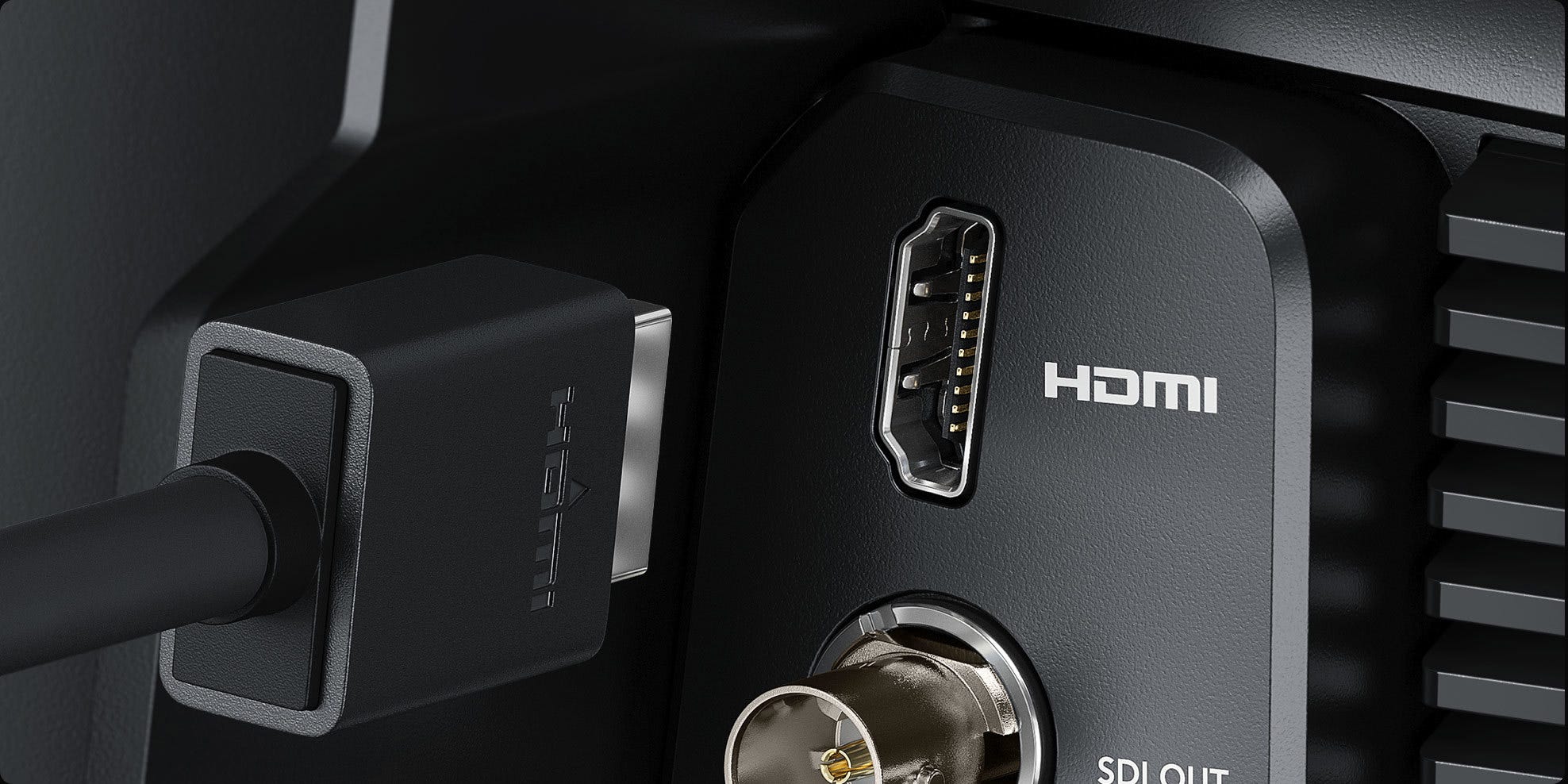

Connect via HDMI
Using the HDMI output, you can connect to switchers such as ATEM Mini! Plus the HDMI connection supports sending tally, color corrector control and record trigger back to the camera from the switcher.

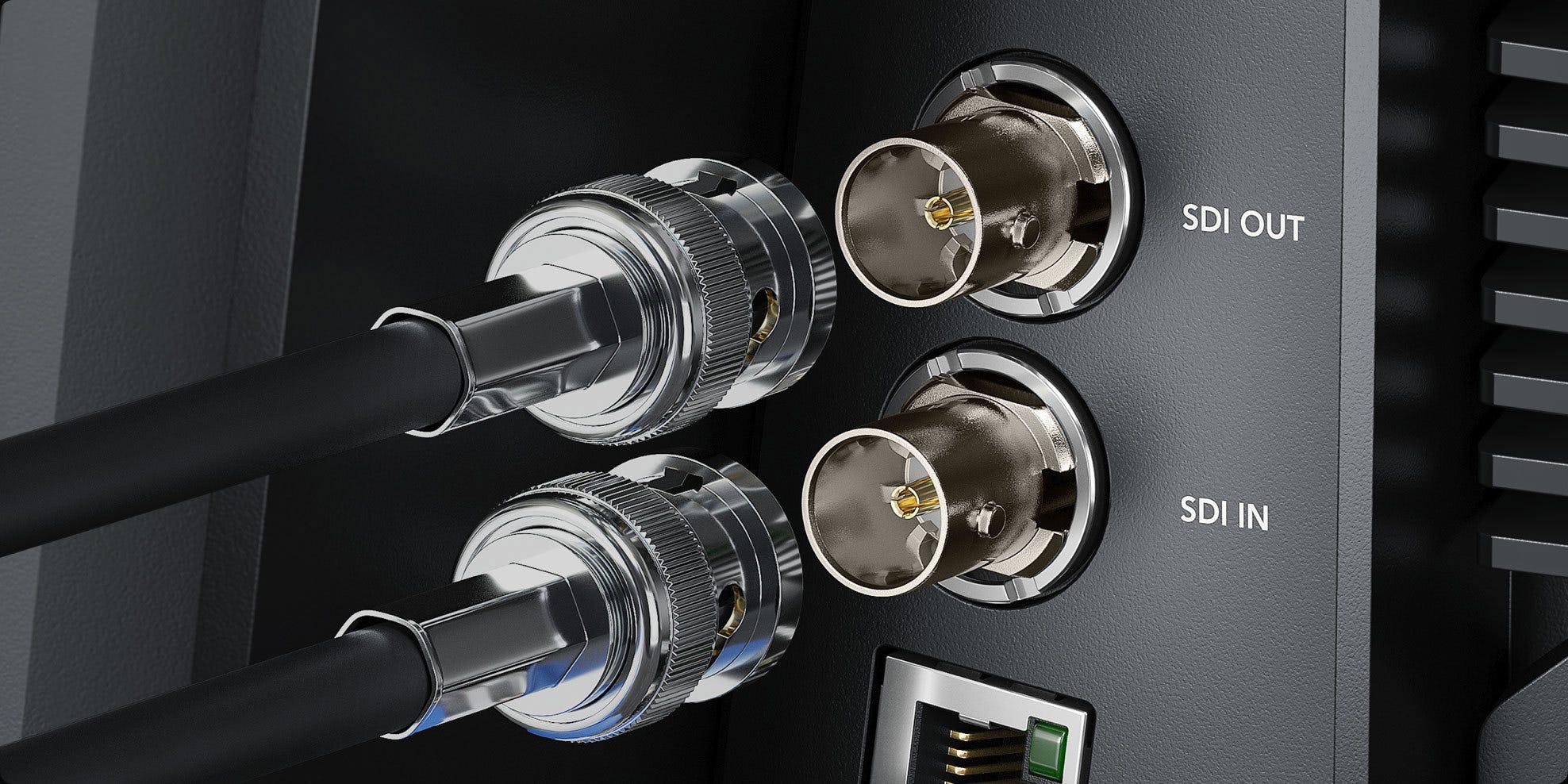

Connect via SDI
Use the SDI output and the SDI program return for 2 way talkback between the camera and any SDI ATEM switcher. Tally and control is also sent to the camera via the SDI program return.

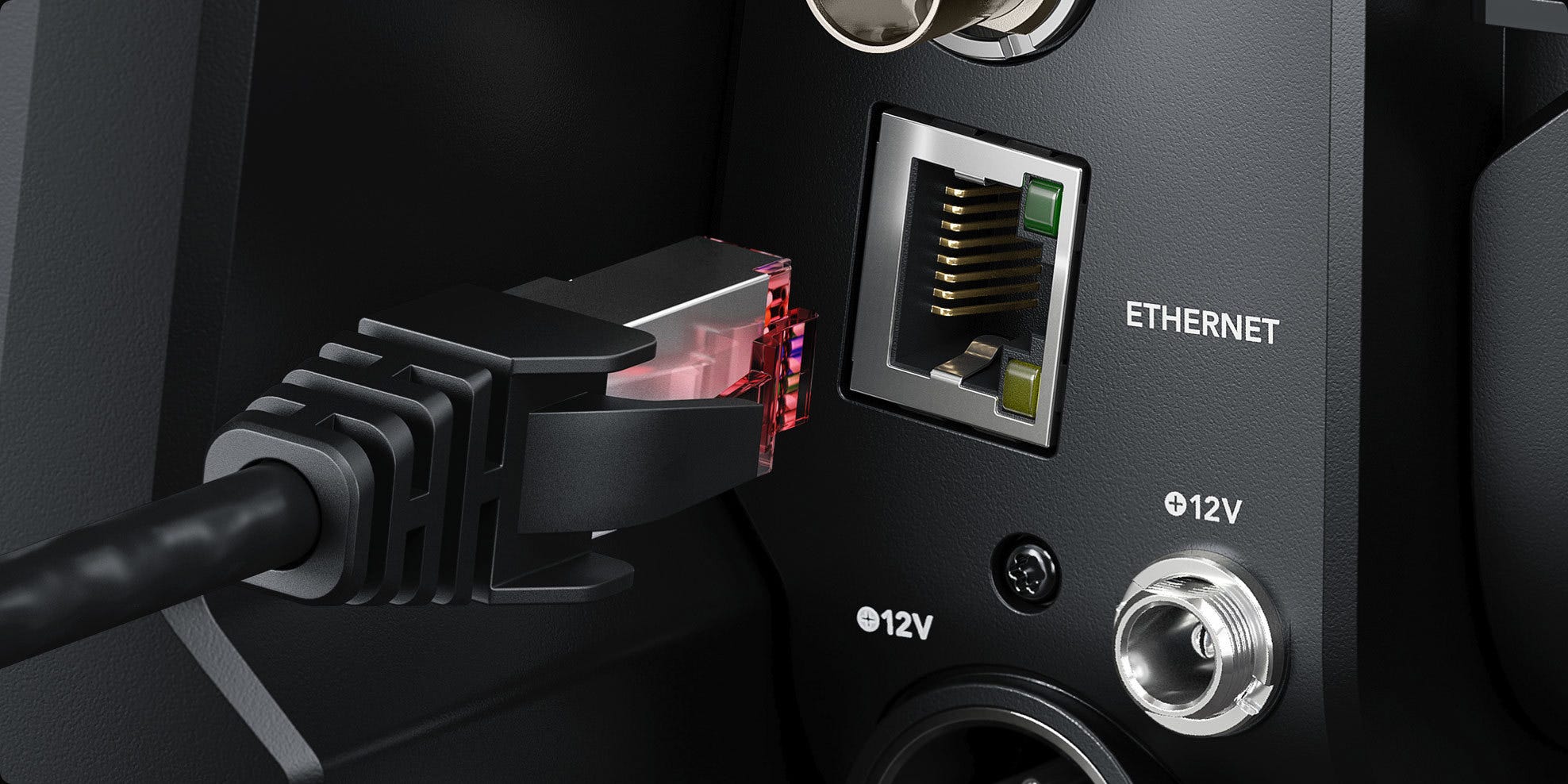

Connect via Ethernet
The 10G Ethernet connection allows all signals and camera power using a single Cat 6A copper Ethernet cable! That includes the camera video, program return, tally, talkback, camera control and more!

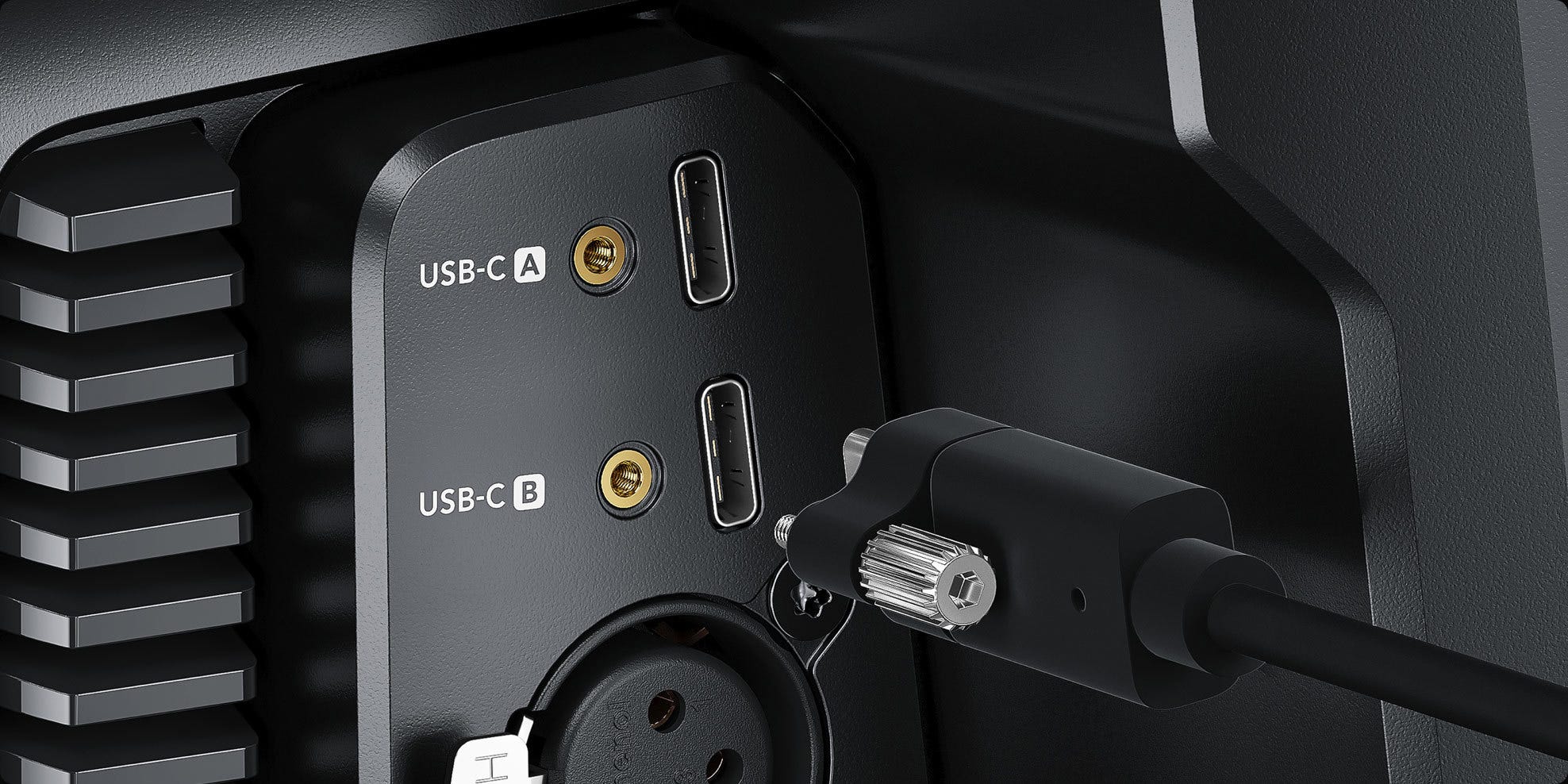

Connect via USB Disk
You can even shoot without a switcher as the large screen makes the camera fantastic for shooting while recording to Blackmagic RAW on a USB flash disk. The big screen makes framing shots very easy!
Features
- Designed specifically for live production.
- Native 4K sensor with 13 stops of dynamic range.
- Compatible with a wide range of popular MFT lenses.
- Talkback via 3.5mm headsets.
- USB-C port for recording to external disks or remote camera control over a network.
- Large 7 inch high brightness viewfinder.
- Includes 12G-SDI and HDMI connections.
- Optional focus and zoom demands for lens control.
Warranty Information
This product has a limited warranty of 12 months.
https://www.blackmagicdesign.com/
408-954-0500
Product Documents
User ManualKey Features
- Capture stunning Ultra HD footage at up to 60 fps with this digital cinema body.
- Enjoy superior low light performance with dual native ISO for clear, vibrant videos.
- Utilize the active MFT lens mount for a wide range of lens options & creative control.
- Streamline your workflow with integrated DaVinci YRGB color corrector for perfect color.
- Remotely control camera settings via SDI, HDMI, or USB Ethernet for easy operation.
- Record directly to external media via USB-C ports in Blackmagic RAW for fast editing.
What's in the box:
- Blackmagic Design Studio Camera 4K Plus G2
- Sun Shade
- Tripod Mount for 15mm Lightweight Rails
- Turret Dust Cap
- External 12V DC Power Supply with Locking Connector and International Sockets Adapters
- Blackmagic Design 1 Year Limited Warranty
