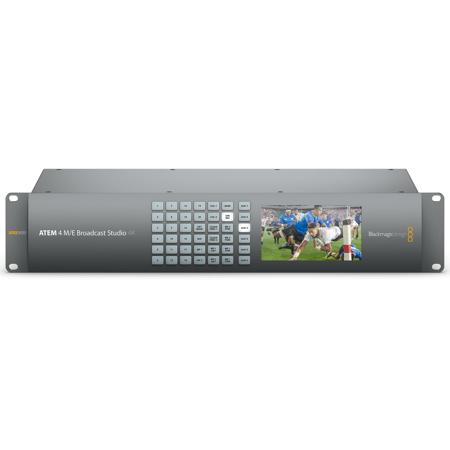

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K

The World's Most Advanced Live Production switchers!

Create stunning multi camera live production with the world’s most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!

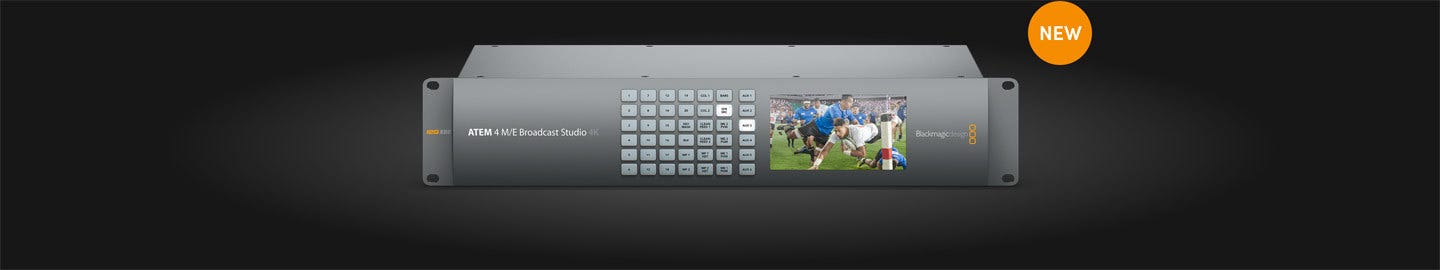

Compact & Advanced for High Frame Rate Ultra Hd

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVEs, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!

ATEM 4 M/E Broadcast Studio 4K, the world's most advanced high frame rate Ultra HD 2160p60 switcher with 20 inputs, 4 M/Es and a massive 16 next generation ATEM Advanced Chroma Keyers. In addition, the ATEM 4 M/E Broadcast Studio 4K features 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engines with 4 picture in picture DVEs, full re-synchronization on each input and much more.

The all new ATEM 4 M/E Broadcast Studio 4K lets customers create live, switched, high frame rate HD and Ultra HD programs at up to 60 frames per second. Featuring advanced 12G-SDI technology, customers can connect the latest 2160p60 cameras using a single, standard SDI cable. The multi rate 12G-SDI connections automatically switch to 6G-SDI, 3G-SDI and HD-SDI so the switcher is compatible with existing HD equipment. The ATEM 4 M/E Broadcast Studio 4K can be used to master programs in 2160p60 while simultaneously outputting them in HD with realtime down conversion. It's a future proof switcher that lets broadcasters start building a library of amazing Ultra HD content, even if they need to continue broadcasting 1080HD today.

For keying and effects, the ATEM 4 M/E Broadcast Studio 4K gives customers a total of 16 new advanced keyers for more high end creative options than ever before. Customers get 4 new ATEM Advanced Chroma Keyers on each of the 4 mix effects rows. The new keyers feature adjustable on-screen controls for selecting and sampling a region of color, adjustment controls for foreground, background and edges, and chroma correction tools for spill and flare suppression. That means customers can pull clean keys for professional broadcast quality composites and massive multi layer effects.

The ATEM 4 M/E Broadcast Studio 4K works in both HD and Ultra HD. It is designed for action filled sporting events and live concerts where smooth, crystal clear, incredibly detailed, realistic looking video is important. When combined with the extra resolution, higher frame rate and bigger color space of Ultra HD, the ATEM 4 M/E Broadcast Studio 4K makes the fast paced action and incredible drama of live sports look far better than even the highest end, most expensive regular HD production switchers.

The new ATEM 4 M/E Broadcast Studio 4K has hundreds of advanced creative features for creating the highest quality live broadcast programs. There are 4 built in media players and a larger media pool with more memory for graphics and video clips. The ATEM 4 M/E Broadcast Studio 4K features 16 built in all new ATEM Advanced Chroma Keyers, dynamic transitions, a powerful DVE, SuperSource multi layering, power macros, audio mixing, camera control with color correction and much more.

In addition to advanced 12G-SDI technology, the ATEM 4 M/E Broadcast Studio 4K features the highest quality professional broadcast connections. Every input has automatic frame re-synchronization so customers can take any source, even if it's not referenced, and make clean switches. There are also two balanced XLR audio inputs and outputs for connecting mixers and other pro audio gear. The ATEM 4 M/E Broadcast Studio 4K has both an Ultra HD program output as well as a down converted HD program output, along with 6 auxiliary outputs for sending clean feeds out to giant screens, projectors, recorders or monitors. Dual Ultra HD multi view outputs let customers monitor program, preview and cameras on large screen Ultra HD displays.

The ATEM 4 M/E Broadcast Studio 4K can be controlled using ATEM's professional hardware control panels or using the ATEM Software Control on a Mac or Windows computer connected via ethernet.

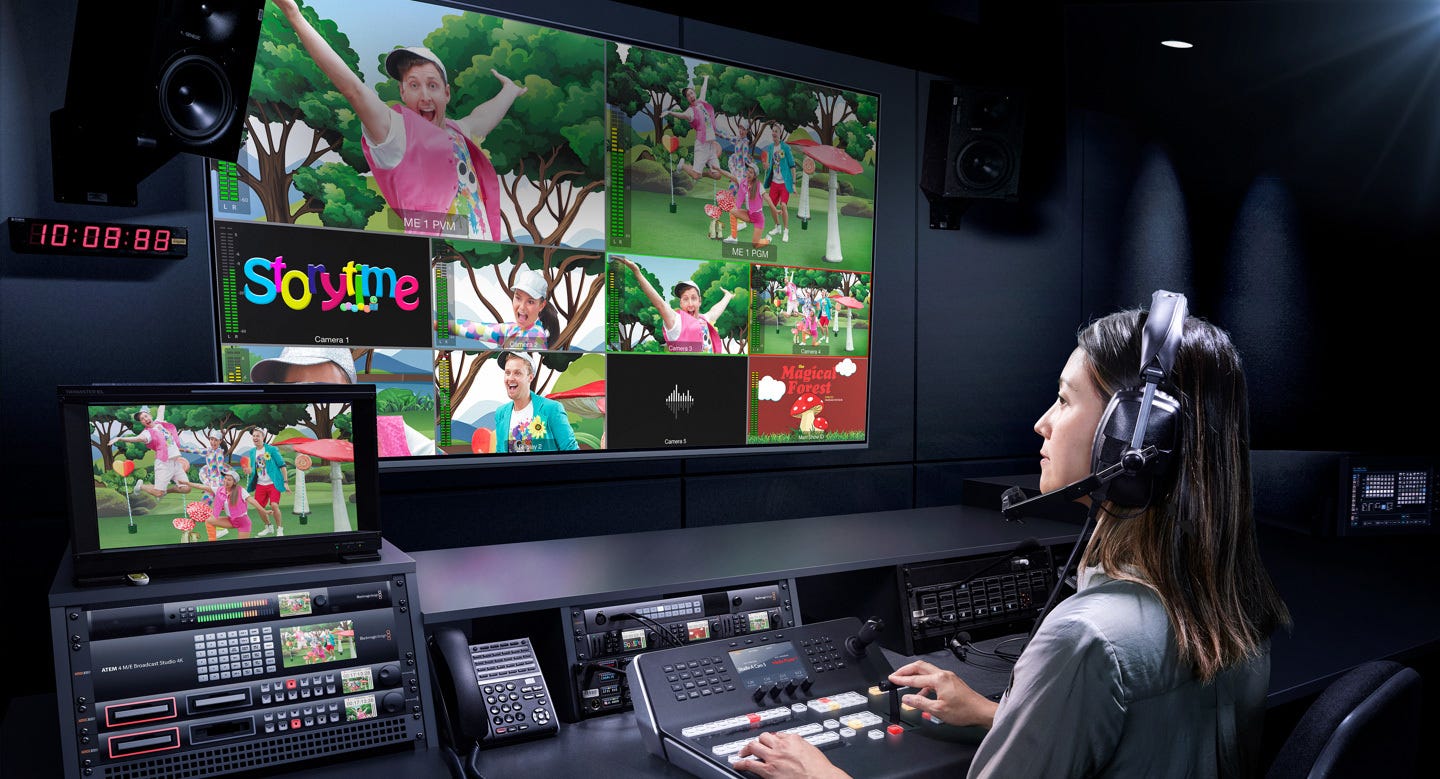

The ATEM hardware control panels are the fastest, most professional way to control a switcher during live production. The ATEM 2 M/E Broadcast Panel features high quality buttons, knobs, faders and joysticks that are built to withstand the demanding needs of live production work. The new ATEM 1 M/E Advanced Panel, which was also announced today, is a compact professional panel featuring the latest broadcast technology, an updated layout designed to help customers work quickly on live productions, and built in LCD screens that display context sensitive tools and settings when you need them. The ATEM 1 M/E Advanced Panel fits in a standard equipment rack and is perfect for tight locations like outside broadcast trucks.

The ATEM software control panel, which is included free, provides a full visual control panel with parameter palettes for making quick adjustments, loading graphics, mixing audio and more. Customers can even combine multiple hardware and software control panels on the same show so different people can be working on switching, graphics, audio, camera control and more, all at the same time.
