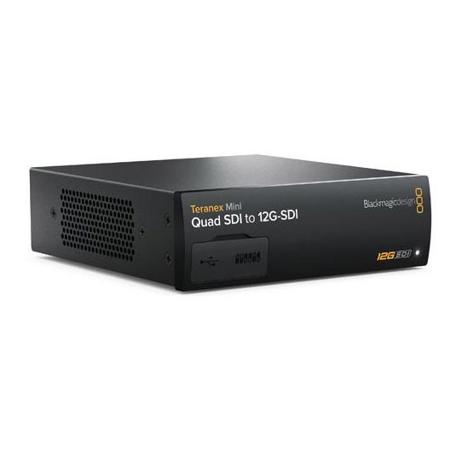

Blackmagic Design Teranex Mini Quad SDI to 12G-SDI Converter

SKU: BMTERMINQS12 MFR: CONVNTRM/DA/QDSDI
Earn VIP Reward Points

Key Features

  • Seamlessly convert Quad SDI to 12G-SDI for high-resolution video with this format converter.
  • Enjoy stable connection with auto switching between SD, HD, 2K, and 4K video formats.
  • Use the Teranex Mini for real-time conversion, ensuring smooth live streaming workflows.
  • This video format converter supports both Mac and Windows for easy software upgrades.
  • Easily manage settings via mini switches, USB, Ethernet, or the optional front panel control.
  • Power your converter via PoE+ or the built-in international AC power supply for flexibility.
See More Product Details
Coming Soon?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$31.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Teranex Mini Specifications

  • Connections: SDI Video Input

    4x 12G-SDI SD/HD/2K/4K auto switching

  • Connections: SDI Video Output

    1x 12G-SDI output

  • Connections: Multi Rate Support

    Automatic switching between SD/HD/2K and 4K

  • Connections: Updates and Configuration

    USB or Ethernet

  • Connections: Re-Clocking

    Yes

  • Standards 1

    SD Format Support: 525/29.97 NTSC, 625/25 PAL
    HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25
    Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60

  • Standards 2

    4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
    SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
    SDI Video Sampling: 4:2:2 and 4:4:4
    SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    SDI Color Space: YUV & RGB

  • Software Control

    Mac OS X and Windows software upgrade via USB and Ethernet

  • Internal Software Upgrade

    Via included updater application

  • Settings Control

    Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

  • Power Supply

    1x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 to 240V AC Input

  • Power Over Ethernet

    Can be powered via 48V DC using PoE+ (power over ethernet)

  • Power Consumption

    18W

  • Operational Voltage Range

    90 to 240V AC

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Relative Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x L)

    1.73 x 5.51 x 6.69" / 44 x 140 x 170mm

  • Weight

    20.46oz / 580g

  • UPC Code

    9338716003482

About Blackmagic Design Teranex Mini

From the renowned brand Blackmagic Design comes the innovative Teranex Mini Quad SDI to 12G-SDI Converter, a reliable and high-quality solution for all your video conversion needs. This durable device is designed to convert signals from 12G-SDI to HDMI, supporting a wide array of video formats including SD, HD, 6G, and 12G-SDI rates.

The Teranex Mini Quad SDI to 12G-SDI Converter stands out for its compatibility with a broad range of input formats. Whether you're working with 12G HD-SDI, 3G HD-SDI, 4K/UHD, 6G HD-SDI, or SDI, this user-friendly converter is equipped to handle it all, making it an incredibly versatile tool for any application that requires the conversion of diverse input formats.

One of the key features of this converter is its high-quality video processing capabilities. Blackmagic Design is a trusted name in the production of top-tier video equipment, and this converter is a testament to that reputation. It ensures that the output signal retains the same high quality as the input signal, providing you with the best possible viewing experience.

Additionally, this converter includes a down converter when working with Ultra HD, as the HDMI monitor will select the best format it can support. It also has the ability to de-embed audio to balanced analog or AES/EBU formats and timecode output. This makes it perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

In summary, the Teranex Mini Quad SDI to 12G-SDI Converter is a durable, high-quality, and reliable choice for anyone seeking a versatile and user-friendly solution for their video conversion needs.

Blackmagic Design Teranex Mini Features

  • High-quality Teranex Mini Quad SDI to 12G-SDI Converter from Blackmagic Design
  • Converts signals from 12G-SDI to HDMI, supporting a wide range of video formats including SD, HD, 6G, and 12G-SDI rates
  • Versatile tool compatible with various input formats such as 12G HD-SDI, 3G HD-SDI, 4K/UHD, 6G HD-SDI, and SDI
  • Provides high-quality video processing, ensuring output signal matches the quality of the input signal
  • Includes a down converter for working with Ultra HD, with HDMI monitor selecting the best format it can support
  • Features de-embed audio to balanced analog or AES/EBU formats and timecode output, ideal for using HDMI televisions as SDI broadcast monitors and connecting to video projectors

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly convert Quad SDI to 12G-SDI for high-resolution video with this format converter.
  • Enjoy stable connection with auto switching between SD, HD, 2K, and 4K video formats.
  • Use the Teranex Mini for real-time conversion, ensuring smooth live streaming workflows.
  • This video format converter supports both Mac and Windows for easy software upgrades.
  • Easily manage settings via mini switches, USB, Ethernet, or the optional front panel control.
  • Power your converter via PoE+ or the built-in international AC power supply for flexibility.

What's in the box:

  • Blackmagic Design Teranex Mini Quad SDI to 12G-SDI Converter
  • Software SD Card
  • Blackmagic Design 3 Year Limited Warranty
