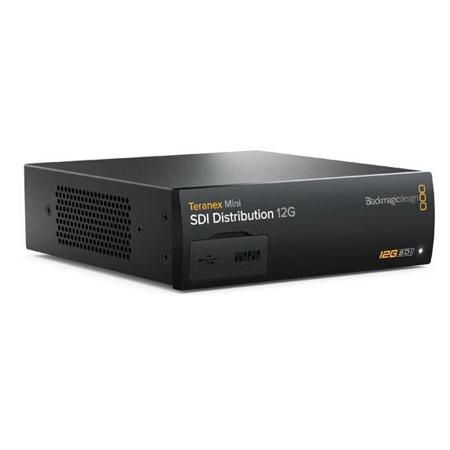

Blackmagic Design Teranex Mini SDI Distribution 12G Converter
See all Blackmagic Design items

Blackmagic Design Teranex Mini SDI Distribution 12G Converter

SKU: BMTERMINSDI MFR: CONVNTRM/EA/DA
Be the first to review this itemAsk a Question
$605.00
OR
$101/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Distribute your SDI signal to 8 devices using this Teranex Mini SDI Distribution 12G converter.
  • Enjoy real-time conversion with automatic switching between SD, HD, 2K, and 4K formats.
  • Ensure stable performance with re-clocking on all 12G-SDI outputs for reliable video feeds.
  • Easily configure settings via USB or Ethernet, and optionally with a front panel control.
  • This video format converter supports a wide range of standards, including SMPTE 259M & ST 2082.
  • Power this format converter via PoE+ (power over Ethernet) for flexible setup options.
See More Product Details
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$31.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Blackmagic Design Teranex Mini Specifications

  • Connections: SDI Video Input

    1x 12G-SDI SD/HD/2K/4K auto switching

  • Connections: SDI Video Output

    8x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

  • Connections: Multi Rate Support

    Automatic switching between SD/HD/2K and 4K

  • Connections: Updates and Configuration

    USB or Ethernet

  • Connections: Re-Clocking

    Yes

  • Standards 1

    SD Format Support: 525/29.97 NTSC, 625/25 PAL
    HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25
    Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60
    4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

  • Standards 2

    SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082
    SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI
    SDI Video Sampling: 4:2:2 and 4:4:4
    SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    SDI Color Space: YUV & RGB

  • Software Control

    Mac OS X and Windows software upgrade via USB and Ethernet

  • Internal Software Upgrade

    Via included updater application

  • Settings Control

    Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

  • Power Supply

    1x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 to 240V AC Input

  • Power Over Ethernet

    Can be powered via 48V DC using PoE+ (power over ethernet)

  • Power Consumption

    18W

  • Operational Voltage Range

    90 to 240V AC

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Relative Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x L)

    1.73 x 5.51 x 6.69" / 44 x 140 x 170mm

  • Weight

    20.46oz / 580g

  • UPC Code

    9338716003505

About Blackmagic Design Teranex Mini

Take your video distribution to the next level with the Teranex Mini SDI Distribution 12G Converter. This advanced device is designed to distribute a single SDI video input to as many as eight SDI outputs, making it an ideal solution for multi-device setups.

Equipped with the latest multi-rate 12G-SDI connections, this converter offers full SDI re-clocking. This innovative feature allows the converter to automatically switch between all SD, HD, and Ultra HD formats, supporting resolutions up to 2160p60. This ensures optimal video quality, regardless of the format of your source material.

The Teranex Mini SDI Distribution 12G Converter is perfect for distributing a single SDI signal to multiple devices. Whether you're connecting to monitors, switchers, or encoders, this converter ensures seamless and efficient distribution.

In a world where video quality is paramount, the Teranex Mini SDI Distribution 12G Converter stands out as a top-tier solution for all your SDI distribution needs. Experience the difference in video distribution with this high-performance, professional-grade converter.

Blackmagic Design Teranex Mini Features

  • High-performance SDI distribution converter for multi-device setups
  • Features the latest multi-rate 12G-SDI connections for optimal video quality
  • Full SDI re-clocking for automatic switching between SD, HD, and Ultra HD formats
  • Supports resolutions up to 2160p60 for crystal clear video output
  • Ideal for distributing a single SDI signal to monitors, switchers, and encoders
  • Professional-grade solution for all your SDI distribution needs

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Distribute your SDI signal to 8 devices using this Teranex Mini SDI Distribution 12G converter.
  • Enjoy real-time conversion with automatic switching between SD, HD, 2K, and 4K formats.
  • Ensure stable performance with re-clocking on all 12G-SDI outputs for reliable video feeds.
  • Easily configure settings via USB or Ethernet, and optionally with a front panel control.
  • This video format converter supports a wide range of standards, including SMPTE 259M & ST 2082.
  • Power this format converter via PoE+ (power over Ethernet) for flexible setup options.

What's in the box:

  • Blackmagic Design Teranex Mini SDI Distribution 12G Converter
  • Software SD Card
  • Blackmagic Design 3 Year Limited Warranty
