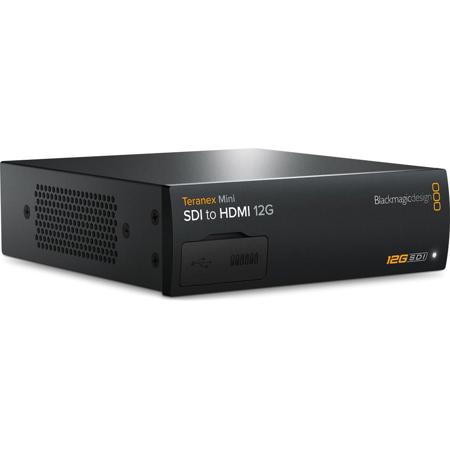

Blackmagic Design Teranex Mini SDI to HDMI 12G Converter

SKU: BMTXMSDIHDMI MFR: CONVNTRM/AA/SDIH
Earn VIP Reward Points

Key Features

  • Seamlessly convert SDI to HDMI 12G for high resolution video monitoring and reliable format conversion.
  • Enjoy real-time conversion with this format converter, perfect for live broadcasts and on-the-spot edits.
  • This portable design supports a broad range of formats, ensuring compatibility with your video equipment.
  • Experience stable performance with re-clocking, maintaining signal integrity for professional video workflows.
  • Simplify your setup with automatic SD, HD, and 4K switching, making video format conversion a breeze.
  • Utilize balanced analog audio outputs for superior sound quality alongside your HDMI video output.
See More Product Details
Slight Delay?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$31.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?SCOTT S : SDI to LG CX 48"

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Teranex Mini Specifications

  • SDI Video Input

    1 x 12G-SDI SD/HD/2K/4K auto switching

  • SDI Video Output

    1 x 12G-SDI loop output

  • HDMI

    1 x HDMI 2.0 type A connector with support for 2160p60

  • Analog Audio Output

    2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output

  • AES/EBU Audio Input

    4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for timecode output

  • Multi Rate Support

    Automatic switching between SD/HD/2K and 4K

  • Updates and Configuration

    USB or Ethernet

  • Re-clocking

    Yes

  • SD Format Support

    525/29.97 NTSC, 625/25 PAL

  • HD Format Support

    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

  • 2K Format Support

    2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25

  • 4K Format Support

    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M

  • SDI Video Rates

    SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI

  • SDI Video Sampling

    4:2:2 and 4:4:4

  • SDI Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • SDI Color Precision

    4:2:2 and 4:4:4

  • SDI Color Space

    YUV and RGB

  • SDI Auto Switching

    Automatically detects SD, HD or 12G-SDI

  • HDMI Format Support

    525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p2

  • HDMI Color Space

    REC 601, REC 709

  • HDMI Color Precision

    YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K

  • Software Control

    Mac OS X and Windows software upgrade via USB and Ethernet

  • Internal Software Update

    Via included updater application

  • Basic Setting Control

    Mini Switches, USB and Ethernet via free software utility

  • Optional Front Panel Control

    Front mounted Smart Panel with LCD, rotary knob and six settings buttons

  • Power Supply

    1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input

  • Power Over Ethernet

    Can be powered via 48V DC using PoE

  • Power Consumption

    15 Watts

  • Operational Voltage Range

    90 - 240V AC

  • Operating Temperature

    0 to 40 C (32 to 104 F)

  • Storage Temperature

    Minus 20 to 45 C (-4 to 113 F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    5.51 x 1.75 x 6.69" (14cm x 4.45cm x 17cm)

  • Weight

    1.33lb (0.6kg)

  • UPC Code

    9338716003246

About Blackmagic Design Teranex Mini

Experience the power and versatility of the Teranex Mini SDI to HDMI 12G Converter by Blackmagic Design. This durable, high-quality converter is designed to efficiently convert 12G-SDI to HDMI, supporting a comprehensive range of video formats including SD, HD, 6G, and 12G-SDI rates.

With its built-in down converter, this reliable device seamlessly adapts to your HDMI monitor, selecting the most compatible format for optimal performance. This feature makes it an ideal solution for transforming HDMI televisions into SDI broadcast monitors, as well as for establishing connections to video projectors.

In addition to video conversion, the Teranex Mini SDI to HDMI 12G Converter also offers audio de-embedding capabilities. It can extract audio from your video signals and convert it to balanced analog or AES/EBU formats, ensuring high-quality sound to accompany your visuals.

Moreover, this user-friendly converter includes a timecode output feature, providing precise synchronization for your video projects. Whether you're working in broadcasting, filmmaking, or video production, the Teranex Mini SDI to HDMI 12G Converter offers a versatile and efficient solution for your conversion needs.

Blackmagic Design Teranex Mini Features

  • High-quality 12G-SDI to HDMI converter by Blackmagic Design
  • Supports a wide range of video formats including SD, HD, 6G, and 12G-SDI rates
  • Built-in down converter for optimal compatibility with HDMI monitors
  • Audio de-embedding capabilities for balanced analog or AES/EBU formats
  • Includes timecode output for precise video synchronization
  • Ideal for transforming HDMI televisions into SDI broadcast monitors and connecting to video projectors

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly convert SDI to HDMI 12G for high resolution video monitoring and reliable format conversion.
  • Enjoy real-time conversion with this format converter, perfect for live broadcasts and on-the-spot edits.
  • This portable design supports a broad range of formats, ensuring compatibility with your video equipment.
  • Experience stable performance with re-clocking, maintaining signal integrity for professional video workflows.
  • Simplify your setup with automatic SD, HD, and 4K switching, making video format conversion a breeze.
  • Utilize balanced analog audio outputs for superior sound quality alongside your HDMI video output.

What's in the box:

  • Blackmagic Design Teranex Mini-SDI to HDMI 12G
  • Software SD Card
  • Blackmagic Design 3 Year Limited Warranty
