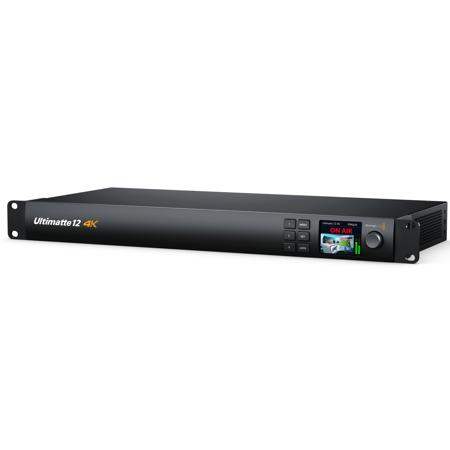

Blackmagic Design Ultimatte 12 4K Advanced Real Time Compositing Processor

SKU: BMULTMT4K MFR: ULTMKEY12/C/4K
Earn VIP Reward Points

Key Features

  • Create stunning composites with Ultimatte 12 4K's real-time video processing.
  • Enjoy wide compatibility with multiple video formats using this video switcher.
  • Achieve seamless broadcast quality keying for professional live productions.
  • Utilize low latency processing for smooth, synchronized video output every time.
  • Simplify your setup with easy configuration and a user-friendly software interface.
  • Get reliable performance with advanced SDI connections for stable video signals.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Ultimatte 12 Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    8

  • SDI Video Outputs

    9

  • SDI Video Loop Outputs

    7, Reclocked SD, HD, Ultra HD for correspondinginputs.

  • SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G.

  • Video Input Re-Sync

    On all inputs.

  • Reference Connections

    1x BNC In, 1x BNC Out.
    Tri-Sync or Black Burst.

  • GPIO

    DE15

  • Ethernet

    Up to 10Gb/s for device control and loading stills into MediaPool.

  • Computer Interface

    1x USB-C 3.0 for device configuration and softwareupdates.

Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • SDI Compliance

    SMPTE259M, SMPTE292M, SMPTE296M, SMPTE424M, SMPTE425M levelA andB, SMPTE2081-1, SMPTE2081-10, SMPTE2082-1and SMPTE2082-10.

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709, REC 2020.

  • Multiple Rate Support

    Auto detection of SD, HD, 6G-SDI and 12G-SDI.

Composite Sources

Jump to...
  • Foreground

    1x 12G-SDI In with Loop Out

  • Background

    1x 12G-SDI In with Loop Out
    Still from Media Pool

  • Background Matte

    1x 12G-SDI In with Loop Out
    Internal Window
    Still from Media Pool

  • Garbage Matte

    1x 12G-SDI In with Loop Out
    Internal Window
    Still from Media Pool

  • Holdout Matte

    1x 12G-SDI In with Loop Out
    Internal Window
    Still from Media Pool

  • Layer

    1x 12G-SDI In with Loop Out
    Still from Media Pool

  • Layer Matte

    1x 12G-SDI In with Loop Out
    Internal Window
    Still from Media Pool

Composite Outputs

Jump to...
  • Fill

    2x 12G-SDI

  • Matte

    2x 12G-SDI

  • Program

    2x 12G-SDI

  • Talent

    2x 12G-SDI

Monitor

Jump to...
  • Monitor In

    1x 12G-SDI for monitor cascade

  • Monitor Out

    1x 12G-SDI
    For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Media Pool

Jump to...
  • Background Still Image Formats

    TGA, TIFF, BMP, PNG, JPG.

  • Background w/Alpha Still Image Formats

    TGA, TIFF, BMP.

  • Layer Image Still Image Formats

    TGA, TIFF, BMP, PNG, JPG.

  • Layer with Alpha Still Image Formats

    TGA, TIFF, BMP.

  • Garbage Matte Still Image Formats

    TIFF, BMP, PNG, JPG.

  • Holdout Matte Still Image Formats

    TIFF, BMP, PNG, JPG.

  • Media Pool Memory

    6GB non-volatile internal storage.

Displays

Jump to...
  • Displays

    Built in 2.2" color display for device name, video preview, video standard audio meters, status andmenus.

Control

Jump to...
  • Front Panel

    2.2" color display, 3 preset buttons, 3 menu buttons andspinknob.

  • Control Connection

    Network or direct Ethernet connection to a computer running Ultimatte Software Control or UltimatteSmartRemote4.

  • Software Control

    Ultimatte Software Control supported on Mac or Windows computers.

  • Hardware Control Panel

    Ultimatte Smart Remote 4

  • Custom Control

    Ethernet protocol and GPIO pin out included in theUltimatte instruction manual.

Software

Jump to...
  • Software Updates

    Using USB-C or Ethernet connection to Mac orWindowscomputers.

  • Configuration

    Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Operating Systems

Jump to...
  • Operating Systems

    Mac 11.0 Big Sur, Mac 12.0 Monterey or later.
    Windows 10, 64-bit. Windows 11.

Power Requirements

Jump to...
  • Power Supply

    2x Internal 100-240V AC, 50/60Hz

  • Power Usage

    54W

Physical Installation

Jump to...
  • Physical Installation

    1 rack unit height.

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing.

Physical

Jump to...
  • Dimensions

    19 x 9.2 x 1.74" (48.26 x 23.36 x 4.41cm)

  • Weight

    7.28 lbs (3.3kg)

  • UPC Code

    9338716007626

About Blackmagic Design Ultimatte 12

After a comprehensive upgrade, the Ultimatte 12 emerges as the pinnacle of real-time compositing processors, setting a new industry standard for creating photorealistic live broadcast graphics. With its state-of-the-art algorithms and refined color science, the Ultimatte 12 excels in delivering unparalleled edge handling, superior color separation, and exceptional color fidelity. Its advanced spill suppression capabilities ensure that even the most challenging dark shadows and transparent objects, such as windows, are handled with precision.

Designed to elevate live broadcasting to cinematic heights, the Ultimatte 12 allows for seamless integration of talent into any environment, whether it's for weather forecasts, sports commentary, news segments, or entertainment shows. By adding an Ultimatte 12 to each camera in a multi-angle setup, you eliminate the inconsistencies often found in green screens and simplify the keying process, as each Ultimatte can be fine-tuned to its respective camera's perspective.

The Ultimatte 12's built-in frame stores are a game-changer for live virtual environment generation, enabling the use of pre-rendered inputs without the need for live video sources. This feature not only enhances the realism of augmented reality foreground objects but also facilitates on-set previsualization in film production, allowing actors and directors to interact with the scene in real-time.

For those with space constraints, the Ultimatte 12 is a revolutionary tool that enables the creation of expansive virtual sets within confined areas. By loading pre-rendered still frames from a 3D modeled set into the Ultimatte 12's frame stores, producers can achieve photorealistic backgrounds that surpass traditional virtual set capabilities, all without external equipment and at an accessible price point.

The Ultimatte 12 4K model boasts the world's most advanced chroma keying technology, equipped with 12G-SDI connections that support both HD and Ultra HD workflows. Its automatic scene analysis feature simplifies the keying process with one-touch operation, intelligently adjusting over 100 parameters to produce high-quality keys swiftly and effortlessly.

Innovative layer compositing modes in the Ultimatte 12 allow for the addition of translucent objects and broadcast graphics, preserving the integrity of tinted colors and ensuring realistic interactions between talent and virtual elements. The device's adeptness at retaining difficult colors, such as a bright yellow dress against a green screen, is unmatched, thanks to its sophisticated flare, edge, and transition processing.

The Ultimatte 12's wide range of video connections caters to various compositing needs, from foreground and background inputs to holdout and garbage mattes, as well as layer inputs for superimposing additional images. Its redundant power supplies, USB-C connectivity for firmware updates, and compatibility with Ultimatte Software Control ensure reliability and ease of use in high-pressure broadcast environments.

With the Ultimatte 12 4K model, you are future-proofed for the evolution of video formats, from SD to 8K, thanks to its advanced 12G-SDI connections that accommodate high frame rate Ultra HD through a single BNC connection. This ensures that the Ultimatte 12 4K remains compatible with a vast array of SDI-equipped devices and supports all HD and Ultra HD formats up to 2160p60, making it a versatile and indispensable tool for professional broadcasters and content creators seeking to push the boundaries of live production.

Blackmagic Design Ultimatte 12 Features

  • Automatic Scene Analysis for One Touch Keying
  • Add Translucent Layers and Broadcast Graphics
  • Faithfully Reproduce and Retain Difficult Colors
  • Key and Composite Images with Shadows and Transparency
  • Wide Range of Video Connections
  • Use Multiple Ultimatte Units on a Single Monitor
  • Control HDMI Cameras from SDI Switchers
  • Future Proof Models with Advanced 12GfSDI

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create stunning composites with Ultimatte 12 4K's real-time video processing.
  • Enjoy wide compatibility with multiple video formats using this video switcher.
  • Achieve seamless broadcast quality keying for professional live productions.
  • Utilize low latency processing for smooth, synchronized video output every time.
  • Simplify your setup with easy configuration and a user-friendly software interface.
  • Get reliable performance with advanced SDI connections for stable video signals.

What's in the box:

  • Blackmagic Design Ultimatte 12 4K Advanced Real Time Compositing Processor
  • Welcome Wallet with QR Code for Software
  • Blackmagic Design 1 Year Limited Warranty
