Review Summary
25.34mm x 14.25mm (Super35)
4608 x 2592
4096 x 2304 (4K 16:9)
4608 x 1920 (4K 2.4:1)
3840 x 2160 (Ultra HD)
3072 x 2560 (3K Anamorphic)
2048 x 1152 (2K 16:9)
1920 x 1080
Maximum sensor frame rate dependent on resolution and codec selected
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
15 stops
Manual
Manual
PL Mount
1 x 10.1" - 1920 x 1200
2 x 5" - 800 x 480
10.1" - TFT -LCD
5"- Integrated LCD capacitive touchscreen
Automatic camera data and user data such as shot number, filenames and keywords
Touchscreen menus on 5" screen
Push button controls for settings and navigating menus
Integrated stereo microphone
Integrated mono speaker
Multiple 1/4" - 20 UNC thread mounting on top of camera and on handle
Integrated rod mounts compatible with 15mm Light Weight Support standard
4608 x 2592
CinemaDNG RAW 3:1 - 180 MB/s
CinemaDNG RAW 4:1 - 135 MB/s
3840 x 2160
Apple ProRes 444 XQ - 312.5 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920x1080
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5
Cfast 2.0
Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4096 x 2304, 4608 x 1920, 3072 x 2560, and 2048 x 1152
Apple ProRes 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
1 x 12G-SDI 10-bit 4:2:2. 1 x 3G-SDI down converted for external monitoring
1 x 12G-SDI
1 x BNC Reference Input
1 x BNC Timecode Input
1 x BNC Timecode Output
2 x XLR analog switchable between mic and line levels
Phantom power support
1/4" jack output for headphone monitoring
2 channel
1 x 2.5mm LANC for Rec Start/Stop
USB 2.0 Mini-B port for software updates
SMPTE 292M, SMPTE 424, Draft SMPTE 2081-1, Draft SMPTE 2082-1
48 kHz and 24 bit
DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows
Blackmagic Media Express software
Blackmagic Disk Speed Test
Blackmagic Camera Setup
Mac OSX 10.9 Mavericks
Mac OS X 10.10 Yosemite or later
Windows 7 or Windows 8
1 x 4-pin XLR port for external power or battery use
1 x 12V output using 4-pin XLR for powering external accessories such as EVF
Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates
0 to 40 C (32 to 104 F)
Minus 20 to 45 C (-4 to 113 F)
0% to 90% non-condensing
13.1 x 8.8 x 6" (33.3cm x 15.24cm x 22.4cm)
16.69lb (7.6kg)
9338716003161

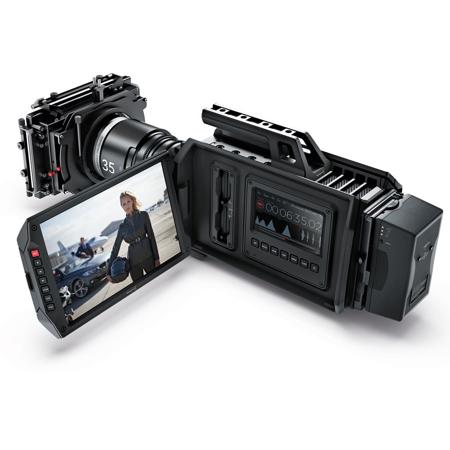

URSA camera body with the PL lens mount and large 4.6K Super 35 image sensor with 15 stops of dynamic range and the film industry PL lens mount installed. URSA PL is ideal when you need to use feature film industry PL mount lenses for the most cinematic optics available!
The Blackmagic Design URSA - Capture Epic Einemmatic 4.6K Images with 15 Stops of Dynamic Range
Introducing Blackmagic URSA, the world's first high end digital film camera designed to revolutionize workflow on set. Built to handle the ergonomics of large film crews as well as single person use, URSA has everything built in, including a massive 10 inch fold out on set monitor, a new user upgradeable 4.6K Super 35 image sensor with a massive 15 stops of dynamic range, 12G-SDI, internal dual RAW and ProRes recorders and more. Because the sensor and lens mount assembly can be changed, you can upgrade to the latest sensor technology in the future and keep your investment in the camera body!
Professional Digital Film Camera - Designed for Feature Film, Television Commercials, and More
Blackmagic URSA is designed to be used on high end feature films, commercials, episodic television production, documentaries, electronic news gathering, music videos and more. When used on jobs with a large crew you can easily dress the camera with high quality cinema lenses, rails, follow focus, matte boxes and more. With built in scopes for exposure, focus and audio levels, it's easy for DOPs to get perfect results every time. The dedicated screen for camera assistants lets them check and update camera parameters independently of the DOP. If you're shooting solo then the large fold out on set monitor, built in scopes and internal recorder means you don't need any extra on set equipment because it's all built into the camera. That's a whole film set of equipment built into the one extremely portable design!
Rethinking Camera Design - All Your On-Set Equipment Built Into One Portable Design
The Blackmagic URSA features a larger professional size that has the space for powerful cooling that allows higher frame rates while keeping the chassis cool and the fan super quiet. The machined aluminum design is incredibly strong and has been designed for large film crew use and to be field upgradable to new sensors by the user. Each area of the camera has been divided into separate DOP, camera assistant and audio engineer work stations. The DOP station features a large 10 inch fold out on set monitor and separate 5 inch screen for settings, camera status and scopes. The camera assist station features a separate screen for camera settings, status and scopes and an audio station features audio meters, controls and audio connections. The big screen means you don't need extra on set equipment so it's easy to move around quickly between shots. Simply fold in the monitor and go!
Shoot in Incredible Quality Ultra HD - Super 35 Size Sensor with 15 Stops of Dynamic Range
URSA now includes a new professional digital film 4.6K image sensor that captures a spectacular 4608 x 2592 pixels with 15 stops of dynamic range! That's larger than DCI 4K! The sensor features an incredible 15 stops of dynamic range for true digital film imaging. The wide dynamic range is dramatically better than regular video cameras or even high end broadcast cameras, so you get dramatically better images that look like true digital film. The wide dynamic range preserves detail in dark shadows as well as bright highlights so you have a wider range of brightness levels to work with when color grading in post production. The extra large Super 35 size allows for creative shallow depth of field shooting and the high resolution 12-bit lossless CinemaDNG RAW recording means you get incredible quality! You can also record HD or Ultra HD using ProRes for easy post production workflow with broadcast quality images and minimum storage requirements!
Dual Recorders for Non Stop Recording - Keep Recording Forever and Never Miss a Critical Event
Blackmagic URSA features dual recorders so you never need to stop recording to change media. That's critical if you are shooting an historical event, important interview or where you just cannot stop shooting! Simply load an empty CFast card into the second recorder and when the current card is full, the recording will continue onto the second card, allowing you to change out the full card and keep shooting! The built in recorders use new CFast card technology that allow recording up to 350 MB/s for incredible speeds, perfect for high frame rate RAW recording! Imagine shooting RAW and then playing back for the crew on the massive 10 inch screen!
URSA 4.6K PL includes the amazing 4.6K Super 35 image sensor with global shutter, up to 15 stops of dynamic range and the film industry standard PL lens mount. That's ideal when you need to use feature film industry PL mount lenses for the most cinematic optics available!
Built in On Set Monitoring - Massive 10 inch Viewfinder Screen
Say goodbye to bulky on set monitors because you get a massive fold out 10 inch screen built into Blackmagic URSA, making it the world's biggest viewfinder! The screen is super bright so it's easy to see when shooting outdoors, even in direct sunlight, plus it features an ultra wide viewing angle so you can pan and tilt to extremes and still see crystal clear images. When shooting in Ultra HD, focus becomes extremely difficult on small viewfinders, however with a massive 10 inch screen in full HD, you can see your images in amazing detail for perfect focus, framing and exposure! Because the screen tilts you can shoot down low, or high up over crowds and easily tilt the screen up or down to see your shot!
Two Extra 5" Touch Screens - Get Full Control on Both Sides of the Camera
URSA features the world's most intuitive and advanced touch screen camera user interface! There are two 5" touch screens on both sides of the camera that put your settings, controls and monitoring tools at your fingertips!
The left side gives you quick access to all major settings via a touch screen and a row of control buttons, that means you don't have to hunt through complicated menus to make changes!
The right side displays settings like format, frame rate, shutter angle and more! There is a large prominent timecode display, an animated histogram for checking levels, a scrolling audio waveform monitor with clipping indicators and a spectrum scope for helping you check and adjust focus!
Broadcast Connections - Standard Connections Eliminate Custom Cables
The Blackmagic URSA features standard broadcast connections so you don't need to worry about buying expensive custom cables! You get 12G-SDI output that can be down converted to HD or used directly at amazing Ultra HD quality. There's also a 12G-SDI input that can display return video on the 10 inch monitor when working on live events or an external video source! A separate SDI output is available for attaching external viewfinders and eye pieces. For audio, there are 2 professional XLR connections with 48v phantom power so you can use the audio industry's best quality microphones. You also get timecode in/out and a LANC connector for controlling the camera, lenses, and accessories remotely.
Broadcast Standard Power - Compatible with Industry Standard Power Supplies
URSA uses a standard 4-pin 12V to 30V XLR broadcast power connector for plugging into external power supplies. There are also mounting points and a power transfer connector for mounting third party V-Mount and Anton/Bauer gold mount back plates and batteries onto the rear of the camera itself. This means you can integrate the battery as part of the camera itself. You also get a standard 4 pin XLR 12V output power connector so you can use a wide range of third party viewfinders without needing expensive custom cables. That means it's easy to integrate the camera with all of your existing gear and accessories!
Includes DaVinci Resolve Software - The Industry Standard in Color Correction and Professional Editing Included Free
Blackmagic URSA includes the full version of DaVinci Resolve software for Mac and Windows, so you get a professional editing and color correction system with your camera! For color correction of your wide dynamic range camera files, you get the full creative power of primaries, secondaries, power windows and much more! For editing you get DaVinci Resolve's new advanced editing features including a full multi layer timeline with ripple, roll, slide and slip clip trimming, multi cam, title tools and more! You can even use Resolve Live to grade live pictures direct from the camera while on set. Imagine lighting your set and color grading all at the same time! Blackmagic URSA and DaVinci Resolve mean you get a complete production and post production solution!
Changing Onset Workflow Forever
URSA is the world's first digital film camera to include all of the major production equipment you need built right in! Dedicated zones for DOPs, camera assistants, and sound recordists let everybody work together at the same time. That means crews of any size, from feature films to solo indie filmmakers, can spend more time shooting and less time setting up tons of extra gear! And while URSA includes just about everything you need built in, there's also a full set of broadcast connections and mounting points that allow you to build a custom rig for even the most extreme productions! More than a professional production camera, URSA completely changes onset workflow forever!
