Questions & Answers

Eric S : Will the thunderbolt port work with a thunderbolt-1 to Thunderbolt-3 cable connected to a PC?MICHAEL Q : I use the apple Thunderbolt 2 to Thunderbolt 3 (USB-C) Adapter and it works perfect.OSCAR D : Your device didn't work and I was not able to talk to nobody about it.
Diana M : Can I run my DSLR through this and into ZOOM before using OBS to broadcast to youtube live, for example?
Diana M : Can I run my livestream from my DSLR into this into my computer INTO ZOOM and then out to OBS + youtube?MICHAEL Q : I'm not sure. I have used mine to go from camera to OBS and out to Zoom (via Virtual camera) for presentations.

Reviews about this item

Review Summary

2024-03-08T17:08:31

Rated 5 out of 5

help !

I buy one and haven it used , I used ones and not more . now a try connected and I can't find the software can you guys help me whit how to find the softhware Black Magic ultra studio mini thunderbolt 2 Please ! thanks

Carlos r.

2020-07-11T19:10:24

Rated 1 out of 5

I didn't like your service

You don't have any mean of communication other than this one. Your device didn't work.

OSCAR J.

2020-07-06T13:46:16

Rated 2 out of 5

Great Product but not this time

I have used their converters before with no issues. Unfortunately, this one I purchased was bricked. However, Adorama was quick to help me resolve my problem and I ended up upgrading to the Blackmagic ATEM mini instead. So all in all, it worked out great.

JASON L.

2020-06-28T12:11:59

Rated 5 out of 5

Great for streaming

Works perfectly for streaming from camera into OBS. Great product.

Matt J.

2020-06-27T09:44:04

Rated 5 out of 5

Cool for video calls surprisingly!

This is great for using your DSLR as a webcam for ultra high quality video calls. It’s impressed many people!

WILLIAM M.

2020-06-26T09:53:10

Rated 5 out of 5

Easy to use hdmi capture device.

This is a great device for any Mac user looking to stream from their thunder bolt 2 port or thunderbolt 3 port(adapter needed if using thunderbolt3). I have used these for multi shoot camcorders for online streaming. Events, church services, and game streaming. Great product and easy to use!

CHARLES L.

2020-06-23T13:44:01

Rated 5 out of 5

Small device with a big impact

Black Magic Ultra Studio Mini Recorder is just the right piece of gear for my needs in converting SDI video to a format my MacBook can use. Great device at a reasonable price.

NEIL J.

2020-06-18T08:44:17

Rated 2 out of 5

Sony A7- not so much....

Be careful if you are buying this item to use it with a Sony A7 series camera... do your research.

ACCOUNTS P.

2020-06-12T08:23:52

Rated 5 out of 5

Mini Recorder is great for its size!

Works great, with great footage!

MITCH S.

2020-06-11T05:10:01

Rated 1 out of 5

Do not recommend

Doesn't work. We tried everything but could not get it to work at all. Apparently they have had the same problem since 2012.

MILNER C.

2020-06-10T08:49:18

Rated 5 out of 5

Awesome performance from such a small device: DOWNLOAD THE LATEST SOFTWARE!

Once again Blackmagic has taken what used to require rack spaces of gear and compacted it into a device about the size of a regular pack of cigarettes. With a heavy duty case and sturdy connectors that you don't feel will let you down, even if used regularly. It was very quick easy-plug and play operation (once I had downloaded the software) on my Mac. The value in this small but powerful converter is its ability to convert EITHER HD-SDI or HDMI. The only downside is that it uses a Thunderbolt connector (NOT to be confused with DisplayPort or Lightning), and so for most Mac users, you will require an adapter to get the signal to USB-C, which can add to the end cost. I had purchased: 1 x Apple Thunderbolt 2 to Thunderbolt 3 Adapter 1 x Thunderbolt 2 (male) to Thunderbolt 2 (male) 3 Foot Connecting Patch Cable

JAMES B.

2020-06-10T08:13:50

Rated 4 out of 5

A6400 and BMD mini recorder not easy

Use this to capture video from Sony a6400, NOT easy. But it seems like to be working fine with other cameras.

ABRAHAM M.

2020-06-07T17:18:36

Rated 1 out of 5

Not working

It is not working nor recognized. It should be returned.

SEUNGHO H.

2020-06-07T08:48:02

Rated 5 out of 5

Works as Advertised

Exactly what we needed

EDDIE W.

2020-06-02T09:13:30

Rated 1 out of 5

Not Thunderbolt 3.

Product advertising and documentation doesn't make clear that the output is Thunderbolt 2, not 3. It would not work on a Mac Mini with an Apple Thunderbolt 2 to Thunderbolt 3 adapter.

DOUGLAS H.

2020-06-02T08:51:32

Rated 5 out of 5

Live Streaming connection for your DSLR!

I needed to find a device so I could use my video cameras and DSLRs for live streaming. This was what I chose and so far I am very happy with it!

Wayne B.

2020-06-02T08:26:27

Rated 1 out of 5

It might work with some Cameras, not with mine.

Didn’t work with D850

DAVID M.

2019-11-28T18:14:01

Rated 5 out of 5

Works slightly to well

Works great for what it was designed for. Software is typical BM. Hard to use but very efficient. Sent it back for only one reason. Stupid thing only does 80MB per second and faster. Really?

Albert G.

2019-05-06T22:14:06

Rated 5 out of 5

Excellent!

Excellent for recording raw video

Vladimir E.

2018-09-11T08:34:41

Rated 5 out of 5

Adorama is the way to go for gear

My new Blackmagic Mini recorder has worked perfectly for my studio. Adorama had the best price and got it to me fast. Thank you!

Peter R.

2018-01-04T07:38:01

Rated 2 out of 5

Uses old and deprecated version of thunderbolt

Had to return it since it uses older thunderbolt cable to connect - which pretty much makes it a Mac-only device unless you want to invest in conversion cables to convert to another connector so it can work with a pc. Odd that it even current build of this device still utilizes a deprecated technology - especially given the promise of thunderbolt v3.

BRIAN R.

2014-05-19T21:00:00

Rated 5 out of 5

HD Video Streaming/Recording

Love the construction of the product, feels solid and well built. Required just the included software to provide access to external camera source. HDMI & HD-SDI are great for professionals.

Kevin B.

2014-03-17T21:00:00

Rated 4 out of 5

Easy and powerful well built device

Awesome device, too bad they cheap out and don't provide you with a firewire cable! Completely useless without it. Little tricky to get setup with your DSLR, had to call tech support which was fast and knowledgeable. Make sure on you Mac to go into System Preferences after you install the software and choose "Digital" vs the default Analog. Also, this won't work for old analog devices like the Canon XL2.

Brad T.

Blackmagic Design UltraStudio Specifications

  • Connections

    SDI Video Inputs: 1 x 10 bit SD/HD switchable.
    SDI Audio Inputs: 8 Channels embedded in SD and HD.
    HDMI Video Inputs: 1 x HDMI type A connector.
    HDMI Audio Inputs: 8 Channels embedded in SD and HD.
    Computer Interface: Thunderbolt

  • Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVC PRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, A pple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, U ncompressed 10-bit 4:2:2.

  • Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

  • Internal Software Upgrade

    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • SDI Compliance

    SMPTE 259M and 292M.

  • SDI Metadata Support

    RP 188/SMPTE 12M-2 and closed captioning.

  • Audio Sampling

    Television rate of 48kHz and 24 bit.

  • SDI Color Precision

    8-bit & 10-bit YUV 4:2:2

  • SDI Video Sampling

    4:2:2

  • Color Space

    REC 601, REC 709

  • HDMI Video Sampling

    4:4:4, 4:2:2 & 4:2:0

  • HDMI Resolution

    Pixel for pixel HD resolution input from connected device.

  • HDMI Color Precision

    10 bit

  • Multiple Rate support

    SDI and HDMI are switchable between standard definition and high de finition.

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

  • Colorspace Conversion

    Hardware based real time.

  • HD to SD Down Conversion

    Software based down conversion during video capture.

  • HD Up Conversion

    Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.

  • Physical Installation

    Requires computer with a Thunderbolt port. Please check the Support pages to see the full system requirements.

  • Dimensions

    3.62 x .99 x 1.77"

  • Weight

    5.33 oz

  • Operating Systems

    Mac OS X 10.11 El Capitan,
    macOS 10.12 Sierra,
    macOS 10.13 High Sierra or later.
    Windows 7, 8.1 and 10, all 64-bit.
    Linux

  • Power Requirements

    Powered by Thunderbolt cable.

  • UPC Code

    9338716001846

About Blackmagic Design UltraStudio

FEATURED REVIEWS

HD Video Streaming/Recording

By Kevin B.

Love the construction of the product, feels solid and well built. Required just the included software to provide access to external camera source. HDMI & HD-SDI are great for professionals.

help !

By Carlos r.

I buy one and haven it used , I used ones and not more . now a try connected and I can't find the software can you guys help me whit how to find the softhware Black Magic ultra studio mini thunderbolt 2 Please ! thanks

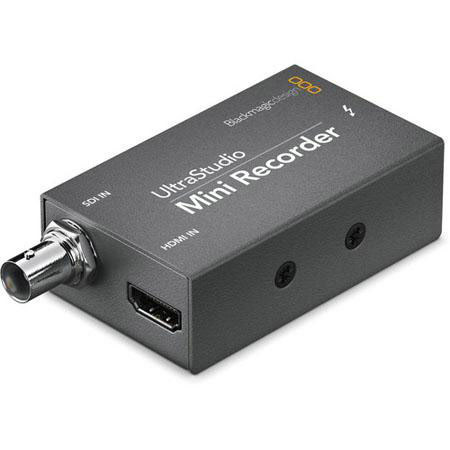

The Blackmagic Design UltraStudio Mini Recorder is an extremely affordable solution with high quality SD and HD video, all powered from the Thunderbolt connection so you just plug in and go. When you need tiny sized portable video capture and playback for your Thunderbolt laptop or desktop computer, then UltraStudio Mini is the perfect solution. The mini recorder that fits in your pocket, UltraStudio Mini Recorder is super tiny and includes just SDI and HDMI connections, plus Thunderbolt. Simply plug in and record from any SDI and HDMI device for the most incredible portable solution.

Blackmagic Design UltraStudio Features

  • The Power of Thunderbolt: Built on revolutionary Thunderbolt technology, UltraStudio has a blazingly fast 10 Gb/s connection that's up to 20 times faster than USB 2.0. That's enough bandwidth to handle the highest resolution video formats easily
  • Unmatched Quality: Now you can handle any job your client presents to you, from TVC to feature films. UltraStudio operates with both compressed and uncompressed video, so it can handle anything and you're not locked into a single codec quality
  • Works with all Video Software: UltraStudio is fully compatible with your favorite software. All UltraStudio files are open standard DPX and QuickTime format, so are compatible with all software. UltraStudio even includes a developer SDK and QuickTime API so you can develop your own custom solutions

Key Features

  • Power of Thunderbolt
  • Unmatched Quality
  • Works with all Video Software

What's in the box:

  • Blackmagic Design UltraStudio Mini Recorder
  • Media Express Software
  • 12 Month Limited Manufacturer's Warranty.
