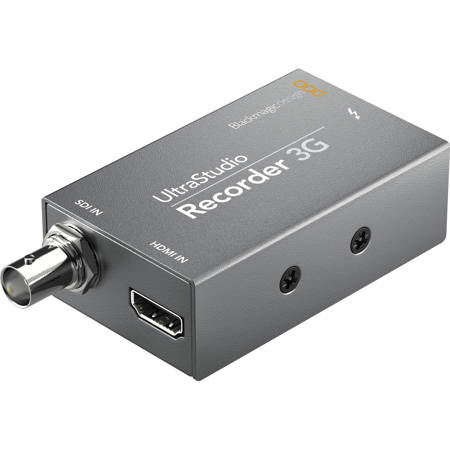

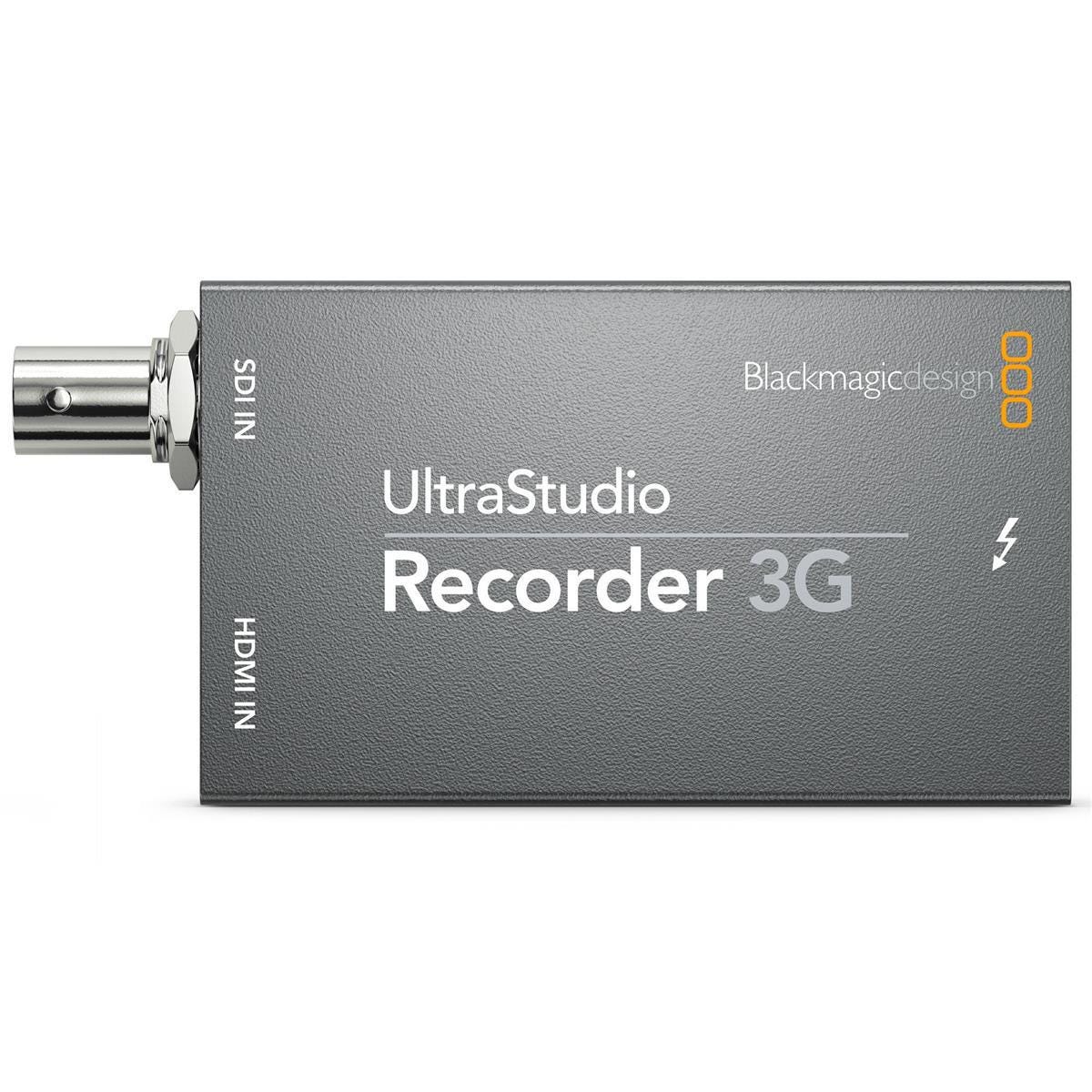

Blackmagic Design UltraStudio Recorder 3G with Thunderbolt 3

SKU: BMUSMR3

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Roy W : Can I use a Apple Thunderbolt 2 to 3 adapter to connect this to my MAC Pro?CHARLES W : I’m fairly confident you can, but they used to make a TB2 version, which I replaced with this. If you don’t need 3G (old version still does 1080p30), I can ship you my old one for the cost of that adapter, shipping included.. much cheaper😂. Find my email at calvary oceanside . org. I’m the tech director. 👍ANDREW L : No. It is a video input device not the computer to computer device
Roy W : Can I use a Apple Thunderbolt 2 to 3 adapter to connect this to my MAC Pro?C C : It requires a higher data transfer speed than Thunderbolt 2, so you’ll need a computer with thunderbolt 3.
Shopper : Does it come with a cable?KATHERINE H : NoFELICIA A : This device does not come with any cables.DEREK S : This does not come with any cables. I highly recommend you pay the extra money to get the official Apple Thunderbolt 3 cable to use with this device.ANDREW L : No it doesn’t

Reviews about this item

Review Summary

2023-09-20T11:28:06

Rated 5 out of 5

works good

Does the job wiht with my BlackMagic Pro. i've had limitted tesgtingi with this ss I recentl got it. f works best with SDI at both ends (camera and P'C) any other mix didn't' work foe me, but I had limited testing time. I've also used the Magwell equivalent which has worked well for me.

JOSEPH K.

2021-05-01T00:01:49

Rated 5 out of 5

An essential product

Exactly what I needed at the right price. It works as advertised and is essential in my live-streaming workflow.

MATTHEW Y.

2021-04-30T08:51:58

Rated 5 out of 5

Easy setup and running

Day 2 and it's working great! Super easy software install and setup. Working seamlessly with all of my hardware, great that it only has one cable in and one cable out, no extra power needs. Video quality seems great.

ANTHONY K.

2021-04-22T15:45:09

Rated 5 out of 5

Amazing Product

I'm very pleased with this product. It is very compact, and set up was straight forward. I connected it to a windows laptop with thunderbolt 3 port, and connected the video source via SDI. The video source was recognized in OBS, and streaming works perfect.

EMIL M.

2021-04-14T08:10:43

Rated 5 out of 5

Excellent Hardware - Picky with Software

The Ultrastudio Recorder 3G is an excellent piece of equipment - the only thing to note is that the correct software and drivers must be installed. If you have trouble I would suggest using an earlier version of the software after a full uninstall and restart of your PC or MAC. Once the correct version is installed it always works flawlessly.

ADAM M.

2021-04-08T08:10:36

Rated 5 out of 5

Works like a dream!

Works like a dream! Once I got it set up (I had to call customer support) - because I couldn?t figure out the drivers - it was sooo easy to make it work. Love this equipment!

KATHERINE H.

2021-03-25T13:06:39

Rated 5 out of 5

Love this device!

Way better than the previous model with TB 2

DEREK S.

2021-03-25T09:09:14

Rated 4 out of 5

Solid Device

Great Device that works well. Have used it a few times on get higher quality cameras into zoom.

SAMUEL M.

2021-03-22T07:48:56

Rated 5 out of 5

Affordable TB3 capture device

So far, totally reliable. Very happy with the 3G video coming in.

THOMAS P.

2021-03-17T08:27:31

Rated 2 out of 5

Bad audio issues

Very bad audio issues. We cannot get the audio to work and it's a known issue across the internet. I called Blackmagic and they act like it's the first time they've heard this.

SETH M.

2021-02-01T07:24:01

Rated 4 out of 5

HDMI upgrade

The device arrived as pictured, we will be installing this week

ACCOUNTS P.

2021-01-15T12:23:42

Rated 5 out of 5

Blackmagic Ultrastudio Does the Trick

Does what it is supposed to. Blackmagic makes good products.

Christopher N.

2021-01-06T07:32:37

Rated 4 out of 5

Not working like the older model did

It works fine after it gets the video source turned on/off a couple times otherwise it’s lots of static. Not like the previous model, the T2 model didn’t do thus. Not sure if this is expected since the video source equipment is older, considering exchanging for another of same model.

VANESSA R.

2020-12-02T08:20:48

Rated 5 out of 5

Great device

Great device. Very easy to setup and use.

TODD Y.

2020-11-25T10:31:48

Rated 5 out of 5

Works Seamlessly

We are using this to livestream our church services. Works seamlessly with our iMac and Livestream Studio. Very happy with it.

NATHAN C.

2020-11-25T07:10:23

Rated 4 out of 5

Good solid video capture device with a great price point.

Solid product so far with no technical issues. Thunderbolt 3 is limiting but it allows for a great price point so it's a good compromise if you have a decently new computer. Only reason why I'm not giving it 5 five stars, and this may be due to something technical issue on my end, is that I can't seem to use the device for only audio capture (ie connecting a camera that has audio running into). I tried using Resolve, Quicktime, and Audacity and unless you are capturing video you can't seem to be able to extract just an audio feed. That being said it is working great for what I needed for, which is to interface with online video conferencing software such as Zoom and Skype. Skype still has a bug in it which requires a hack in order to connect any external camera so if you are having issues connecting to Skype, google it and you will find the solution. It's not the adapter's issue. It does work straight out of the box, after installing the firmware, with Zoom, quicktime, etc.

TIMOTHY R.

2020-10-14T08:10:45

Rated 5 out of 5

As Advertised

Works as advertised. Well built. Easy to use software.

THOUSAND O.

2020-10-07T11:27:30

Rated 5 out of 5

Great hardware. Cable not included.

Super solid, just like the Thunderbolt 2 unit I used previously. I’ve tried USB capture devices from other companies but the quality and consistency of this one wins out. I do wish it came with a thunderbolt cable included, though. Even a short one would be OK. Side note: I had a strange issue in OBS when I set this up as a capture device, though that might just be the software. The capture screen would sometimes turn green, but could be easily fixed by opening up the source settings, changing the resolution, and then changing it back again.

Martim G.

2020-10-07T08:07:59

Rated 5 out of 5

High-Quality Video Capture

I got this so that I could use my RX100VA for video conferencing and it works perfectly! Super easy to download and use within minutes.

CARL H.

2020-10-06T10:24:11

Rated 4 out of 5

Cables ?

It would be nice if you let us know that we need to purchase cables with this device.

cheryl r.

2020-10-01T13:51:11

Rated 5 out of 5

Highly Recommended. Sturdy, solid, reliable.

Very solid and well built piece. Surprisingly heavy. All the connections are solid. Software works well. I would love for it to be able to display on an iPad, but it works great on the computer (Ran on a MacBook and an iMac).

CHASE S.

2020-09-25T11:15:32

Rated 5 out of 5

Hot little box to live stream your DSLR with.

It works great! Just make sure you have a Thunderbold 3 cable. It also generates a little heat but not that bad. Great for live streaming with your DSLR.

Ian W.

2020-09-22T10:34:39

Rated 4 out of 5

Good box but needs to auto-sense inputs

It does what it is supposed to do but there are two things I wish they could improve: 1) You have to select the exact input resolution and frame rate or it doesn’t work. 2) You have to go and select the input in their software (HDMI vs SDI) How about making it auto-sense these things so It’s true plug and play? AJA the competition has done this...

STEVE M.

2020-09-21T09:04:14

Rated 5 out of 5

Works as designed. Simple to use.

This new UltraStudio Recorder is a nice upgrade for USB-C Thunderbolt 3. Works like a charm. Note that the Thunderbolt cable is not included.

TOMMY P.

2020-09-21T08:25:05

Rated 5 out of 5

Blackmagic Ultrasudio Recorder 3G - thunderbolt 3

We are blown away with this! Stream quality is through the roof and much improved over Blackmagic's WebPresenter. I love that it creates a list of selectable resolution qualities to choose from and integrates just as the web presenter did but a much better price point! AMAZING - it is powered by thunderbolt 3 and does not need additional power. It did need a driver installed to be recognized (Blackmagic's desktop video 11.6) however I am really glad to have this and am ordering more for the kit!

ISAAC F.

2020-09-21T08:15:21

Rated 4 out of 5

Compatibility issues

It did not work properly with my Sony PXW-100 for GoPro. So I will be getting the Blackmagic mini cinema camera, ATEM Mini Pro, and Blackmagic Video Assist package instead. I think is will be nice to list devices that are not compatible with it.

SYLVESTER A.

2020-09-13T08:24:06

Rated 5 out of 5

Better connections

Working great and made my connections easy and clean

Stephen A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design UltraStudio Recorder Specifications

Connections

Connections

Jump to...
  • SDI Video Outputs

    1

  • SDI Rates

    270Mb, 1.5G, 3G

  • SDI Audio Outputs

    16 Channels embedded in SD/HD

  • HDMI Video Outputs

    1

  • HDMI Audio Outputs

    8 Channels embedded in SD/HD

  • Computer Interface

    Thunderbolt 3 (Mac OS, Windows and Linux)

  • Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Jump to...
  • Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

  • Internal Software Upgrade

    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

  • Software Applications

    DaVinci Resolve
    Adobe Premiere Pro CC
    Adobe Photoshop CC

  • Other supported applications

    Sony Catalyst Production Suite, Grass Valley Edius, Tools On Air Just In, Softron MovieRecorder and Mreplay, Adobe Flash Media Live Encoder, Metus Ingest, Cinegy Capture Pro, Glookast Capturer, Burst Video [REC]Marker and Webclip2Go, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server

  • Other supported applications (Contd.)

    Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika.

SDI Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • 2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B

  • SDI Metadata Support

    RP 188/SMPTE 12M-2 and closed captioning.

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit.

  • SDI Video Sampling

    4:2:2, 4:4:4

  • SDI Color Precision

    8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

  • SDI Color Space

    REC 601, REC 709 and REC 2020

  • Multiple Rate Support

    SDI video connection is switchable between SD and HD.

HDMI Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

  • HDMI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

  • HDMI Video Sampling

    4:2:2 and 4:4:4

  • HDMI Color Precision

    8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.

  • HDMI Configuration

    HDMI 2.0a supports Deep Color.

  • HDMI Color Space

    REC 601, REC 709 and REC 2020

  • Multiple Rate Support

    HDMI video connection is switchable between SD and HD.

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Hardware

Jump to...
  • Hardware Frame Buffer

    v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

Processing

Jump to...
  • Colorspace Conversion

    Hardware based real time.

  • Physical Installation

    Requires computer with a Thunderbolt 3 USB-C port.

  • Operating Systems

    Mac 10.14 Mojave, Mac 10.15 Catalina or later.
    Windows 8.1 and 10, both 64-bit.
    Linux

Power Requirements

Jump to...
  • Power Requirements

    Powered by Thunderbolt cable. Requires computer with a Thunderbolt 3 USB-C port.

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    3.62 x 1.77 x 0.98" (9.2 x 4.5 x 2.5cm)

  • Weight

    5.57oz (157.9g)

  • UPC Code

    9338716006896

6 Accessories for Blackmagic Design UltraStudio Recorder 3G with Thunderbolt 3

  • All Accessories (6)
  • Cables & Adapters (4)
  • Controllers (2)

About Blackmagic Design UltraStudio Recorder

FEATURED REVIEWS

works good

By JOSEPH K.

Does the job wiht with my BlackMagic Pro. i've had limitted tesgtingi with this ss I recentl got it. f works best with SDI at both ends (camera and P'C) any other mix didn't' work foe me, but I had limited testing time. I've also used the Magwell equivalent which has worked well for me.

An essential product

By MATTHEW Y.

Exactly what I needed at the right price. It works as advertised and is essential in my live-streaming workflow.

ultrastudio recorder

UltraStudio.

Professional Capture & Playback for Thunderbolt 3 Computers.

Now you can connect Thunderbolt 3 computers to any kind of video equipment for building high performance edit workstations, archiving from old broadcast decks, outputting broadcast graphics and even live streaming! Simply connect to the Thunderbolt 3 port to get a wide range of video and audio connections that operate in all SD, HD, Ultra HD and 4K DCI formats up to 60 frames per second! Connections include SDI, HDMI and analog video and audio with broadcast quality 10‑bit YUV and 12-bit RGB in Apple ProRes and uncompressed file formats. UltraStudio is designed to work with popular video software on Mac, Windows and Linux such as DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro, Final Cut Pro and many more.

workflow

Professional Capture & Playback For Any Workflow.

Whether you’re working on-set or in post production, UltraStudio gives you broadcast and digital cinema quality capture and playback that can be used for any workflow. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. There are even models with 12G-SDI and support for the latest HDR formats to ensure high end colorists get everything they need for monitoring to broadcast displays, HDR televisions or the latest digital cinema projectors. UltraStudio can even be used to feed SDI fill and key from RGB graphics directly from a computer to a live production switcher for amazing live broadcast graphics keying.

The Power of Thunderbolt 3™.

Built on revolutionary Thunderbolt 3™ technology, UltraStudio uses a blazingly fast single cable connection to any computer that has the bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization for the highest quality capture and playback. The UltraStudio HD Mini model is powered from the Thunderbolt connection so can run from a laptop battery without needing any power connection. UltraStudio 4K models also include an ACpower connection, perfect when working in studios. The new UltraStudio 4K Mini model even provides 45W trickle power via Thunderbolt 3 to the connected computer so it stays charged when connected.

ultrastudio

Professional Capture & Playback for Thunderbolt 3 Computers.
Now you can connect Thunderbolt 3 computers to any kind of video equipment for building high performance edit workstations, archiving from old broadcast decks, outputting broadcast graphics and even live streaming! Simply connect to the Thunderbolt 3 port to get a wide range of video and audio connections that operate in all SD, HD, Ultra HD and 4K DCI formats up to 60 frames per second! Connections include SDI, HDMI and analog video and audio with broadcast quality 10-bit YUV and 12-bit RGB in Apple ProRes and uncompressed file formats. UltraStudio is designed to work with popular video software on Mac, Windows and Linux such as DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro, Final Cut Pro and many more.

Professional Capture & Playback for any Workflow.
Whether you're working on-set or in post production, UltraStudio gives you broadcast and digital cinema quality capture and playback that can be used for any workflow. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. There are even models with 12G-SDI and support for the latest HDR formats to ensure high end colorists get everything they need for monitoring to broadcast displays, HDR televisions or the latest digital cinema projectors. UltraStudio can even be used to feed SDI fill and key from RGB graphics directly from a computer to a live production switcher for amazing live broadcast graphics keying.

The Power of Thunderbolt 3
Built on revolutionary Thunderbolt 3 technology, UltraStudio uses a blazingly fast single cable connection to any computer that has the bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization for the highest quality capture and playback. The UltraStudio HD Mini model is powered from the Thunderbolt connection so can run from a laptop battery without needing any power connection. UltraStudio 4K models also include an ACpower connection, perfect when working in studios. The new UltraStudio 4K Mini model even provides 45W trickle power via Thunderbolt 3 to the connected computer so it stays charged when connected.

Warranty Information

This product has a limited warranty of 12 months.

What's in the box:

  • UltraStudio Recorder with Thunderbolt 3
  • Blackmagic Design 1 Year Limited Warranty
