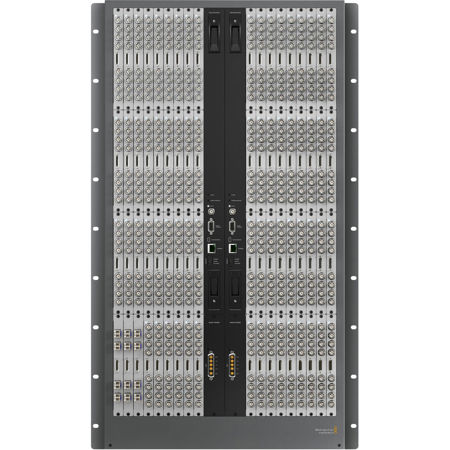

Blackmagic Design Universal Videohub 288 Full Router, 288 Crosspoints, No Redundant Power Supply

SKU: BMUVH288FR MFR: VHUBUV/0A2/288
Earn VIP Reward Points

Key Features

  • Seamlessly route up to 288 SDI/HD-SDI video sources with this versatile Videohub router.
  • Enjoy multi-rate support for SD, HD, and 3G-SDI, ensuring compatibility with various video formats.
  • Easily control your video matrix via Ethernet, Smart Control, or Master Control over IP network.
  • Ensure signal integrity with SDI re-clocking on all 288 SDI outputs for broadcast-quality video.
  • Configure and update your Videohub effortlessly through USB 2.0 or RJ45 Ethernet connections.
  • Integrate with existing systems using up to 288 bidirectional RS-422 deck control ports.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Universal Videohub 288 Specifications

Connections

Connections

Jump to...
  • SDI Video Input

    Up to 288 x SDI/HD-SDI, 3G-SD I and ASI
    Can be BNC SDI or optical fiber SDI

  • SDI Video Output

    Up to 288 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI

  • Reference Signal

    1x Black Burst or Tri-level Sync input for all SD, HD and Optical connections

  • Multi Rate Support

    Auto detection of SD, HD or 3G-SDI
    Simultaneous routing of 2K, HD, SD video and DVB-ASI

  • Updates

    USB 2.0 high speed (480Mb/s) interface

  • Device Control

    Up to 288 bidirectional Sony compatible RS-422 deck control ports via breakout cable

  • Router Control

    Use either RJ45 Ethernet, Smart Control or Master Control shared over IP network

  • Router Configuration

    RJ45 Ethernet for Videohub configuration and USB 2.0 for IP settings only

  • ASI Support

    Yes

  • RS-422 Router Control

    1x Input for controlling router crosspoint switching

  • Reclocking

    On all SDI outputs

Standards

Jump to...
  • SD Format Support

    525i29.97 NTSC, 625i25 PAL

  • HD Format Support

    720p23.98, 720p24, 720p25, 720p29.97
    720p30, 720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25
    1080p29.97, 1080p30, 1080p50
    1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25
    1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • 2K Format Support

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITUR BT.601

  • SDI Video Rates

    SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD-SDI and 3G-SDI HD and 2K SDI

  • SDI Video Sampling

    4:2:2 and 4:4:4

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Color Precision

    4:2:2 and 4:4:4 10 bit

  • SDI Color Space

    YUV or RGB

  • SDI Auto Switching

    Automatically selects between SD-SDI, HD-SDI, 3G-SDI and DVB-ASI on each input so that each input can be running a different television standard

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M

Software

Jump to...
  • Internal Software Upgrade

    Via included firmware updater application

  • Software Control

    Router control included free for Windows and Mac

  • Operating Systems

    Mac 10.10 Yosemite, Mac 10.11 El Capitan or later
    Windows 8.1 or Windows 10

Power Requirements

Jump to...
  • Power Supply

    Redundant power supply options are available. GPI connector for connecting external alarms

  • Power Fail Protection

    Router connections preserved and restored instantly at power on independently of host computer

Environmental

Jump to...
  • Operating temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage temperature

    -20 to 45 deg. C (-4 to 113 deg. F)

  • Relative Humidity

    0% to 90% non-condensing

General

Jump to...
  • Physical Installation

    18 rack unit size. Less than 6" deep

  • Dimensions

    18.98 x 31.45 x 5.94" (48.21 x 79.88 x 15.09cm)

  • Weight

    51.8 lbs (23.50kg)

About Blackmagic Design Universal Videohub 288

Rack frame lets you add up to 72 BNC SDI or optical fiber SDI interfaces plus a single 72 x 72 or dual 288 x 288 crosspoint cards and up to two power cards. Add a single crosspoint for affordability or add dual crosspoint and power cards for full redundancy. Includes removable fan tray and fans.

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Seamlessly route up to 288 SDI/HD-SDI video sources with this versatile Videohub router.
  • Enjoy multi-rate support for SD, HD, and 3G-SDI, ensuring compatibility with various video formats.
  • Easily control your video matrix via Ethernet, Smart Control, or Master Control over IP network.
  • Ensure signal integrity with SDI re-clocking on all 288 SDI outputs for broadcast-quality video.
  • Configure and update your Videohub effortlessly through USB 2.0 or RJ45 Ethernet connections.
  • Integrate with existing systems using up to 288 bidirectional RS-422 deck control ports.

What's in the box:

  • Blackmagic Design Universal Videohub 288 Full Router
  • Universal Videohub 288 Crosspoint Card
  • 72x Universal Videohub SDI Interface Cards
  • Universal Videohub Power Supply
  • Removable Fan Tray and Fans
  • SD Card with Software and Manual
  • Blackmagic Design 3 Year Limited Warranty
