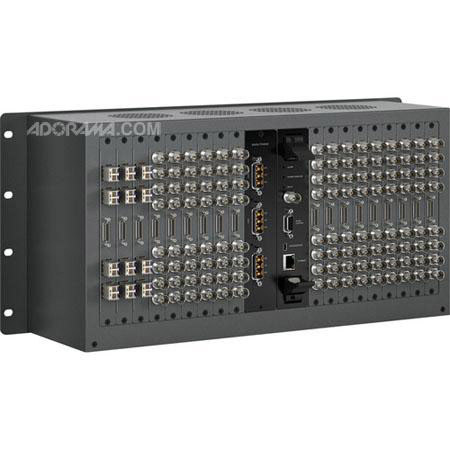

Blackmagic Design Universal Videohub 72,Up to 72 x SDI/HD-SDI
See all Blackmagic Design items

Blackmagic Design Universal Videohub 72, Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI

SKU: BMUVH72
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Blackmagic Design Videohub 12G Router, 20 Inputs and 20 Outputs
$2,635.00
undefined undefined: Picture 1 regular
Blackmagic Design Videohub 12G Router, 40 Inputs and 40 Outputs
$4,395.00
undefined undefined: Picture 1 regular
Blackmagic Design ATEM 4 M/E Constellation 4K PLUS Live Production Switcher
$14,295.00
undefined undefined: Picture 1 regular
Blackmagic Design Videohub 12G Router, 120 Inputs and 120 Outputs
$14,295.00
undefined undefined: Picture 1 regular
Blackmagic Design Ultimatte 12 8K Advanced Real Time Compositing Processor
$7,879.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Blackmagic Design Universal Videohub 72,Up to 72 x SDI/HD-SDI Specifications

  • SDI Video Input

    Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fiber SDI

  • SDI Video Output

    Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI

  • Multi Rate Support

    Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI

  • Device Control

    Up to 72 bidirectional Sony compatible RS-422 deck control ports via breakout cable

  • Router Control

    Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network

  • Router Configuration

    Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network

  • RS-422 Router Control

    1 x input for controlling router crosspoint switching

  • Updates

    USB 2.0 high speed (480Mb/s) interface

  • Re-clocking

    On all SDI outputs

  • Reference Input

    Blackburst and TriSync for SD, HD and 2K

  • SD Format Support

    625/25 PAL and 525/29.97 NTSC

  • HD Format Support

    1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60

  • 2K Format Support

    2048 x 1556/23.98/24/25

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601

  • SDI Video Sampling

    4:2:2 and 4:4:4

  • SDI Video Rates

    SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI

  • SDI Color Precision

    4:2:2 and 4:4:4 10 bit

  • SDI Color Space

    YUV or RGB

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Auto Switching

    Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard

  • Software Control

    Router control included free for Windows and Mac OS X

  • Firmware Upgrade

    Via included firmware updater application

  • Installation

    5 rack unit size. Less than 6 inches deep

  • Power Supply

    Redundant power supply options are available. GPI alarm for connecting external alarms

  • Power Fail Protection

    Router connections preserved and restored instantly at power on independently of host computer

1 Accessories for Blackmagic Design Universal Videohub 72, Up to 72 x SDI/HD-SDI, 3Gb/s SDI and ASI

  • All Accessories (1)
  • Batteries & Power Supply (1)
Blackmagic Design Universal Videohub 450W Power Card
Blackmagic Design Universal Videohub 450W Power Card
$395.00
Recommended

About Blackmagic Design Universal Videohub 72,Up to 72 x SDI/HD-SDI

Universal Videohub 72 is a fully scalable 3G/HD/SD and deck control routing switcher. Add either regular copper SDI or optical fiber SDI interface cards as you need, up to a 72 x 72 SDI size router. The Universal Videohub 72 rack frame is only 5 RU and 6 inches deep and can support a single 72 x 72 crosspoint card and a single power supply card.

You get full auto standard detection, re-clocking, 3 Gb/s SDI support, 72 x 72 deck control, ethernet/serial control and more. Universal Videohub 72 is a fantastic medium sized router that lets you grow. When you're ready to upgrade, all SDI interface cards, crosspoint and power supply cards can be installed into the larger Universal Videohub 288 chassis!

Blackmagic Design Universal Videohub 72,Up to 72 x SDI/HD-SDI Features

  • Build it Yourself: Universal Videohub ships unpopulated, without any cards plugged in, so you are free to build your router any way you want!
  • 24/7 Broadcast Reliability: Universal Videohub is the router you need for true 24/7 reliability because its card based design lets every electronic component be easily replaced in the rare event of failure
  • True Multi Fault Redundancy: Universal Videohub 288 also offers true multiple fault redundancy, where different faults in both crosspoint cards can be handled
  • SDI Re-Clocking: Videohub also includes built in SDI re-clockers on each SDI input which regenerate the SDI video signal. Every inch of video cable from your SDI video devices degrades the SDI signal
  • Simultaneous SD, HD or 3 Gb/s Video: Videohub makes it easy to run Standard Definition and High Definition equipment now and add 3 Gb/s SDI equipment in the future
  • World's Highest Quality 3 Gb/s SDI: With the exciting new 3 Gb/s SDI connections built in, Videohub allows twice the SDI data rate than normal HD-SDI
