Blackmagic Design Videohub 12G Router, 80 Inputs and 80 Outputs
SKU: BMV8012G MFR: VHUBSMAS12G08080
Earn VIP Reward Points
Key Features
- Manage 80x80 12G-SDI connections with this Blackmagic Videohub for seamless video routing.
- Enjoy high resolution video switching with auto SD, HD, and Ultra HD format detection.
- Utilize the built-in LCD to monitor real-time video, plus easy menu and router settings.
- Control via Ethernet using Videohub software, plus Mac/Windows compatibility included.
- Ensure reliable connection with SDI reclocking on all outputs for pristine signal quality.
- Rack-mountable design integrates easily into any professional video production environment.
FREE 2-Day Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$229.99
3 Year
$274.99
4 Year
$369.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Blackmagic Design Videohub 12G
Blackmagic Videohub 12G
The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.
Eliminates Complex Cable Mess
Blackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically! You don't need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs. This means monitors can view any source in the studio! You get total flexibility to handle constant change or even emergencies. It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms. Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher!

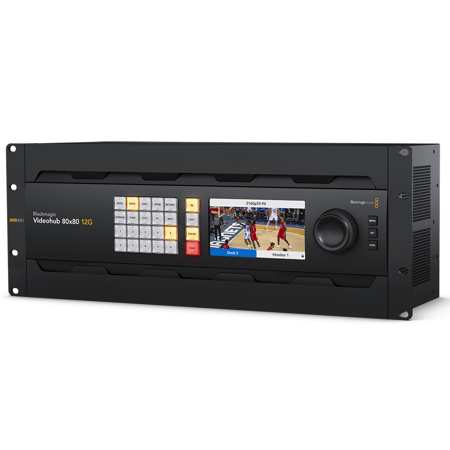

Blackmagic Videohub 80x80 12G
Massive 80x80 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.
Change Router Crosspoints Visually!
With a built in LCD, Blackmagic Videohub 12G can show you live video of all your router inputs! This means you can see all router inputs as live video before you change a route. There are also labels displayed below the live video to make it easy to identify the input you are viewing. What this means is you can scroll up and down the router sources in alphabetical order and see each input as live video, even if the inputs are different video standards. Imagine scrolling through your connections while viewing them as live video on the LCD! Plus in portable equipment racks where space is limited, the visual routing means you can see video inputs without adding an external SDI monitor.

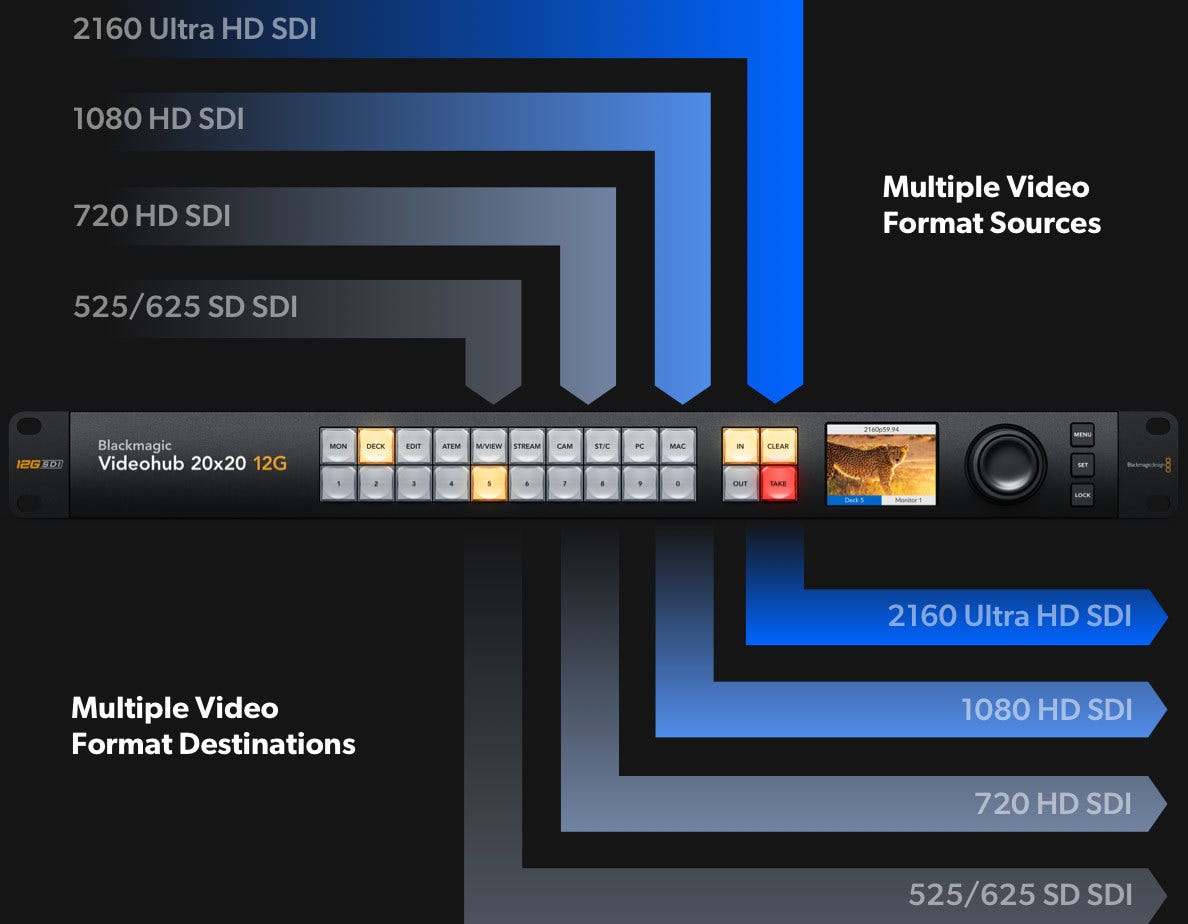

Advanced 12G-SDI for SD, HD and Ultra HD Routing
All models of Blackmagic Videohub 12G feature advanced 12G-SDI connections which are multi rate so they support any SD, HD and Ultra HD video format up to 2160p60 and will connect to any SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment. Plus Blackmagic Videohub 12G also supports routing any video standard on the same router at the same time.
Features Full SDI Re‑Clocking
Videohub includes built in SDI re-clocking on every 12G-SDI input. SDI re-clocking regenerates the video signal for maximum video quality. This is extremely important because longer video cables degrade the signal. With SDI re-clocking all of the SDI devices in your studio receive a regenerated signal with improved jitter performance.
Customize Router Control with the Developer SDK
Videohub includes a free software development kit so developers and system integrators can easily add protocol support for integration into broadcast automation systems. Plus all Videohub routers use a simple text based protocol thats easy to learn. This makes it very simple to create custom control solutions from all computer platforms and even embedded hardware such as Raspberry Pi and Arduino. The protocol can even be used with a Telnet app so you can experiment with controlling the router before you start coding! Plus the protocol is the same one used for the Videohub Software Control so it's well tested and includes all the features needed for complex control apps.
Videohub Features Better Image Quality
Supports Multiple Formats
When you need to work on global events then you need to stay updated with the latest technology and television standards. Videohub gives you support for all 525SD and 625SD, 720HD and 1080HD, and the Ultra HD video standards. Plus you can connect multiple video standards simultaneously!
Embedded Audio for Audio and Video
The SDI standard includes up to 32 channels of embedded audio included with the SDI video signal. The advantage to embedded audio is that it all connects with a single BNC cable and all audio remains perfectly synchronized to the video. Plus all modern SDI equipment supports embedded SDI audio!
Deeper Bit Depth and Color Precision
Videohub is designed to support the highest quality video. 10-bit is the most commonly used standard as colors can be represented more accurately than 8-bit video. You can route 4:2:2 8-bit or 10-bit video in any standard, and it even works with 4:4:4 12-bit SDI up to 2160p30 for feature film!
Features
- Massive mixed format 80x80 12G-SDI video router.
- Zero latency 12G-SDI supports SD, HD and Ultra HD up to 2160p60.
- Built in control panel with direct entry buttons and spin knob control.
- LCD monitor with live video and labels for visual routing.
- SDI re-clocking on all 12G-SDI inputs.
- Works with Videohub Master Control Pro and Videohub Smart Control Pro control panels.
- Supports Videohub Software Control for Mac, Windows and iPad.
- Includes free SDK for integration into broadcast automation systems.
- 2 x 100 - 240V AC power connections for redundancy.
- Ethernet for remote control from external hardware or software control panels.
- Localized for 13 popular languages.
Warranty Information
This product has a limited warranty of 36 months.
