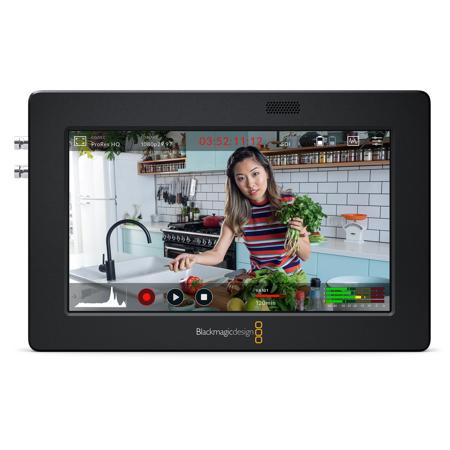

Blackmagic Design Video Assist 3G 5" Recorder Monitor

SKU: BMVIDEOA53G MFR: HYPERD/AVIDA03/5
Earn VIP Reward Points

Key Features

  • Capture stunning footage with the 5" Blackmagic Video Assist 3G recorder monitor.
  • Enjoy Full HD 1920x1080 resolution on this portable on-camera video monitor.
  • Record ProRes & DNxHD formats via SD card using this versatile video recorder.
  • Use HDMI/SDI inputs/outputs for flexible connectivity with your video equipment.
  • Get precise scopes like Waveform & Histogram for accurate video monitoring.
  • Lightweight design at 14.46 oz makes it perfect for on-the-go video production.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : I know it’s a 1080p monitor but can it record 4k or is the recording also limited to 1080p?
Shopper : Why Did You Choose This?SHIMA F : reputable name brand in a sea of options. Nice features.RAYMOND D : It's just what I needed.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Video Assist 3G Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    1x Micro BNC

  • SDI Video Outputs

    1x Micro BNC

  • SDI Rates

    270Mb, 1.5G, 3G

  • HDMI Video Inputs

    1

  • HDMI Video Outputs

    1

  • Analog Audio Inputs

    None, embedded audio only.

  • Analog Audio Outputs

    1x 3.5mm headphone jack.

  • Built in Speaker

    Mono

  • Screen Dimensions

    5" 1920 x 1080.

  • Screen Brightness

    300nits

  • SDI Audio Inputs

    16 channels embedded via SDI

  • SDI Audio Outputs

    16 channels embedded via SDI

  • HDMI Audio Inputs

    8 channels embedded via HDMI

  • HDMI Audio Outputs

    8 channels embedded via HDMI

  • Remote Control

    None

  • SD Interface

    1x UHS-I SD slot.

  • Storage Type

    SDXC UHS-I and SDHC UHS-I SD cards.
    Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

  • Computer Interface

    1x USB Type-C for initial setup, software updates and Video Assist Utility software control.

SDI Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

  • SDI Metadata Support

    HD RP188

  • Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit.

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • Multiple Rate Support

    SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.

HDMI Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

  • HDMI Color Precision

    10-bit

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

  • Media

    1x UHS-I SD for HD recording.

  • Media Type

    SDXC UHS-I and SDHC UHS-I SD cards.

  • Supported Codecs

    ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.

Control

Jump to...
  • Recorder Control

    Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.

  • External Control

    SDI and HDMI start/stop, timecode run.

Software

Jump to...
  • Software Included

    Blackmagic Video Assist Operating System

  • Scopes

    Waveform, RGB Parade, Vector, Histogram.

  • Viewing Modes

    Scopes with picture in picture or picture overlay and opacity control.

  • Operating Systems

    Mac 10.14 Mojave, Mac 10.15 Catalina or later.
    Windows 8.1 and 10.

Power Requirements

Jump to...
  • Power Supply

    1x External 12V power supply.
    Compatible with Sony NP-F style batteries. (batteries not included)

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    5.83 x 1.44 x 3.54" (14.8 x 3.6 x 9cm)

  • Weight

    14.46 oz (409g)

  • UPC Code

    9338716006407

Related Articles & Videos

Know a Canon EOS Camera Shooter? Here Are the Gifts They Hope to Receive

Know a Canon EOS Camera Shooter? Here Are the Gifts They Hope to Receive

Someone shooting with a Canon camera is committed to photography. Choosing a high-end camera such as a Canon model proves that their love for photography is here to stay, regardless of whether they make a living out of it or keep it as a beloved hobby. As a result, you really need to do your homewor...
Read more

27 Accessories for Blackmagic Design Video Assist 3G 5" Recorder Monitor

  • All Accessories (27)
  • Batteries & Power Supply (8)
  • Cables & Adapters (7)
  • Ball Heads (1)
  • Brackets & Mounts (4)
  • Headphones (5)
  • Transmitters & Receivers (1)
  • Grips & Handles (1)

About Blackmagic Design Video Assist 3G

customize

Introducing Blackmagic Video Assist.

Blackmagic Video Assist is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator built in 3D LUTs, with supported formats up to 1080p60.

5

Blackmagic Video Assist 5" 3G

This model supports video formats up to 1080p60 and has a large 5" LCD with focus peaking, zebra and false color. Connections include 3G‑SDI and HDMI. This model includes a single SD Card recorder for ProRes recording. Other features include WFM, vector, histogram and RGB parade scopes plus 3D LUTs!

7

Blackmagic Video Assist 7" 3G

The larger 7" model includes all the features of the 5" model, but has a much larger screen. This model has 2 SD Card slots so recording can continue when a card becomes full. There are also 2 mini XLR audio inputs with phantom power so you can connect and record direct from microphones.

Transforms Camera Usability with Video Assist.

Traditional cameras are designed for shoulder mounted operation, so are a compromise. Hours spent leaning into a viewfinder for long tripod mounted shoots can be tough! Video Assist will transform your shooting style with an on-board rigged screen. It's much more comfortable using a screen rigged to a position best suited for a shooting setup. Plus you get better situational awareness for the operator, assistant or director. With both 5" and 7" models, you choose the size of a rigged monitor that suits you best. Plus you're also adding fantastic features such as focus zoom, focus peaking, zebras, histogram, false color, scopes, frame markers, frame guides, touch screen and more!

Customize Your Touchscreen Tools & Features.

With large and bright 5 and 7" touchscreens, Video Assist makes it incredible easy to frame shots and accurately focus. The touchscreen displays critical information while you’re shooting including the timecode, transport control, audio meters and a histogram for exposure. You can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs and more. 3D LUTs support allows monitoring shots with the desired color and look, plus you can even "bake in" the LUT if you want to record it into the file. If you're using Blackmagic RAW, the 3D LUT is only added into the metadata so it can be disabled in post production.

Dual Media Recorders for Uninterrupted Recording.

Video Assist uses commonly available SD card media, so you can record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards. The larger Video Assist 12G 7" model even includes 2 SD card slots so you can swap out any full cards even during recording, allowing infinite length recording. Standard SD cards or the faster UHS-II cards are perfect for broadcast because they are small, high speed and affordable.

Dual Media Recorders for Uninterrupted Recording.

With the Blackmagic Video Assist 3G 5" Recorder Monitor, you're not just getting a portable monitor, but also a professional-grade recorder, a versatile scope, and an exceptional camera viewfinder solution. This innovative device is designed to enhance the quality of your recordings with its superior codecs and large monitor that can be easily added to any SDI or HDMI camera.

The Blackmagic Video Assist stands out with its user-friendly design, featuring four built-in scopes, advanced focus assist features, a tally indicator, and integrated 3D LUTs. The 3G models support video formats up to 1080p60, making it an ideal choice for digital cinema, broadcast testing, and live production.

This high-quality recorder monitor is incredibly versatile, capable of performing hundreds of tasks. It can be added to your camera rig to provide a large screen viewfinder equipped with modern record codecs, focus assist features, and 3D LUTs. The Video Assist also serves as an ultra-portable scope that lets you test equipment in broadcast and live production, ensuring your video levels are correct and all your gear is functioning properly.

The Blackmagic Video Assist 3G 5" model supports video formats up to 1080p60 and features a large 5" LCD with focus peaking, zebra, and false color. It includes 3G-SDI and HDMI connections and a single SD Card recorder for ProRes recording. Other features include WFM, vector, histogram, and RGB parade scopes, plus 3D LUTs.

This durable device transforms traditional camera usability with its on-board rigged screen, providing a more comfortable shooting experience. It offers better situational awareness for the operator, assistant, or director. With both 5" and 7" models available, you can choose the size of a rigged monitor that suits your needs best.

The Video Assist features large and bright 5 and 7" touchscreens, making it incredibly easy to frame shots and accurately focus. The touchscreen displays critical information while you're shooting, including timecode, transport control, audio meters, and a histogram for exposure. You can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs, and more.

The Video Assist uses commonly available SD card media, allowing you to record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards. This versatile recorder monitor is an ideal upgrade for cameras, with its bright display that's larger than the tiny displays found on consumer cameras. It's also a great solution for professional cameras as it can upgrade older broadcast cameras to modern file formats used on the latest editing software.

With both HDMI and SDI inputs, the Blackmagic Video Assist 3G 5" Recorder Monitor can connect to any consumer camera, broadcast camera, or even DSLR cameras. Experience the difference in quality and functionality with this innovative device.

Blackmagic Design Video Assist 3G Features

  • High-quality 5" LCD monitor with 1920 x 1080 resolution for clear and detailed images
  • Integrated ProRes recorder for easy, professional-grade recording
  • Versatile device with built-in scopes, focus assist features, and 3D LUTs
  • Durable design with HDMI and SDI interfaces for connectivity to other equipment
  • User-friendly touchscreen interface with customizable overlays for optimal control
  • Supports commonly available SD card media for convenient and uninterrupted recording

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning footage with the 5" Blackmagic Video Assist 3G recorder monitor.
  • Enjoy Full HD 1920x1080 resolution on this portable on-camera video monitor.
  • Record ProRes & DNxHD formats via SD card using this versatile video recorder.
  • Use HDMI/SDI inputs/outputs for flexible connectivity with your video equipment.
  • Get precise scopes like Waveform & Histogram for accurate video monitoring.
  • Lightweight design at 14.46 oz makes it perfect for on-the-go video production.

What's in the box:

  • 5 " Full HD 3G Video Assist
  • Universal Power Supply with International Adapters
  • Blackmagic Design 1 Year Limited Warranty
