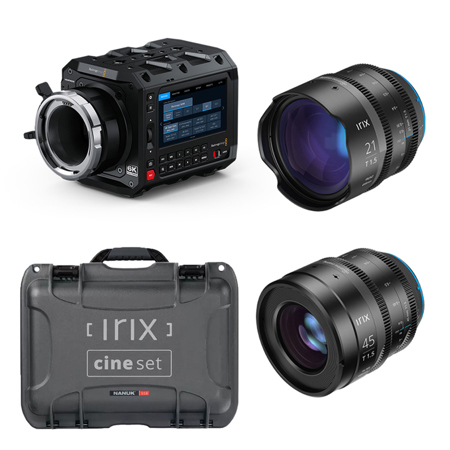

Blackmagic Design PYXIS 6K Cinema Camera Kit with IRIX 21mm and 45mm T1.5 Cine Lens for PL Mount

SKU: BMYXPLXLNSKT MFR: PYXIS-PL-IRIX-LENS-KIT
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the PYXIS 6K cinema camera's full-frame sensor.
  • Achieve cinematic low light performance with the camera's impressive dual native ISO.
  • Create professional films using the included IRIX cine lenses with precise PL mount.
  • Record in Blackmagic RAW for ultimate control over image quality in post-production.
  • Enjoy flexible shooting with frame rates up to 120fps in 1080HD for smooth slow motion.
  • Use the touchscreen LCD for intuitive camera control and monitoring your video.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-01-14T11:46:29

Rated 5 out of 5

Great cinema camera for pro work

The Blackmagic Pyxis is a fantastic camera with exceptional image quality and intuitive controls. It's a great tool for professional workflows and delivers stunning results. The only downside I've encountered is that the V-mount doesn't accurately read the battery percentage, which can be inconvenient during shoots. Aside from that, it's a reliable and powerful piece of equipment. Overall, highly recommended for anyone in need of a high-performance camera with just a minor drawback. !

Christopher L.

2024-12-18T08:12:26

Rated 5 out of 5

Still winning!

What a masterpiece of a camera. This camera is indeed going down in the history of Blackmagic as a turning point for camera design. It's very light and smaller than I expected. There are so many possibilities when it comes to rigging this camera. The only negative thing is the monitor placement, which could be remedied with an external monitor. I'm happy to have at least this monitor because many boxed cameras don't have one, so it's still winning!

MIKE S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design PYXIS 6K Specifications

PYXIS 6K Cine Camera: Camera Features

PYXIS 6K Cine Camera: Camera Features

Jump to...
  • Effective Sensor Size

    36 x 24mm (Full Frame)

  • Lens Mount

    PL Mount

  • Lens Control

    Iris and focus on supported lenses

  • Dynamic Range

    13 Stops

  • Dual Native ISO

    400 and 3200

  • Shooting Resolutions

    6048 x 4032 (Open Gate 3:2) up to 36 fps
    4832 x 4032 (Anamorphic 6:5) up to 36 fps
    6048 x 3200 (6K DCI 17:9) up to 48 fps
    6048 x 2520 (6K 2.4:1) up to 60 fps
    4096 x 3072 (Super 35 4:3) up to 50 fps
    4096 x 2160 (4K DCI 17:9) up to 60 fps
    2112 x 1184 (Super 16 16:9) up to 100 fps
    1920 x 1080 (1080 HD 16:9) up to 120 fps

  • Frame Rates

    Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
    Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD

  • Focus

    Auto focus available using compatible lenses

  • Iris Control

    Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses

  • Screen Dimensions

    4" 1920 x 1080

  • Screen Brightness

    1500 nits

  • Screen Type

    LCD capacitive touchscreen

  • Metadata Support

    Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files

  • Controls

    Touchscreen menus on 4 inch screen. 1x Power Switch, 1x Record Button, 1x Stills Button, 1x Scroll Wheel with push, 1x ISO Button, 1x White Balance, 1x Shutter Button, 3x software configurable Fn buttons, 1x Focus Button, 1x IRIS Button, 1x High Frame Rate (HFR) Button, 1x Zoom Button, 1x Menu Button, 1x Playback Button, 1x Next Clip Button, 1x Previous Clip Button, 1x Lock Switch

  • Timecode Clock

    Highly accurate timecode clock. Less than 1 frame drift every 8 hours

PYXIS 6K Cine Camera: Connections

Jump to...
  • Total Video Inputs

    None

  • Total Video Outputs

    1x 12G-SDI up to 2160p60
    1x Viewfinder USB-C with power, data, video and locking connector

  • Analog Audio Inputs

    1x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu).
    1x 3.5mm Stereo Input

  • Analog Audio Outputs

    1x 3.5mm headphone jack

  • Reference Inputs

    Tri-Sync/Black Burst and Timecode

  • Computer Interface

    USB Type-C for external drive recording, PTP camera control and software updates

  • Ethernet

    1x 1Gb/s RJ-45 connector supporting 10/100/1000 BASE-T

PYXIS 6K Cine Camera: Audio

Jump to...
  • Microphone

    Integrated stereo microphone

  • Built in Speaker

    1x mono speaker

PYXIS 6K Cine Camera: Media

Jump to...
  • Media

    2x CFexpress Type B card slot, 1x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording

  • Media Format

    Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

PYXIS 6K Cine Camera: Supported Codecs

Jump to...
  • Codecs

    Blackmagic RAW Constant Bitrate 3:1,
    Blackmagic RAW Constant Bitrate 5:1,
    Blackmagic RAW Constant Bitrate 8:1,
    Blackmagic RAW Constant Bitrate 12:1,
    Blackmagic RAW Constant Quality Q0,
    Blackmagic RAW Constant Quality Q1,
    Blackmagic RAW Constant Quality Q3,
    Blackmagic RAW Constant Quality Q5,
    H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

PYXIS 6K Cine Camera: Control

Jump to...
  • External Control

    Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

    iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman

PYXIS 6K Cine Camera: Storage Features

Jump to...
  • Storage Type

    1x CFexpress Type B
    1x high speed USB-C expansion port for external media

  • Recording Formats

    Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.

    Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies

  • Storage Rates

    Storage rates based on 30 frames per second.
    6048 x 4032 (6K Open Gate 3:2)
    RAW 3:1-370 MB/s
    RAW 5:1-223 MB/s
    RAW 8:1-140 MB/s
    RAW 12:1-94 MB/s
    RAW Q0-278 to 555 MB/s
    RAW Q1-186 to 444 MB/s
    RAW Q3-124 to 318 MB/s
    RAW Q5-75 to 186 MB/s

  • Storage Rates (Contd.)

    4832 x 4032 (Anamorphic 6:5)
    RAW 3:1-297 MB/s
    RAW 5:1-179 MB/s
    RAW 8:1-112 MB/s
    RAW 12:1-75 MB/s
    RAW Q0-223 to 445 MB/s
    RAW Q1-149 to 356 MB/s
    RAW Q3-100 to 255 MB/s
    RAW Q5-60 to 149 MB/s

    6048 x 3200 (6K DCI 17:9)
    RAW 3:1-295 MB/s
    RAW 5:1-177 MB/s
    RAW 8:1-111 MB/s
    RAW 12:1-75 MB/s
    RAW Q0-221 to 441 MB/s
    RAW Q1-148 to 353 MB/s
    RAW Q3-99 to 253 MB/s
    RAW Q5-60 to 148 MB/s

  • Storage Rates (Contd..)

    6048 x 2520 (6K 2.4:1)
    RAW 3:1-233 MB/s
    RAW 5:1-140 MB/s
    RAW 8:1-88 MB/s
    RAW 12:1-59 MB/s
    RAW Q0-175 to 348 MB/s
    RAW Q1-117 to 279 MB/s
    RAW Q3-78 to 199 MB/s
    RAW Q5-47 to 117 MB/s

  • Storage Rates (Contd...)

    4096 x 3072 (Super 35 4:3)
    RAW 3:1-192 MB/s
    RAW 5:1-116 MB/s
    RAW 8:1-73 MB/s
    RAW 12:1-49 MB/s
    RAW Q0-145 to 288 MB/s
    RAW Q1-97 to 231 MB/s
    RAW Q3-65 to 165 MB/s
    RAW Q5-39 to 97 MB/s

    4096 x 2160 (4K DCI 17:9)
    RAW 3:1-136 MB/s
    RAW 5:1-82 MB/s
    RAW 8:1-52 MB/s
    RAW 12:1-35 MB/s
    RAW Q0-102 to 203 MB/s
    RAW Q1-69 to 163 MB/s
    RAW Q3-46 to 117 MB/s
    RAW Q5-28 to 69 MB/s

  • Storage Rates (Contd....)

    2112 x 1184 (Super 16 16:9)
    RAW 3:1-40 MB/s
    RAW 5:1-24 MB/s
    RAW 8:1-16 MB/s
    RAW 12:1-11 MB/s
    RAW Q0-30 to 59 MB/s
    RAW Q1-21 to 48 MB/s
    RAW Q3-14 to 34 MB/s
    RAW Q5-9 to 21 MB/s

    1920 x 1080
    RAW 3:1-33 MB/s
    RAW 5:1-20 MB/s
    RAW 8:1-13 MB/s
    RAW 12:1-9 MB/s
    RAW Q0-25 to 49 MB/s
    RAW Q1-17 to 40 MB/s
    RAW Q3-12 to 29 MB/s
    RAW Q5-8 to 17 MB/s

PYXIS 6K Cine Camera: Software

Jump to...
  • Software Included

    Blackmagic OS
    DaVinci Resolve Studio for Mac and Windows including activation key
    Blackmagic Camera Setup
    Blackmagic RAW Player
    Blackmagic RAW QuickLook Plugin
    Blackmagic RAW SDK
    Blackmagic RAW Speed Test

PYXIS 6K Cine Camera: OS

Jump to...
  • Operating Systems

    Mac: Mac 13.0 Ventura, Mac 14.0 Sonoma or later
    Windows: Windows 10 and 11

PYXIS 6K Cine Camera: Power Requirements

Jump to...
  • Power Supply

    1x External 12V power supply

  • External Power Input

    1x 2-pin locking connector

  • Battery

    BP-U

  • Power

    11-19.5V

PYXIS 6K Cine Camera: Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

PYXIS 6K Cine Camera: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

PYXIS 6K Cine Camera: Physical

Jump to...
  • Dimensions

    4.69 x 4.17 x 5.94" (11.91 x 10.5 x 15cm)

  • Weight

    3.3 lbs (1.49kg)

IRIX 21mm T1.5 Cine Lens: Lens

Jump to...
  • Lens Mount

    PL Mount

  • Sensor coverage

    Full frame (43.3 mm)

  • Focal length

    21 mm

  • Aperture range

    T1.5 - T16

  • Number of iris blades

    11 (rounded shape)

  • Minimum focusing distance

    11.81" (0.3m)

IRIX 21mm T1.5 Cine Lens: Focus Ring

Jump to...
  • Rotation angle

    180 Degree

  • Gear pitch

    0.8 M

  • Number of teeth

    117

  • Distance scale

    Imperial

IRIX 21mm T1.5 Cine Lens: Aperture Ring

Jump to...
  • Rotation angle

    75 Degree

  • Gear pitch

    0.8 M

  • Number of teeth

    110

IRIX 21mm T1.5 Cine Lens: Viewing Angle

Jump to...
  • Full Frame (Horizontal)

    79.4 Degree

  • S-35mm 1.39x (Horizontal)

    65.6 Degree

  • APS-C 1.53x (Horizontal)

    57 Degree

  • APS-C 1.62x (Horizontal)

    54 Degree

  • MFT 2.0x (Horizontal)

    43.2 Degree

IRIX 21mm T1.5 Cine Lens: General

Jump to...
  • Weather sealing

    4 rubber o-rings (PL 3 rubber o-rings)

  • Front diameter

    95 mm

  • Markings

    Laser engraved, UV reactive

  • Dimensions (L x D)

    Without accessories: 3.66 x 3.74" (93 x 95mm)

  • Weight

    2.44 lbs (1.11kg)

IRIX 45mm T1.5 Cine Lens: Lens

Jump to...
  • Focal Length

    45mm

  • Aperture Range

    T1.5 - T22

  • Number of IRIS Blades

    9 Rounded Blades

  • Lens Construction

    11 Elements in 9 Groups

  • Front Filter Size

    3.39 x 0.04" (86 x 1.0mm)

  • Front Diameter

    3.74" (95mm)

  • Markings Lens Body

    Laser engraved, UV reactive

IRIX 45mm T1.5 Cine Lens: Focus Ring

Jump to...
  • Rotation Angle

    180 Degree

  • Distance Scale

    Imperial

IRIX 45mm T1.5 Cine Lens: Aperture Ring

Jump to...
  • Rotation Angle

    75 Degree

IRIX 45mm T1.5 Cine Lens: Viewing Angle

Jump to...
  • Field of View (Horizontal)

    51.4 Degree

IRIX 45mm T1.5 Cine Lens: General

Jump to...
  • Dimensions (L x D)

    4.49 x 3.82" (114 x 97mm) (without accessories)

  • Weight

    2.50 lbs (1.14kg) (without accessories)

IRIX Cine Lens Case

Jump to...
  • Color

    Black

  • Carry/Transport Options

    Handle

  • Type of Closure

    Main Compartment: Latch

  • Interior Type

    Main Compartment: Precut Foam

  • Water Resistance

    Waterproof (Material)

  • IP Rating

    Waterproof (IPX7)
    Dustproof (IP6X)

  • Material

    Exterior: Resin

  • Certification

    MIL-SPEC certified

  • Dimensions (L x W x H)

    Interior: 14.9 x 9.8 x 8.6" (37.84 x 24.89 x 21.84cm)
    Exterior: 16.9 x 12.9 x 9.3" (42.92 x 32.76 x 23.62cm)

Related Articles & Videos

Blackmagic PYXIS 12K

Blackmagic PYXIS 12K

Blackmagic's PYXIS lineup of video cameras now has a new big brother. Just announced at the NAB 2025 show in Las Vegas, Nevada, is the Blackmagic PYXIS 12K. This new camera boasts some impressive specs and customization options to make this the perfect camera for any professional videographer, inclu...
Read more
Blackmagic Design Launches the URSA Cine 12K LF as Camera Body Only

Blackmagic Design Launches the URSA Cine 12K LF as Camera Body Only

The cinema world is abuzz about the Blackmagic URSA Cine 12K LF Body, a more affordable version of its flagship model without the hefty price tag.
Read more

17 Accessories for Blackmagic Design PYXIS 6K Cinema Camera Kit with IRIX 21mm and 45mm T1.5 Cine Lens for PL Mount

  • All Accessories (17)
  • Digital Cinema Lenses (9)
  • Microphones & Audio (2)
  • Flash & Lighting (6)

About Blackmagic Design PYXIS 6K

FEATURED REVIEWS

Great cinema camera for pro work

By Christopher L.

The Blackmagic Pyxis is a fantastic camera with exceptional image quality and intuitive controls. It's a great tool for professional workflows and delivers stunning results. The only downside I've encountered is that the V-mount doesn't accurately read the battery percentage, which can be inconvenient during shoots. Aside from that, it's a reliable and powerful piece of equipment. Overall, highly recommended for anyone in need of a high-performance camera with just a minor drawback. !

Still winning!

By MIKE S.

What a masterpiece of a camera. This camera is indeed going down in the history of Blackmagic as a turning point for camera design. It's very light and smaller than I expected. There are so many possibilities when it comes to rigging this camera. The only negative thing is the monitor placement, which could be remedied with an external monitor. I'm happy to have at least this monitor because many boxed cameras don't have one, so it's still winning!

The Blackmagic Design PYXIS 6K Cinema Camera Kit with IRIX 21mm and 45mm T1.5 Cine Lenses for PL Mount is a groundbreaking solution for filmmakers seeking unparalleled customizability and cinematic quality. This kit includes the PYXIS 6K Cinema Camera, renowned for being the world's most riggable full-frame digital film camera. With its 36 x 24mm 6K sensor, the PYXIS delivers precise skin tones and rich, organic colors, making it ideal for high-end digital film production. Its versatile design allows for extensive customization, enabling you to build the perfect camera rig for any production scenario.

The PYXIS 6K features a full-frame sensor with a native resolution of 6048 x 4032, offering nearly three times the size of a Super 35 sensor. This large format sensor supports a shallow depth of field and uncropped anamorphic lens use, providing a true cinematic look. With 13 stops of dynamic range and dual native ISO up to 25,600, the camera excels in both bright and low-light conditions, ensuring stunning low-noise images. The camera supports multiple resolutions and frame rates, including up to 36 fps at full sensor resolution and 120 fps windowed, making it versatile for various shooting needs.

The camera's body is crafted from precision CNC machined aerospace aluminum, ensuring a lightweight yet robust build. It includes multiple mounting points and accessory side plates, allowing for easy configuration with cranes, gimbals, or drones. The built-in 4" high-resolution HDR touchscreen serves as a reliable monitoring tool, offering 1500 nits of brightness for clear visibility even in bright sunlight.

Complementing the PYXIS 6K are the IRIX 21mm and 45mm T1.5 Cine Lenses. The IRIX 21mm lens is a full-frame cine lens that offers a wide field of view without distortion, thanks to its carefully designed optics. Its fast T1.5 aperture allows for shooting in various lighting conditions, while the weather sealing ensures durability in any environment. The IRIX 45mm lens, equipped with 9 rounded aperture blades, delivers extraordinary image quality with smooth bokeh and minimal distortion. Both lenses feature laser UV reactive markings for enhanced visibility in low-light conditions.

The kit also includes an IRIX Cine Lens Set Case by Nanuk, known for its durability and strength. This case is designed to provide maximum protection for your lenses and filters, ensuring they remain safe during transport and storage.

Overall, the Blackmagic Design PYXIS 6K Cinema Camera Kit with IRIX Cine Lenses offers filmmakers a comprehensive package for creating stunning cinematic content across various platforms, from feature films to social media videos.

Blackmagic Design PYXIS 6K Features

  • Blackmagic Design PYXIS 6K Cinema Camera
  • 36x24mm full frame 6K 6048 x 4032 sensor
  • Open gate 3:2, full height 6:5 anamorphic and Super 35 for creating cinematic content
  • Records full resolution up to 36 fps or 120 fps windowed
  • Built-in 4" HDR 1500 nit LCD screen
  • Records Blackmagic RAW and H.264 proxies
  • Extremely fast dual CFexpress card recording
  • Ethernet or mobile data for mobile remote streaming
  • Features 12G-SDI for monitoring with status overlay
  • Professional mini XLR input with 48 volt phantom power
  • Complete streaming solution for YouTube, Facebook, Twitter and more
  • High capacity BP-U series batteries
  • IRIX 21mm T1.5 Cine Lens
  • Full-frame sensor coverage
  • 11 rounded blade iris providing beautiful bokeh and cinematic look
  • Our fastest lens on the wide end
  • Compact and lightweight construction
  • Very low lens breathing
  • Weather-sealed construction
  • Adapter ring for easy use of follow focus
  • The possibility of mounting an additional support foot in two places
  • IRIX 45mm T1.5 Cine Lens
  • Ultra HD 8K ready optics with superb image resolution
  • Close to the natural field of view of the human eye
  • Weather-sealed construction
  • Beautiful bokeh, ultra-low focus breathing

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with the PYXIS 6K cinema camera's full-frame sensor.
  • Achieve cinematic low light performance with the camera's impressive dual native ISO.
  • Create professional films using the included IRIX cine lenses with precise PL mount.
  • Record in Blackmagic RAW for ultimate control over image quality in post-production.
  • Enjoy flexible shooting with frame rates up to 120fps in 1080HD for smooth slow motion.
  • Use the touchscreen LCD for intuitive camera control and monitoring your video.

What's in the box:

  • Blackmagic Design PYXIS 6K Cinema Camera
  • IRIX Cine 21mm T1.5 Lens (PL Mount/Feet) (IL-C21-EF-I)
  • IRIX Cine 45mm T1.5 Lens (PL Mount/Feet) (IL-C45-EF-I)
  • 2x Front Cap
  • 2x Rear Cap
  • 2x 1/4" Lens Support
  • Lens Turret Dust Cap
  • Standard Plate
  • SSD Plate
  • DaVinci Resolve Studio Activation Key
  • 60W Power Supply with Locking Connector and International Adapters
  • Nanuk IRIX Cine Lens Case
  • User Manual
  • Blackmagic Design 1 Year Limited Warranty
