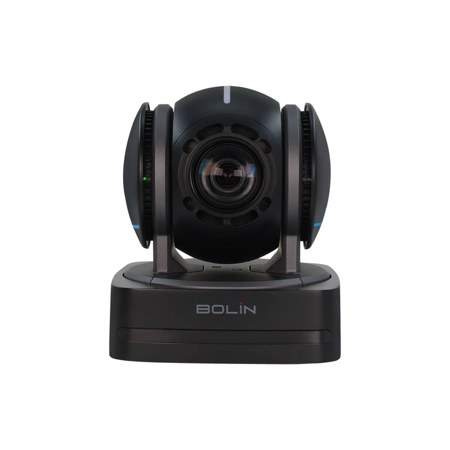

Bolin Technology B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera, Black

SKU: BNB2210 MFR: B2-210
Be the first to review this itemAsk a Question
$795.00
OR
$133/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crystal-clear Full HD video with the Bolin PTZ camera's progressive scan CMOS sensor.
  • Experience smooth, precise control with 10x optical zoom and adaptive pan/tilt speed.
  • Easily integrate this PTZ camera via HDMI, USB, or IP for flexible streaming options.
  • Perfect for conferences, offering compatibility with major video platforms via USB.
  • Enjoy versatile mounting: ceiling, wall, or tripod, for optimal placement in any room.
  • Benefit from PoE+ support for simplified setup and power delivery over Ethernet.
See More Product Details
Special Order?Estimated to Ship: 10/09/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$79.99
3-Year Adorama Protect$99.99
4-Year Adorama Protect$129.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bolin Technology B2-210 Specifications

Camera

Camera

Jump to...

  • Image Sensor

    Sony Progressive scan CMOS image sensor 1/2.8 type

  • Number of effective pixels

    1920X1080, 2.13 MP

  • Zoom

    Optical Zoom 10X, Digital Zoom 16X

  • Focal Length

    f= 4.34 mm (Wide) to 35.17 mm (Tele)

  • Aperture

    F1.85 (Wide) to F2.63 (Tele)

  • Horizontal Angle of View

    68.8 Degree (W)-8.8 Degree (T)

  • Vertical Angle of View

    39.5 Degree (W)-5.1 Degree (T)

  • Min. object distance

    10mm (Wide)

  • Min. Illumination

    0.5lux (color) ,0.1lux (black)

  • Shutter Speed

    1/1 sec to 1/10000 sec (22 steps)

  • Focus

    Auto, Manual, One Push

  • White Balance

    Auto, Indoor, Outdoor, OPW, ATW, Manual

  • Exposure

    Auto, Manual, Shutter /Iris /Brightness priority

  • Image Adjustment

    Brightness, Color(Saturation), Contrast, Sharpness, HUE

  • Back Light Compensation

    On/Off

  • E-Flip

    On/Off

  • WDR

    On/Off

  • Mirror

    Horizontal

  • Day/Night

    On/Off

  • Contrast

    Yes

  • Color Gain

    Yes

  • Color Hue

    Yes

  • Color Matrix

    Yes

  • Gamma

    Yes, 0-4

  • High Sensitivity

    Yes

  • Scene

    Default, Clear, Bright, Soft

  • Focus Zone

    Face Priority, All Area, Upper Area, Central Area, Lower Area

  • AI Face Detection Focus

    Yes

  • AI Face Auto Exposure

    Yes

  • Noise Reduction

    2D/3D, 1-255

  • S/N Ratio

    >=50db

  • OSD

    Editable

HDMI Signal System

Jump to...

  • Video Format - HDMI

    1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25

  • Color Format

    10bit(HDMI), YCbCr

  • Color Space

    YUV, RGB

  • OSD Menu Display

    YES (English, Chinese, Spanish, German, French, Russian)

USB Signal System

Jump to...

  • USB Port

    USB2.0,Type C

  • Encoder

    H.264/ /YUV2

  • USB Video Format

    1920 x1080p60/50/30/25fps ,1280X720p60/50/30/25fps

  • Compatible Integration

    UVC, UAC

  • Video Conference Compatibility

    Most video conference platform in the market

Network-IP Streaming

Jump to...

  • Video Codec

    AVC/HEVC-H.264/265 by SoC

  • Network Interface

    RJ45 port-Standard 1Gbps Ethernet

  • IP Video - 1st Stream

    1920x1080,1280x720; Frame Rate: P60/50/30/25

  • IP Video - 2nd Stream

    704x576, 640x480, 640x360, 576x480, 352x228, 320x240, 320x180; P60/50/30/25; Frame Rate P60/50/30/25

  • True Dual Output

    Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same, SDI is the same or lower than HDMI, USB is the same as IP)

  • IP Protocols

    TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP

  • Application Protocols

    RTP, RTSP, RTMP,RTMPS, SRT

  • Multi-stream

    2 Streams (Up to 20 viewers at the same time)

  • Audio Compression

    AAC-LC,G.711,G.726 Broadband Audio Encoding

  • Compatible Integration

    ONVIF2.4 (Profile S, Profile G, Profile T), VISCA Over IP

  • OSD

    Customized OSD

  • Browser Support

    Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

  • Latency - Codec

    <150ms at 1080p60

  • Bandwidth

    2-4Mbps at 1080p60

Interface

Jump to...

  • HDMI Video Output

    HDMI 1.4X1 Type A

  • IP Video Stream

    Up to 1080p60

  • Camera Control Interface

    RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control

  • Control Protocol

    VISCA. VISCA Over IP, Pelco P/D

  • LAN Port

    RJ45X1 (1000BASE-T Ethernet port)

  • USB Port

    USB2.0, Type C

  • USB Protocol

    UVC, UAC

  • Synchronization

    Internal synchronization

  • Tally Light

    Tally lamp in front, Red and Green Color

  • Dip Switch

    Camera bottom panel: 8 PIN x 2

  • Firmware Upgrade

    HEVC IP stream system upgrade via IP

  • Latency - Codec

    Upgrade via IP for camera system MCU and Encoder

  • IR ID

    ID selector for IR controller, total 3

  • Power Connector Type

    DC12V (IEC60130-10 (JEITA standard RC-5320A) TYPE4 )

  • WDR

    INPUT: RJ45, PoE+ (IEEE802.3at)

  • Audio Input

    MIC/LINE input, 3.5mm audio jack
    ACC (Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K) G.711a (Bit Rate(bps)64K; Sampling Rate(bps)8K) G.711u (Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K)

  • Audio Output

    Embedded with HDMI/USB/SDI/IP streaming, 24bit Stereo, sample rate: 44k1 to 192k, PCM24

  • Audio S/N Ratio

    >=85dB

  • Audio THD+N

    <=0.05%

  • Audio Noise (RMS)

    <=-90dB

Mechanical

Jump to...

  • Pan Movement

    Horizontal: +/-170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S)

  • Tilt Movement

    Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Speed Proportional

    Pan/Tilt Speed proportional to zoom range

  • Preset Position

    255 positions, Speed 150 Degree /s, Accuracy: 0.05 Degree 6 presets on remote controller

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • Motionless Preset

    On/Off

  • PTZ Trace Memory

    Yes, 4 (Supported via IP interface)

  • Cruise

    Yes, 4

  • Adaptive PT

    Zoom range adaptive Pan/Tilt speed

  • Pan/Tilt Direction

    Normal, Invert

  • Quietness

    NC35 or less

  • Home Position

    Support

  • Environmental

    Indoor

General

Jump to...

  • Color

    Black

  • Material

    Partial Magnesium Alloy

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Size of Tripod Screw Hole

    1/4"-20UNC with safety joint

  • Operating Temperature

    32 to 130 Degree F (-10 to +50 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    DC +/-12V, PoE+ (Compatible with IEEE802.3at)

  • Power Consumption

    Min: 10W (Static state with no movement)
    Max:13W (Fully loaded operation)

  • Dimensions (L x W x H)

    5.63 x 5.63 x 6.34" (143 x 143 x 161mm)

  • Weight

    3.30 lbs (1.5kg)

Other

Jump to...

  • UPC Code

    6973775121260

About Bolin Technology B2-210

You can elevate your visual presentations with the B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera in a sleek black finish. This cutting-edge PTZ camera, crafted with Bolin's innovative technology, combines premium features with cost-effectiveness, making it a standout choice for ProAV, Unified Communications (UC), and light broadcast applications. As part of Bolin's renowned Blue Line family, this camera boasts a compact design and wide-angle view capabilities, ensuring superior image quality and adherence to industrial video standards.

The B2-210 PTZ camera is equipped with a powerful 10x optical zoom, delivering Full HD high-quality image output through HDMI, USB, and IP video streaming. This makes it an ideal solution for huddle room spaces, video conferences, and various ProAV uses. With SRT readiness, it guarantees high-quality, secure, and low-latency video delivery over the public Internet, optimizing streaming performance even on unpredictable networks. This ensures secure streams and easy firewall traversal.

Control of the B2-210 PTZ camera is versatile and comprehensive, supporting Serial port RS422/485 and IP, along with Rest API software control. It is compatible with protocols such as VISCA, Pelco, VISCA Over IP, and ONVIF IP. The camera is powered by Bolin's latest AI-powered facial analytics engine, which enables smart focus and smart exposure for faster, more precise focusing and improved auto exposure on faces, even in complex lighting environments.

Featuring a Sony sensor, the B2-210 delivers brilliant, high-quality images in 1080p60 resolution. Its extremely quiet and smooth Pan/Tilt movements provide an accurate and effective operation experience. The camera also includes picture profile presets for quick access operation and image parameter settings. It offers IP streaming video to the network, with local HDMI video and USB streaming to PC software for both conventional video production and cloud-based video conferencing applications.

Installation is straightforward, requiring just a single network cable connection to any 1GB Ethernet network/POE device. It supports traditional serial RS232, RS422/485 via VISCA and Pelco P/D protocol, and IP remote control over the network via Visca-over-IP and Onvif IP protocol, as well as IR remote control. Stay current with firmware updates and upgrades via USB and IP interface. Additionally, the B2-210 Blue Line PTZ camera supports high-quality audio streaming, with embedded Mic-in and Line-in audio input.

Experience the future of visual presentations with the B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera, where advanced technology meets exceptional performance.

Bolin Technology B2-210 Features

  • 10X Zoom Range, 69 Degree HOV
  • 1080p60 Output over USB-C 2.0, IP, HDMI
  • Convenient access to image Color Matrix via WebUI
  • Easy adjustments to Gain and Hue for RGBCMY
  • Results instantly visible in the WebUI preview
  • Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder
  • Supports RTSP, RTMP for online video and live streaming
  • Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin
  • Full function PTZ camera IP control via Visca Over IP protocol
  • Integration with popular VMS - ONVIF for IP video control, record and management
  • AI Powered Auto Focus and Auto Exposure

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear Full HD video with the Bolin PTZ camera's progressive scan CMOS sensor.
  • Experience smooth, precise control with 10x optical zoom and adaptive pan/tilt speed.
  • Easily integrate this PTZ camera via HDMI, USB, or IP for flexible streaming options.
  • Perfect for conferences, offering compatibility with major video platforms via USB.
  • Enjoy versatile mounting: ceiling, wall, or tripod, for optimal placement in any room.
  • Benefit from PoE+ support for simplified setup and power delivery over Ethernet.

What's in the box:

  • Bolin Technology B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera (Black)
  • IR Remote Control
  • Power Adapter
  • Power Cable
  • RJ45 to RS-232/422/485 Cable Adapter
  • Bolin Technology 2 Year Limited Warranty
