Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera
See all Bolin Technology items

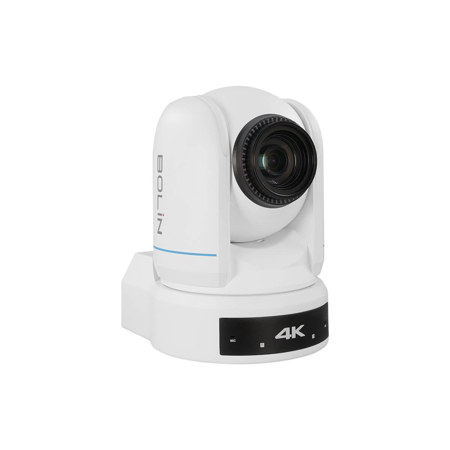

Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera

SKU: BNB941
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Bolin Technology B2-210: Picture 1 regular
Bolin Technology B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera, Black
$795.00
Bolin Technology B2-220: Picture 1 regular
Bolin Technology B2-220 Blue Line FHD HDMI/3G-SDI/USB/IP 20x PTZ Camera, Black
$995.00
Bolin Technology B6-420: Picture 1 regular
Bolin Technology B6-420 Blue Line 4K HDMI/SDI/USB/IP 20x PTZ Camera, Dark Gray
$1,395.00
Bolin Technology B7-220: Picture 1 regular
Bolin Technology B7-220 Blue Line FHD HDMI/3G-SDI/USB/IP 20x PTZ Camera, Black
$1,195.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What video output formats does the B9-418 PTZ Camera support?

The B9-418 PTZ Camera supports HDMI, 3G-SDI, Optical SDI, HDBaseT, and IP streaming for versatile video output options.

How does the camera handle low-light conditions?

The camera is equipped with a large 1-inch Exmor R CMOS sensor and a constant F2.8 aperture, providing excellent low-light sensitivity and capturing vibrant color video images in dim environments.

Can the B9-418 PTZ Camera be controlled remotely?

Yes, the camera can be controlled remotely via Visca Over IP protocol and is compatible with ONVIF for seamless video management and control.

What is the maximum zoom capability of the camera?

The camera features an 18x optical zoom with Sony's Super Resolution Zoom technology, extending to a 24x zoom range in Full HD, and up to 48x in HD with the 2X Convert Mode.

Is the B9-418 PTZ Camera suitable for live streaming?

Yes, the camera supports RTSP and RTMP protocols for online video and live streaming, with cross-browser compatibility for easy access via web browsers.

Reviews about this item

Review Summary

Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera Specifications

General

General

Jump to...

  • Available Colors

    Black, White

Camera

Jump to...

  • Image Sensor

    1.0-type back-illuminated Exmor R CMOS sensor

  • Number of effective pixels

    14.2 Megapixels

  • Picture elements

    3840 x 2160, 8.29 Megapixels

  • Lens

    Zeiss Vario-Sonnar T lens, 18X(4K), 24X(FHD)

  • Horizontal Angle of View

    64.6 Degree (Wide) - 6.1 Degree (Tele),

  • Focal Length

    f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)

  • Min. object distance

    80mm (Wide), 1000mm (Tele)

  • Aperture

    F2.8 Constant (W)-(T), 16 Steps

  • Min. Illumination

    0.5 lx (1/30 sec, 50%, High Sensitivity mode On)

  • Shutter Speed

    1/10000s to 1/8 (59.94/29.97)

  • Focus

    Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)

  • Exposure

    Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright

  • Features

    High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night

  • WDR

    YES(130dB), Shown as VISIBILITY ENHANCER in OSD

  • ND Filter

    f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)

  • Image Stabilizer

    Yes

  • Color Gain

    Yes (15 step)

  • Color Hue

    Yes (15 step)

  • Gamma

    Standard/Straight/Pattern

  • Gamma Level

    Yes (15 step)

  • Black Level

    Yes (97 step)

  • Black Gamma

    Yes (15 step)

  • Color Matrix

    Off/Standard/High Saturation/FL light

  • Noise Reduction

    On/Off (level 5 to 1 / Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

Mechanical

Jump to...

  • Pan Movement

    Horizontal: +/-175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S )

  • Tilt Movement

    Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Preset Position

    128(Speed adjustable: Up to 150 Degree /S, 6 presets on remote controller.)

  • Preset Speed

    0-5 Level Adjustable, Motionless preset

  • Preset Memory

    YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/BGain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • PTZ Trace Memory

    12 (Supported via IP interface)

  • Quietness

    49db

  • Home Position

    Support

  • Environmental

    Indoor

Interface

Jump to...

  • Video Output

    3G-SDIX2, HDMI(1.4)X1, IP, HDBaseT (Module Optional), Optical (Module Optional)

  • 4K Video Output

    Main 4K HDMI 1.4 a Type-A X1
    3G-SDIX2 or Dual Link 3G-SDI(2SI only) x2
    4K IP H.265/264

  • HD Video Output

    Main HD HDMIX1
    3G-SDI x2
    Sub HD HDMIX1 (Not available, for future Al Auto Tracking video output)

  • Color Precision

    10bit(SDI), 8bit(HDMI), YCbCr, 4:2:2

  • Color Space

    YUV

  • IP Video Stream

    Up to 4K/30 and 1080p60

  • Camera Control Interface

    RJ45X2-RS232/RS422, RJ45X1-IP Control, RJ45X1-HDBaseT, IR Remote Control

  • Control Protocol

    VISCA, VISCA Over IP, Pelco D, IP Onvif

  • LAN

    RJ45X1(1000Mb), 4K IP video streaming, System upgrade, POE(IEEE802.3bt)

  • Synchronization

    Internal synchronization

  • External Sync. Input

    BNCX1, 750, BBS (Black Burst Sync), tri-level sync supported

  • Audio I/O

    Audio input x1, Audio output x1, 3.5mm audio jack

  • Audio Output

    Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo

  • Edge Storage (Beta)

    Micro SD, Class 10, FAT32 format, Up to 128GB

  • Tally Light

    Two sets of lamps, Red Color, Front and Back

  • Dip Switch

    Back Panel: 8 PIN x 1; Video Resolution Dip X1

  • System Firmware Upgrade

    Upgrade for camera system and FPGA
    Via USB2.0 (for FW upgrade only),via IP(for encoder and FPGA)

  • Power Connector Type

    IEC60130-10 (JEITA standard RC-5320A) TYPE4
    RJ45: PoE+ (IEEE802.3bt)
    RJ45: POH(Power Over HDBaseT), HDBaseT Card Optional

  • Optional Card Slots

    YES, HDBaseT Video Card / Optical 6G-SDI Video Card

Video signal System

Jump to...

  • Video Format

    3840 x 2160/29.97p (HDMI, 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/25p (HDMI, 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/23.98p (HDMI, 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/24p (HDMI, 2 / Dual Link 3G-SDI(2SI))
    1920 x 1080/59.94p/60p (HDMI, SDI)
    1920 x 1080/59.94i/60i (HDMI, SDI)

  • Video Format (Contd.)

    1920 x 1080/50p (HDMI, SDI)
    1920 x 1080/50i (HDMI, SDI)
    1920 x 1080/29.97p/30p (HDMI, SDI)
    1920 x 1080/25p (HDMI, SDI)
    1920 x 1080/23.98p/24p (HDMI, SDI)
    1280 x 720/59.94p/60p (HDMI, SDI)
    1280 x 720/50p (HDMI, SDI)

  • Standard

    SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081 With SMPTE352 SDI Metadata Supported

  • 6G-SDI

    Original 3G-SDI can be upgraded to 6G-SDI via software, optional, purchase separately

Network

Jump to...

  • Video Compression

    MJPEG, H.264/H.265

  • IP Video Format

    True Dual Output: IP format can be set independently of SDI video format
    3840x2160p30/25/24, 1920x1080p60/50/30/25/24, 1280x720p60/50

  • Protocols

    TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, DNS, DHCP, FTP, NTP, RTMP, RTSP, SRT

  • Multi-stream

    3 data stream function will satisfy various bandwidth, frame rates and storage requirements in real time

  • Audio Compression

    AAC-LC Broadband Audio Encoding (Duplex Communicate Supported, Audio/Video synchronization)

  • OSD

    Customized OSD

  • Compatible Integration

    ONVIF2.4 (Profile S), VISCA Over IP

  • Browser Support

    Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari browsers without plugin

Physical

Jump to...

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Size of Screw Hole for Tripod

    1/4-20UNC x2

  • Operating Temperature

    32 to 104 Degree F (-10 to +40 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    12VDC, POE++(IEEE 802.3bt, Type 4, class 8 required), POH(Power Over HDBAaseT, IEEE 802.3bt)

  • Power Consumption

    Min: 25W(Static state with no movement); Max: 45Watts (Fully loaded operation)

  • Dimensions (L x W x H)

    6.49 x 7.71 x 9.72" (165 x 196 x 247mm)

  • Weight

    7.27 lbs (3.3kg)

Other

Jump to...

  • UPC Codes

    White: 6973775121765 | Black: 6973775121758

About Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera

Take your video production to the next level with the Bolin B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera, a standout in Bolin's innovative Blue-Line series. This camera is designed to deliver exceptional image quality and professional-grade features at an accessible price point, making it an ideal choice for ProAV, UC, and light broadcast applications.

At the heart of the B9-418 is a Sony 1-inch Exmor R CMOS sensor, boasting 20 million effective pixels for stunning 4K30 and Full HD 1080p60 video capture. This large, back-illuminated sensor ensures brilliant color reproduction and excellent low-light performance, perfect for capturing fast-paced, spontaneous action events. The camera's Zeiss lens, with an 18x optical zoom range enhanced by Sony's Super Resolution Zoom technology, extends to a 24x zoom in Full HD without sacrificing detail. Additionally, the 2X Convert Mode offers a maximum 48x zoom in HD, all while maintaining a constant aperture of F2.8 for superior low-light sensitivity.

The B9-418 excels in IP remote control and viewing, supporting smooth and stable video streaming up to 2160p30 with audio over an IP network. It is compatible with RTSP and RTMP protocols for seamless online video and live streaming, and its cross-browser compatibility ensures ease of use across Edge, Chrome, Firefox, and Safari without the need for plugins. The camera's full-function PTZ control via Visca Over IP protocol and integration with popular VMS through ONVIF compliance make it a versatile addition to any setup.

For secure and high-quality video transmission over the internet, the B9-418 is SRT-ready, optimizing streaming performance across unpredictable networks with low latency and secure end-to-end transmission. Its built-in Optical Image Stabilizer (OIS) minimizes the effects of blurred, shaky images caused by low-frequency vibrations, ensuring stable and high-quality video output.

The camera offers flexible video output options, including simultaneous 4K HDMI1.4, 6G-SDI/3G-SDI, and 4K IP streaming. Optional video cards for HDBaseT and Optical 6G-SDI extend its capabilities, allowing for high-quality image transmission over long distances. Control options are extensive, with support for serial port RS232, RS422/485, IP, and HDBaseT one-cable control, accommodating protocols such as VISCA, Pelco, VISCA Over IP, and ONVIF IP.

Installation is straightforward, with features like RJ45 RS232/422 control ports, PoE and POH (Power over HDBaseT) to reduce cabling, and versatile mounting options including standard, ceiling, and tripod with E-Flip function. The camera's firmware can be easily updated via USB and IP interfaces, ensuring it remains up-to-date with the latest features and performance enhancements.

The Bolin B9-418 is engineered for broadcast use, offering comprehensive image parameter settings such as Black Level, Color Matrix, Trace Memory, ND filter, and tally lights. It supports audio embedding with video output, providing audio line-in and bi-directional audio IP streaming over the network. With its quiet and smooth PTZ movements, enhanced adaptive variable speed control, and picture profile presets, the B9-418 delivers precise and effective operation, making it an indispensable tool for professional video production.

Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera Features

  • 1" CMOS sensor, Total Effective pixel: 14.4 Megapixels
  • Zeiss Vario-Sonnar T lens with 18X zoom range
  • Video Resolution: Up to 4K 2160p29.97, 1080i59.94, 1080p60
  • IP Video Resolution: Up to 2160p30, 1080p60
  • Video Output: Simultaneous 3G-SDI, 4K HDMI, 4K IP
  • HDBaseT, Optical video output via optional video card
  • Black Level, Color Matrix, Image Stabilizer
  • HTML5 Cross Browser compatibility
  • RTMP, SRT supported
  • Power: DC 12V, PoE++, HDBaseT POH

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • SRT-ready for secure, high-quality video transmission with low latency over the internet
  • Offers flexible video output options including 4K HDMI, 6G-SDI/3G-SDI, and 4K IP streaming

What's in the box:

  • Bolin Technology B9-418 4K Ultra HD HDMI/3G-SDI/IP 18x PTZ Camera
  • IR Remote Controller
  • 12VDC 2A Power Supply
  • RS422 RJ45 Adapter
  • Lens Cap
  • Bolin Technology 2 Year Limited Warranty
