Bolin Technology BC-7-4K20S-S6MNB BC-7 4K UltraHD HDBaseT 20x PTZ Camera, Black
SKU: BNBC74S6MNBB
This item is no longer available.

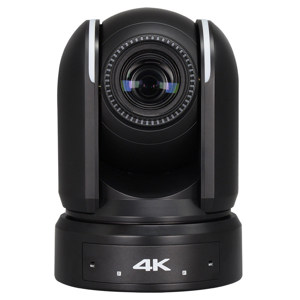

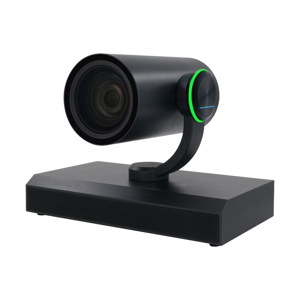

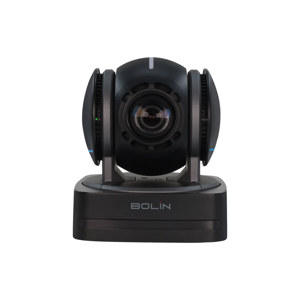

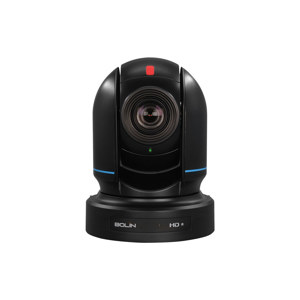

Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Bolin Technology BC-7-4K20S
Overview
Ideal for Broadcast TV, Videoconferencing, House of worship, Live sports and events, Educational environment, Corporate training, Large auditoriums. Distance learning, Courtrooms, sports stadiums and Telemedicine applications.
BC Series is Bolin first 4K PTZ camera designed for broadcast application use quipped with SONY 4K image block brilliant broadcast-quality Super-High-Resolution color image in 4K30 with excellent low-light sensitivity and full HD footage can also be captured at up to 1080p60, which is optimal for capturing fast, spontaneous action.
SRZ - Super-Resolution-Zoom expends zoom range to 30x zoom at 4K, or 40x zoom at FHD without sacrificing detail.
TRUE Dual Output PTZ camera provides simultaneous 6G/3G-SDI and remote 4k IP video streaming and control. It is a TRUE Dual Output PTZ where SDI and IP formats can be set independently.
Comprehensive image parameter settings(Black Level and Color Matrix) and Tally lights for Broadcast-friendly use and Pro AV applications.
Extremely quiet and smooth Pan/Tilt movements combined with enhanced adaptive variable and super slow speed control provides accurate and effective operation experiences.
License Upgradable from FHD to 4K. Not ready for 4K Have easy of mind to own a 1 inch CMOS FHD camera first, upgrade to 4K when you need it. Your investment is protected.
Feature
Uncompromising 4K images
Equipped with Sony 4K image block with Bolin FPGA video processing which delivers an uncompromised broadcast quality 10bit color pictures in detail-packed 4K/30p. Also the footage can be captured in Full HD 60p for fast-moving action applications. Excellent low light sensitivity brings low noise color video images in low light levels as low as 0.4lx, making it an ideal choice for low light environment like live hall and theater.
Image Stabilizer
Bolin camera's built-in image stabilizer function eliminates the effect of blurred, shaky images caused by low-frequency vibration.
Versatile Video Outputs
Flexibility in professional broadcast and AV environments with multiple choices of video outputs:
• 4K HDMI and 6G-SDI(3G-SDI) and HDBaseT
• 4K IP streaming and RTMP live streaming
Video Format
The camera video format satisfies application for Pro AV and broadcast use
• HDMI/SDI format up to 4K 2160p29.97, 1080i59.94, 1080p60
• IP video format up to 2160p30, 1080p60
• Supports cinematic 23.98/24p pictures
Control Capability
The camera provides multiple methods of controlling, which gives you capabilities of local control and remote control without distance limitations.
• RS232, RS422/485, IP, HDBaseT, IR remote controller
• Protocol supported: VISCA, VISCA-Over-IP, PELCO D, IP Onvif, HDBaseT one cable control + video
Flexible Installation
Installation is simplified in a wide range of environments via:
• RJ45 RS232/422 control port provides convience of wiring
• PoE and POH (Power over HDBaseT) to reduce cabling requirements
• Standard and ceiling mount and tripot with E-Flip function
Always Up to Date
Always up to date, Download the latest Firmware upgrade via USB and IP interface which constantly improves the camera features and performance, even for customized function upgrades.
Local Storage
Local storage using SD card up to 128GB. Compressed video of the event can be restored and reviewed from the remote site via IP.
Other Features
• Picture Profile Preset- Image parameter setting restore with presets and quick access operation
• Genlock simplifies integration with other systems
• Audio output Embedded with SDI and HDMI
Bolin Technology BC-7-4K20S Features
- BC Series is Bolin first 4K PTZ camera designed for broadcast application use quipped with SONY 4K image block brilliant broadcast-quality Super-High-Resolution color image in 4K30 with excellent low-light sensitivity and full HD footage can also be captured at up to 1080p60, which is optimal for capturing fast, spontaneous action
- Ideal for Broadcast TV, Video- conferencing, House of worship, Live sports and events, Educational environment, Large auditoriums, Corporate training, Distance learning, Courtrooms, and Telemedicine applications
- Use Sony original 1/2.5" CMOS 8.5 Megapixels image block WITH Bolin FPGA video processing delivers uncompromised broadcast quality 10bit color pictures in detail-packed 4K30p
- Optical Zoom 20x, SRZ - Super-Resolution-Zoom expands zoom range to 30x zoom at 4K, or 40x zoom at FHD without sacrificing detail. Horizontal Angle of View: 64.6 Degrees wide angle. Great low light performance at aperture of constant F2.8
- Versatile Video Outputs: 6G-SDI(3G-SDI), 4K HDMI, HDBaseT, 4K IP streaming and RTMP live streaming
- SDI high quality 10-bit video processing and SMPTE complaints for broadcast applications
- TRUE Dual Output PTZ camera provides simultaneous 6G/3G-SDI with no latency and remote 4K IP video streaming and control. True meaning, SDI and IP formats can be set independently
- Resolution supports up to 4K(2160P/29.97/23.98), 1080p60/59.94, 1080i59.94
- Black Level, Color Matrix fine tune and comprehensive image parameter setting and tally lights for Broadcast-friendly use and Pro AV applications
- Extremely quiet and smooth Pan/Tilt movements combined with enhanced adaptive variable and super slow speed control which provides accurate and effective operation
- Built-in image stabilizer function which eliminates the effect of blurred, shaky images caused by low-frequency vibration
- Bolin's built-in HDBaseT interface provides One Cable Solution, a single Cat 5e/6 cable carries uncompressed 4K video, audio, RS232/422 control and IR control, 4K IP video streaming and IP control, power(POH) for running distance up to 80-100 meters
- Always up to date, Download the latest Firmware upgrade via USB and IP interface which constantly improves the camera features and performance, even for customized function upgrades
- Local storage using SD card up to 128GB. Compressed video of the event can be restored and reviewed from the remote site via IP
- Flexible installation is simplified in a wide range of environments via: PoE and POH (Power over HDBaseT) to reduce cabling requirements. RS232/422 over RJ-45 control port provides convenience of wiring* Standard ceiling mount and tripod with E-Flip function
- Other features: Black Level, Color Matrix True WDR, ND Filter, 2D/3D NR, BLC, HLC, Flipper
- Picture Profile Preset- Image parameter setting restore with presets and quick access operation
- Audio output signal embedded with SDI and HDMI
- License Upgradable from FHD to 4K. Not ready for 4K Have easy of mind to own a 1 inch CMOS FHD camera first, upgrade to 4K when you need it. Your investment is protected
