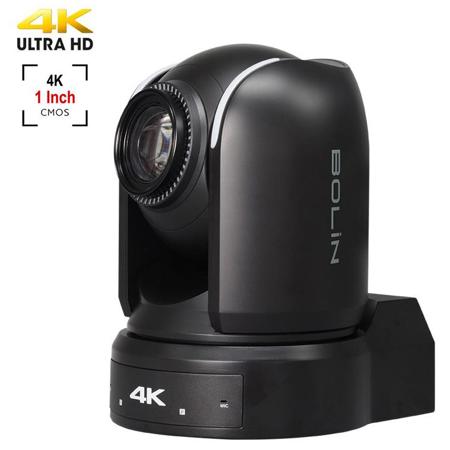

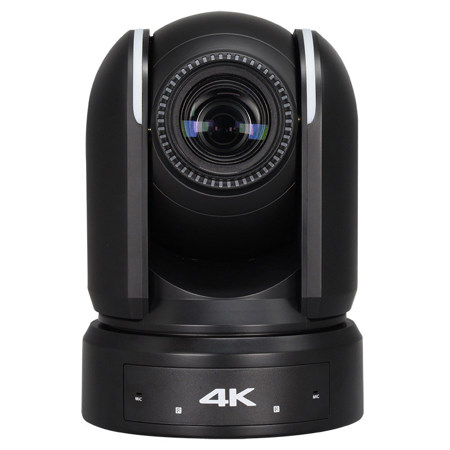

Bolin Technology BC-9-4K12S-S6MN BC-9 4K UltraHD 12x PTZ Camera with 1" Exmor R CMOS Sensor, Black

SKU: BNBC94KS6MNB MFR: BC-9-4K12S-S6MN/B
Earn VIP Reward Points

Key Features

  • Capture stunning 4K Ultra HD video with the BC-9 PTZ camera's advanced 1" Exmor R CMOS sensor.
  • Experience exceptional clarity and detail with the 12x optical zoom, perfect for live events.
  • Seamlessly integrate this PTZ camera into your existing setup with versatile HDMI and SDI outputs.
  • Remotely control pan, tilt, and zoom functions, ideal for broadcast studios and lecture halls.
  • Enjoy flexible mounting options for ceiling, wall, or tripod, adapting to any environment easily.
  • Benefit from IP streaming capabilities for remote monitoring and content delivery with this camera.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bolin Technology BC-9-4K12S Specifications

Camera
  • Camera

    12x 4K

  • Image Sensor

    1.0-type back-illuminated Exmor R CMOS sensor

  • Number of effective pixels

    14.2 Megapixels

  • Picture elements

    3840 x 2160, 8.29 Megapixels

  • Lens

    Zeiss Vario-Sonnar T lens, Optical Zoom 12x

  • Digital Zoom

    Digital Zoom 12x, with SRZ feature,18x zoom at 4K, or 24x zoom at FHD

  • Horizontal Angle of View

    64.6 Degree (Wide) - 6.1 Degree (Tele)

  • Focal Length

    f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)

  • Min. object distance

    80mm (Wide), 1000mm (Tele)ApertureF2.8 Constant (W)-(T), 16 Steps

  • Min. Illumination

    0.5 lx (1/30 sec, 50%, High Sensitivity mode On)

  • Shutter Speed

    1/10000s to 1/8 (59.94/29.97)

  • Focus

    Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto¼

  • Exposure

    Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright

  • Features

    High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night

  • WDR

    Yes(130dB), Shown as VISIBILITY ENHANCER in OSD

  • ND Filter

    Yes

  • Image Stabilizer

    Yes

  • Color Gain

    Yes (15 step)

  • Color Hue

    Yes (15 step)

  • Gamma

    Standard/Straight/Pattern

  • Gamma Level

    Yes (15 step)

  • Black Level

    Yes (97 step)

  • Black Gamma

    Yes (15 step)

  • Color Matrix

    Off/Standard/High Saturation/FL light

  • Noise Reduction

    On/Off (level 5 to 1 / Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S )

  • Tilt Movement

    Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Preset Position

    128(Speed adjustable: Up to 150 Degree /S, 6 presets on remote controller.)

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    Yes, (Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • PTZ Trace Memory

    12 (Supported via IP interface)

  • Quietness

    49db

  • Home Position

    Support

  • Environmental

    Indoor

Interface

Jump to...
  • Video Output

    6G/3G-SDIx2, HDMI(1.4)x2, IP, HDBaseT(Module Optional), Optical(Module Optional)

  • 4K Video Output

    Main 4K HDMI 1.4a Type-A x1
    6G-SDIx2 or Dual Link 3G-SDI(2SI only) x2
    4K IP H.265/264

  • HD Video Output

    Main HD HDMI x1
    3G-SDI x2
    Sub HD HDMI x1 (Not available, for future AI Auto Tracking video output)

  • Color Precision

    10bit(SDI), 8bit(HDMI), YCbCr, 4:2:2

  • Color Space

    YUV

  • IP Video Stream

    Up to 4K/30 and 1080p60

  • Camera Control Interface

    RJ45x2-RS232/RS422, RJ45x1-IP Control, RJ45x1-HDBaseT, IR Remote Control

  • Control Protocol

    VISCA, VISCA Over IP, Pelco D, IP Onvif, IP Control Client Software, NDI(Model Specific)

  • LAN

    RJ45x1(1000Mb), 4K IP video streaming, System upgrade, POE(IEEE802.3bt)

  • Synchronization

    Internal synchronization

  • External Sync. Input

    BNCx1, 75 Ohm, HD 3-level sync

  • Audio I/O

    Audio input x1, Audio output x1, 3.5mm audio jack

  • Audio Output

    Embedded with main HDMI, 24bit Stereo
    Embedded with SDI, 24bit Stereo

  • Edge Storage

    Micro SD, Class 10, FAT32 format, Up to 128GB
    (Samsung 64GB, Kingston 64GB, San Disk 64GB/128GB, Western Digital 32GB/64GB)

  • Tally Light

    Two sets of lamps, Red Color, Front and Back

  • Dip Switch

    Back Panel: 8 PIN x1; Video Resolution Dip x1

  • System Firmware Upgrade

    Upgrade for camera system and FPGA
    Via USB2.0 (for FW upgrade only),via IP(for encoder and FPGA)

  • Power Connector Type

    IEC60130-10 (JEITA standard RC-5320A) TYPE4
    RJ45: PoE+ (IEEE802.3bt)
    RJ45: POH(Power Over HDBaseT), HDBaseT Card Optional

  • Optional Card Slots

    Yes, HDBaseT/Optical SDI video card

SDI Signal System

Jump to...
  • Video Format

    3840 x 2160/29.97p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/25p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/23.98p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI))
    3840 x 2160/24p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI))
    1920 x 1080/59.94p/60p (HDMI, SDI)

  • Video Format (Contd.)

    1920 x 1080/59.94i/60i (HDMI, SDI)
    1920 x 1080/50p (HDMI, SDI)
    1920 x 1080/50i (HDMI, SDI)
    1920 x 1080/29.97p/30p (HDMI, SDI)
    1920 x 1080/25p (HDMI, SDI)
    1920 x 1080/23.98p/24p (HDMI, SDI)
    1280 x 720/59.94p/60p (HDMI, SDI)
    1280 x 720/50p (HDMI, SDI)

  • Standard

    SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081 With SMPTE352 SDI Metadata Supported

Network

Jump to...
  • Video Compression

    MJPEG,H.264/H.265

  • IP Video Format

    True Dual Output: IP format can be set independently of SDI video format
    3840x2160p30/25/24, 1920x1080p60/50/30/25/24, 1280x720p60/50

  • Protocols

    TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, DNS, DHCP, FTP, NTP, RTMP, RTSPMulti-stream3 data stream function will satisfy various bandwidth, frame rates and storage requirements in real time

  • Audio Compression

    AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)

  • OSD

    Customized OSD

  • Compatible Integration

    ONVIF2.4, VISCA Over IP

General

Jump to...
  • Body Color

    Black

  • Mount

    Ceiling mount, Wall mount, Tripot

  • Size of Screw Hole for Tripod

    1/4-20UNC x2

  • Operating Temperature

    32 to 104 Degree F (-10 to +40 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    12VDC, POE(IEEE 802.3bt), POH(Power Over HDBAaseT, IEEE 802.3bt)

  • Power Consumption

    30W(Basic configuration without HDBaseT/Optical card)
    39W ( Fully loaded operation with video card being used)

  • Dimension

    6.49 x 7.72 x 9.73" (165 x 196 x 247mm)

  • Weight

    7.27 lbs (3.3kg)

About Bolin Technology BC-9-4K12S

Enhance your broadcasting and video conferencing experience with the BC-9-4K12S-S6MN BC-9 4K UltraHD 12x PTZ Camera. This high-performance camera is perfect for a variety of settings, including Broadcast TV, live sports and events, educational environments, corporate training, large auditoriums, distance learning, courtrooms, sports stadiums, and telemedicine applications.

As Bolin's premier 4K PTZ camera, it boasts a full 1-inch Exmor R CMOS sensor, delivering broadcast-quality, super-high-resolution color images in 4K30. Its excellent low-light sensitivity ensures optimal performance even in challenging lighting conditions, making it ideal for capturing fast, spontaneous action in Full HD at up to 1080p60.

The BC-9-4K12S-S6MN camera's Super-Resolution-Zoom (SRZ) expands the zoom range to 18x at 4K, or 24x at FHD, ensuring you never sacrifice detail. It's a TRUE Dual Output PTZ camera, providing simultaneous 6G/3G-SDI and remote 4K IP video streaming and control. SDI and IP formats can be set independently, offering comprehensive image parameter settings and Tally lights for broadcast-friendly use and professional AV applications.

Experience smooth and quiet operation with its enhanced adaptive variable and super slow speed control for accurate and effective operation. The camera is license upgradable from FHD to 4K, protecting your investment and allowing you to upgrade to 4K when you're ready.

The BC-9-4K12S-S6MN camera is equipped with a Sony large, back-illuminated 1.0-type Exmor R CMOS sensor, delivering uncompromised broadcast quality color pictures in detail-packed 4K/30p. Its built-in image stabilizer function eliminates the effect of blurred, shaky images caused by low-frequency vibration.

This camera offers flexibility in professional broadcast and AV environments with multiple choices of video outputs, including main 4k HDMI and Dual Link 3G-SDI. It also supports cinematic 23.98/24p pictures and offers multiple methods of control for local and remote operation.

Installation is simplified with RJ45 RS232/422 control port, PoE+ and POH (Power over HDBaseT) to reduce cabling requirements. Stay up to date with the latest firmware upgrades via USB and IP interface, and enjoy local storage using an SD card up to 128GB.

The BC-9-4K12S-S6MN BC-9 4K UltraHD 12x PTZ Camera is your solution for high-quality, professional video capture and broadcasting.

Bolin Technology BC-9-4K12S Features

  • 9 Series is Bolin's first 4K PTZ camera equipped with a full 1" CMOS sensor for brilliant broadcast-quality Super-High-Resolution color image in 4K30 with excellent low-light sensitivity and full HD footage can also be captured at up to 1080p60, which is optimal for capturing fast, spontaneous action
  • Ideal for Broadcast TV, Video- conferencing, House of worship, Live sports and events, Educational environment, Large auditoriums, Corporate training, Distance learning, Courtrooms, and Telemedicine applications
  • 1 Inch "Exmor R" CMOS sensor, Effective pixel number: 14.4 Megapixels
  • Zeiss Vario-Sonnar T lens, Optical Zoom 12x,SRZ - Super-Resolution-Zoom expands zoom range to 18x zoom at 4K, or 24x zoom at FHD without sacrificing detail. Horizontal Angle of View: 64.6 Degrees wide angle. Great low light performance at aperture of constant F2.8
  • Versatile Video Outputs: 6G-SDI, Dual Link 3G-SDI (x2) or 6G-SDIx2, 4K HDMI Optional HDBaseT and Optical video output cards 4K IP streaming and RTMP live streaming
  • SDI high quality 10-bit video processing and SMPTE complaints for broadcast applications
  • TRUE Dual Output PTZ camera provides simultaneous 6G/3G-SDI with no latency and remote 4K IP video streaming and control. True meaning, SDI and IP formats can be set independently
  • Resolution supports up to 4K(2160P/29.97/23.98), 1080p60/59.94, 1080i59.94
  • Black Level, Color Matrix fine tune and comprehensive image parameter setting and tally lights for Broadcast-friendly use and Pro AV applications
  • Extremely quiet and smooth Pan/Tilt movements combined with enhanced adaptive variable and super slow speed control which provides accurate and effective operation
  • Built-in image stabilizer function which eliminates the effect of blurred, shaky images caused by low-frequency vibration
  • Always up to date, Download the latest Firmware upgrade via USB and IP interface which constantly improves the camera features and performance, even for customized function upgrades
  • Local storage using SD card up to 128GB. Compressed video of the event can be restored and reviewed from the remote site via IP
  • Flexible installation is simplified in a wide range of environments via: PoE and POH (Power over HDBaseT) to reduce cabling requirements. RS232/422 over RJ-45 control port provides convenience of wiring Standard ceiling mount and tripod with E-Flip function
  • Other features: Black Level, Color Matrix, ND Filter, 2D/3D NR, BLC, HLC, Flipper
  • Picture Profile Preset: Image parameter setting restore with presets and quick access operation. Audio output Embedded with SDI and HDMI
  • Audio output signal embedded with SDI and HDMI
  • License Upgradable from FHD to 4K. Not ready for 4K? Have easy of mind to own a 1 inch CMOS FHD camera first, upgrade to 4K when you are ready. Your investment is protected

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture stunning 4K Ultra HD video with the BC-9 PTZ camera's advanced 1" Exmor R CMOS sensor.
  • Experience exceptional clarity and detail with the 12x optical zoom, perfect for live events.
  • Seamlessly integrate this PTZ camera into your existing setup with versatile HDMI and SDI outputs.
  • Remotely control pan, tilt, and zoom functions, ideal for broadcast studios and lecture halls.
  • Enjoy flexible mounting options for ceiling, wall, or tripod, adapting to any environment easily.
  • Benefit from IP streaming capabilities for remote monitoring and content delivery with this camera.

What's in the box:

  • BC-9-4K12S-S6MN BC-9 Series 14.2MP 4K PTZ Camera (Black)
  • IR Remote Controller
  • Camera Power Adapter and Power Cord
  • Bag of Mounting Screw
  • RJ45 to RS232 Extension Cable
  • RJ45 to RS422 Extension Cable
  • Welcome Card
  • Bolin Technology 2 Year Limited Warranty
