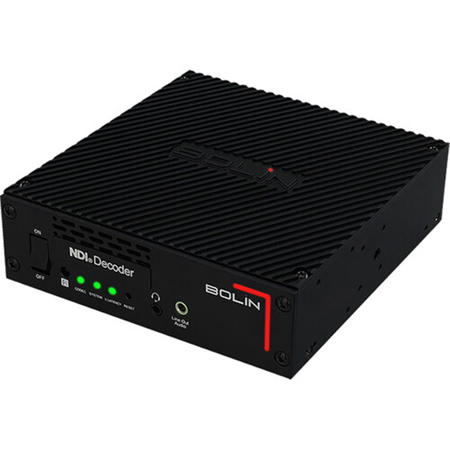

Bolin Technology EG40N NDI to 12G-SDI/HDMI 2.0 Decoder

SKU: BNEG40N MFR: EG40N
Be the first to review this itemAsk a Question
$1,395.00
OR
$117/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Decode NDI streams to 12G-SDI/HDMI 2.0 with the EG40N, ensuring high video quality output.
  • Experience low latency NDI decoding (<100ms) for seamless live streaming and broadcast workflows.
  • Utilize the EG40N's versatile connectivity with both HDMI and SDI outputs for flexible integration.
  • Enjoy wide compatibility with NDI High Bandwidth, NDI 6, and NDI HX3 for diverse applications.
  • Simplify your setup with PoE+ support, providing both power and data over a single Ethernet cable.
  • Manage and control your video streams via Bolin Restful API, streamlining your broadcast encoder setup.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bolin Technology EG40N Specifications

Codec

Codec

Jump to...

  • Decoder (Video Output)

    HDMI & SDI

  • Encoder/Decoder

    Decoder only

  • Video Codec

    NDI High Bandwidth, NDI 6 ready, NDI HX3, AVC-H.264/HEVC-H.265

  • Codec Platform

    Hardware FPGA FAST HEVC codec

  • Video Resolutions

    3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080i @60/59.94/50
    1280 x 720P @60/59.94/50/30/29.97/25

  • Color Space(HDMI)

    4K60: RGB 8bit, YUV444 8bit, YUV422 12bit, YUV420 8bit/10bit
    4K30 & below: RGB 8bit/10bit, YUV444 8bit/10bit, YUV422 12bit

  • Audio Formats

    3.5mm Jack, analog audio, stereo (unbalanced); Line in/out - audio intercom, Line out - HDMI audio output

  • Video Streaming

    1 stream

  • Latency

    NDI certified, <100ms

  • Bandwidth

    4kp60 4:2:2/12bit; 250Mbps
    1080p60 4:2:2/12bit; 80-110Mbps

  • Ecosystem Friendly

    NDI Certified, NDI High Bandwidth, NDI 6 ready, NDI HX3

Video

Jump to...

  • Highest Resolution

    Up to 4K (3840x2160)

  • Highest Frame Rate

    Up to 60

IP IN

Jump to...

  • Video Codec

    AVC-H.264 / HEVC-H.265

  • Video Format

    3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080P @120/60/59.94/50/30/29.97/25/24/23.98
    1280 x 720P @60/59.94/50/30/29.97/25

  • Frame Rates (Hz)

    23.98, 24, 25, 30, 29.97, 50, 59.94, 60

  • Application Protocols

    RTP, RTSP. MP2TS over UDP, TS over RTP, TS over SRT, HTTP, IGMP v1/v2, DHCP, SSH, 802.1X Authentication

  • Multi-stream

    1 stream

HDMI OUT

Jump to...

  • Format

    HDMI 2.0

  • Supported Resolutions

    3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080i @60/59.94/50
    1280 x 720P @60/59.94/50/30/29.97/25

  • Upscalling

    Yes, upscale from 720P up to FHD, and from FHD to 4K60 resolution

  • Frame Rates (Hz)

    23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Color Space

    4K60: RGB 8bit, YUV444 8bit, YUV422 12bit, YUV420 8bit/10bit
    4K30 & below: RGB 8bit/10bit, YUV444 8bit/10bit, YUV422 12bit

SDI OUT

Jump to...

  • Format

    12G-SDI

  • Supported Resolutions

    3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080i @60/59.94/50
    1280 x 720P @60/59.94/50/30/29.97/25

  • Upscalling

    Yes, upscale from 720P up to FHD, and from FHD to 4K60 resolution

  • Frame Rates (Hz)

    23.98, 24, 25, 29.97, 30, 50, 59.97, 60

  • Color Space

    YUV422 10bit

  • Standard

    SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081, SMPTE 2082-0/1 With SMPTE352 SDI Metadata Supported

Audio Transport Formats

Jump to...

  • Audio Compression

    AAC-LC, MPEG-2

  • Audio S/N Ratio

    >=85dB

  • Audio THD+N

    <=0.05%

  • Audio Noise (RMS)

    <=-90dB

  • Bit Depths

    AAC-LC, MPEG-2 (sampling rate: 48KHz/44.1KHz, 24bit, 64-256Kbps selectable)

Intercom

Jump to...

  • MIC / Headset

    Reserved

Output Signal Types

Jump to...

  • Embedded Audio over HDMI

    Stereo 2-channel, Dante AV-H ( Audio Flow x 4 Flows / 2 Channels per Flow)

  • Embedded Audio over SDI

    Stereo 2-channel

  • Format

    PCM

  • Line-out

    3.5mm Jack, analog Line-out

Ethernet

Jump to...

  • Ethernet General

    Standard 1Gbps Ethernet
    Auto-switching, auto-negotiating, auto discovery, full/half duplex

  • ETHERNET with POE

    IEEE 802.3at compliant 1000BASE-T Ethernet port
    IEEE 802.3at Type 3 compliant, PoE+ Class 4

HDMI OUTPUT (Decoder only)

Jump to...

  • HDMI OUTPUT (Decoder only)

    HDMI 2.0 Type A connector, female; HDMI digital video/audio output

SDI OUTPUT

Jump to...

  • BNC

    75 Ohm

PTZ Camera IR Receiver

Jump to...

  • PTZ Camera IR Receiver

    Front and Back, bidirectional

LED Indicator

Jump to...

  • Power

    Yes, board powered and active (Bolin Logo corner)

  • Codec

    Yes, video codec active

  • Low latency

    Yes, light up for low latency mode

  • System

    Yes, system status

Control

Jump to...

  • Protocol

    Bolin Restful API

System Firmware Upgrade

Jump to...

  • System Firmware Upgrade

    Upgrade via IP web interface

Reset

Jump to...

  • Reset

    Yes, long press for 5 seconds to reset

Power

Jump to...

  • Power Input

    12V DC, 2A

  • Power button

    Yes

  • Connector Type

    5.5mm x2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter

Interface

Jump to...

  • Interface

    1x HDMI, 1x SDI, 1x 12V DC power port, 1x Power switch, 1x Reset button, 1x RJ45 (LAN/PoE+), 2x Infrared receiver (front & back), 1x 3.5mm Line in / 2x Line out, 3x LED indicator

General

Jump to...

  • Power Consumption

    18W

  • PoE

    PoE+, IEEE 802.3at Type 3 class 4 compliant

  • Power Adapter

    12V DC, 2A
    12V DC IN has priority over Ethernet POE. Ethernet POE will become active a fraction of a second after
    12V DC IN is disconnected

  • Storage Temperature

    -40 Degree F to 140 Degree F (-40 Degree to 60 Degree C)

  • Operating Temperature

    32 Degree F to 122 Degree F (0 Degree to 50 Degree C)

  • Humidity

    10% to 90% (non-condensing)

  • Heat Dissipation

    Cooling fan, 3 Level - Automatically adjust the fan speed according to the temperature

  • Acoustic Noise

    NC35 or less, variable with cooling fan speed adjustment

  • Chassis

    Metal, black finish, heat dissipation surface, fan cooled; vented front and rear

  • Size of Screw Hole for Tripod

    1/4"

Physical

Jump to...

  • Dimensions (L x D x H)

    5.59 x 5.91 x 1.73" (142 x 150 x 44mm)
    5.59 x 5.91 x 1.98" (142 x 150 x 50.5mm) (With feet mats)

  • Weight

    2.31 lbs (1.05kg)

Other

Jump to...

  • UPC Code

    6973775121994

About Bolin Technology EG40N

The Bolin EG40N NDI to 12G-SDI/HDMI 2.0 Decoder is a cutting-edge solution designed to elevate your video streaming experience to new heights. This high-performance decoder is engineered to seamlessly convert NDI streaming video into HDMI 2.0 and 12G-SDI outputs, supporting an impressive 4K60 resolution for unparalleled video quality. At its core, the EG40N features a robust hardware FPGA IP decoder, capable of managing a single NDI High Bandwidth or NDI HX3 video stream over a standard 1GB network. This advanced capability allows you to enjoy high-resolution video output of up to 4K60, 3840 x 2160, with embedded NDI audio, delivered simultaneously through both HDMI 2.0 and 12G-SDI interfaces.

What truly distinguishes the Bolin EG40N NDI to 12G-SDI/HDMI 2.0 Decoder is its broad compatibility with all certified NDI-enabled video and audio sources. This ensures a versatile and flexible solution for a wide range of video and audio streaming applications, making it an invaluable addition to both professional and home setups. Whether you are a content creator, broadcaster, or simply a tech enthusiast, the EG40N offers a reliable and efficient way to enhance your streaming capabilities. Experience superior quality and performance with the Bolin EG40N NDI to 12G-SDI/HDMI 2.0 Decoder, and transform the way you deliver content.

Bolin Technology EG40N Features

  • Support up to 4K60
  • Upscalable up to 4K60
  • Hardware FPGA based codec, high-quality image with ultra low latency
  • HDMI 2.0 + 12G-SDI video output
  • All video with audio embedded
  • Audio intercom with frontend device
  • On-screen character generator
  • Firmware upgrade via IP
  • POE+ and 12VDC power input

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Decode NDI streams to 12G-SDI/HDMI 2.0 with the EG40N, ensuring high video quality output.
  • Experience low latency NDI decoding (<100ms) for seamless live streaming and broadcast workflows.
  • Utilize the EG40N's versatile connectivity with both HDMI and SDI outputs for flexible integration.
  • Enjoy wide compatibility with NDI High Bandwidth, NDI 6, and NDI HX3 for diverse applications.
  • Simplify your setup with PoE+ support, providing both power and data over a single Ethernet cable.
  • Manage and control your video streams via Bolin Restful API, streamlining your broadcast encoder setup.

What's in the box:

  • Bolin Technology EG40N NDI to 12G-SDI/HDMI 2.0 Decoder
  • Power Adapter
  • IR Remote Controller
  • HDMI Cable Mount
  • Base Mount
  • Bolin Technology 2 Year Limited Warranty
