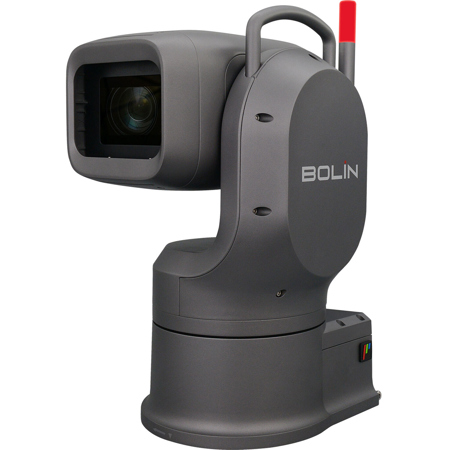

Bolin Technology EXU248F 4K HDMI/SDI/IP High-Bandwidth Outdoor 48x PTZ Camera Dark Gray

Redefining The Outdoor PTZ Camera Experience
Built to perform in demanding outdoor environments, the Bolin EXU248F is a long-range outdoor PTZ camera delivering high-resolution video with industry-leading zoom range. Featuring a powerful 48x zoom in Full HD, the EXU248F ensures detailed imaging from long distances, making it an ideal solution for sports stadiums, observation towers, outdoor event coverage, and weather monitoring. With a Sony image block housing a 1.0-inch 4K sensor and built-in ND filters, the camera excels in low-light conditions, providing true-to-life colors, exceptional detail, and improved dynamic range, even in challenging lighting environments. Designed with an IP67-rated weatherproof housing, this rugged PTZ camera is fully protected against dust, water, and extreme temperatures, ensuring consistent operation in rain, snow, and direct sunlight.

With multiple simultaneous outputs, including dual 6G-SDI, HDMI, Optical SDI, and IP streaming, the EXU248F integrates into baseband and AV-over-IP workflows, providing reliable and flexible connectivity for professional production setups. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.

The EXU248F supports FreeD protocol, allowing for real-time tracking in AR/VR applications, making it an ideal choice for guest/fan engagement in outdoor venues, sports analytics, and immersive live broadcasts. Genlock input allows for frame-accurate synchronization, ensuring in-sync multi-camera productions. Optical image stabilization, precise PTZ movement, and flexible power options including PoE++ ensure smooth operation in a variety of environments.

From sports coverage to remote monitoring, the Bolin EXU248F delivers outstanding image quality, extreme zoom range, and rugged durability, empowering production teams to capture every moment with confidence, no matter the conditions.

1 Inch Large 4K Sensor
Bolin's EXU248F 1-Inch 4K Outdoor PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilization for enhanced clarity and stability.

• 1 inch type Exmor R CMOS Large Image Sensor
• 14.2 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabilizer
• Black Level
• Color Matrix
• ND Filter
• True WDR

The new FCB-ES8230 represents a new avenue of high quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high quality lens and Sony unique ISP engine.

The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality. Additional 24x zoom in FHD resolution.

Capture high quality, crisp, clear 4K @30fps images
The high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high quality images in excellent detail and clarity.

Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom range
The high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

Get a steadier picture with optical image stabilization
In a first for FCB technology and inherited from our world leading professional camcorder technology; the FCB-ES8230 comes with a built-in optical image stabilization capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.

Full Format and Broadcast Standard

HDMI, SDI, IP Full Format
• 3840x2160P 30/29.97/25/24/23.98
• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50

SDI Standard
• SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• SMPTE 2081(6Gb/s)
• With SMPTE352 SDI Metadata Supported

True Tri-Output
Simultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use.

IP Streaming

Open Platform
• Bolin FAST HEVC codec camera can be decoded by standard HEVC decoder but not having Ultra Low Latency
• HEVC codec camera/device can be decoded by Bolin FAST HEVC decoder but not having Ultra Low Latency

Video Codec: FAST HEVC Codec Built-in
There is "FAST HEVC" logo on the camera body

• H.264/265 - AVC/HEVC
• Hardware FPGA based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

PTZ

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin's FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet
• PAN: 340 Degree (-170 Degree to +170 Degree ); Fully proportional, speed 0.08 Degree to 60 Degree /s
• TILT: 205 Degree (-35 Degree to +170 Degree ); Fully proportional, speed 0.08 Degree to 60 Degree /s
• Preset: 255 positions, Speed 60 Degree /s, 0-5 Level Adjustable, Accuracy: 0.1 Degree
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

Various Control Methods

IP Control
• Serial Control
• IR Remote Control
• Bolin API

Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD Supported

Rugged & durable - Extreme Weather Survival
• Wind Load Durability, steady operational and non-destructive at 30-60 m/s or less
• Heater, Defroster built-in
• -40 Degree C to 60 Degree C (-40 Degree F to 140 Degree F) operational

Installation mount
• Base Mount
• Upright Mount
• Ceiling Mount
• Pendent Mount

Easy Permanent Installation
• IP67 wall mount bracket
• Quick release locking adapter
• Waterproof space for accessories
• Wiring conduit/pipe interface

Live Production
• Tripod mount
• 1/4", 3/8" tripod holes
• Tripod mount waterproof rear panel cover
