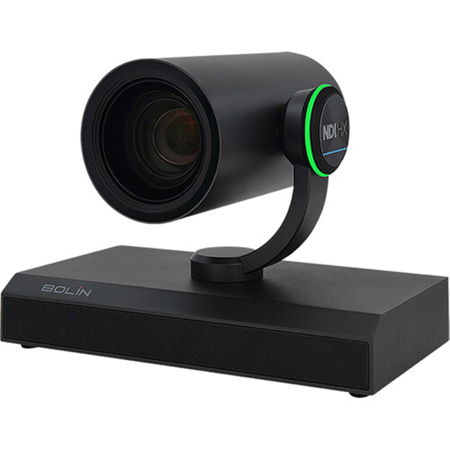

Bolin Technology N6-420X 4K Ultra HD NDI|HX3 HDMI/USB-C/IP 20x PTZ Camera, Dark Gray

SKU: BNN6420X MFR: N6-420X
Earn VIP Reward Points

Key Features

  • Capture stunning detail with the Bolin PTZ camera's 4K Ultra HD video quality.
  • Experience versatile connectivity with HDMI, USB-C, and IP outputs on this PTZ camera.
  • Remotely control your broadcast with the 20x optical zoom PTZ camera for perfect shots.
  • Stream seamlessly using NDI|HX3 for low latency video with this Bolin PTZ camera.
  • Ensure clear visuals in any setting with the PTZ camera's exceptional low-light performance.
  • Easily integrate this PTZ camera into your existing setup with multiple control protocols.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bolin Technology N6-420X Specifications

Camera
  • Image Sensor

    Sony Progressive scan CMOS image sensor 1/2.8 type

  • Number of effective pixels

    3840x2160, 8.29MP

  • Zoom

    Optical Zoom 20X, Digital Zoom 16X

  • Focal Length

    f= 3.55 mm (WIDE) to 63.58 mm (TELE)

  • Aperture

    F1.8 (Wide) to F3.58 (Tele)

  • Horizontal Angle of View

    78.59 Degree (W)-4.92 Degree (T)

  • Vertical Angle of View

    48.71 Degree (W)-2.81 Degree (T)

  • Min. object distance

    10mm (Wide)

  • Min. Illumination

    0.5lux(color), 0.1lux(black)

  • Shutter Speed

    1/1 sec to 1/10000 sec (22 steps)

  • Focus

    Auto, Manual, One Push

  • White Balance

    Auto, Indoor, Outdoor ,OPW, ATW, Manual

  • Exposure

    Auto, Manual, Shutter /Iris /Brightness priority

  • Image Adjustment

    Brightness, Color(Saturation), Contrast, Sharpness, HUE

  • Back Light Compensation

    On/Off

  • E-Flip

    On/Off

  • WDR

    On/Off

  • Image Stabilizer

    Yes

  • Defog

    Yes

  • Mirror

    Horizontal

  • Day/Night

    On/Off

  • Contrast

    Yes

  • Color Gain

    Yes

  • Color Hue

    Yes

  • Color Matrix

    Yes

  • Gamma

    Yes, 0-4

  • High Sensitivity

    Yes

  • Scene

    Default, Clear, Bright, Soft

  • Focus Zone

    Face Priority, All Area, Upper Area, Central Area, Lower Area

  • AI Face Detection Focus

    Yes

  • AI Face Auto Exposure

    Yes

  • Noise Reduction

    2D/3D, 1-255

  • S/N Ratio

    >=50db

  • OSD

    Editable

HDMI Signal System

Jump to...
  • Video Format - HDMI

    4K-2160p:60/59.94/50/30/29.97/25; 1080p:60/59.94/50/30/29.97/25; 1080i:60/59.94/50; 720p:60/59.94/50/30/25

  • Color Format

    10bit(HDMI), YCbCr

  • Color Space

    YUV, RGB

  • OSD Menu Display

    YES (English, Chinese, Spanish, German, French, Russian)

USB Signal System

Jump to...
  • USB Port

    USB2.0, Type C

  • Encoder

    H.264/ /YUV2

  • USB Video Format

    H.264/ :(3840x2160, 1920 x1080,1280X720,800x600,704x576,640X480,320X240) 50/60/25/30fps YUV2: 3840X2160 15fps (1920X1080,1280X720,800x600,704x576,640x480,320X240) 50/60/25/30fps

  • Compatible Integration

    UVC, UAC

  • Video Conference Compatibility

    Most video conference platform in the market

Network-IP Streaming

Jump to...
  • Video Codec

    NDI HX3, AVC/HEVC-H.264/265 by SoC

  • Network Interface

    RJ45 port-Standard 1Gbps Ethernet

  • IP Video - 1st Stream

    3840x2160,1920x1080,1280x720; Frame Rate: P60/50/30/25

  • IP Video - 2nd Stream

    704x576, 640x480, 640x360, 576x480, 352x228, 320x240, 320x180; P60/50/30/25; Frame Rate P60/50/30/25

  • True Dual Output

    Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same, SDI is the same or lower than HDMI, USB is the same as IP)

  • IP Protocols

    TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP, NDI HX3

  • Application Protocols

    RTP, RTSP, RTMP,RTMPS, SRT, NDI

  • Multi-stream

    2 Streams(Up to 20 viewers at the same time)

  • Audio Compression

    AAC-LC,G.711,G.726 Broadband Audio Encoding

  • Compatible Integration

    ONVIF2.4 (Profile S, Profile G, Profile T), VISCA Over IP

  • OSD

    Customized OSD

  • Browser Support

    Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

  • Latency - Codec

    NDI HX3 Certified, <100ms at 4K60

  • Bandwidth

    NDI HX3, 80-110Mbps at 4K60

Interface

Jump to...
  • HDMI Video Output

    HDMI 2.0X1 Type A

  • IP Video Stream

    Up to 4K60

  • SDI Video Output

    3G-SDI, SMPTE424/SMPTE292,TE 425-A(3Gb/s) standard / 75 Ohm (BNC x 1), With SMPTE352 SDI Metadata Supported

  • Camera Control Interface

    RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control

  • Control Protocol

    VISCA. VISCA Over IP, Pelco P/D

  • LAN Port

    RJ45X1 (1000BASE-T Ethernet port)

  • USB Port

    USB3.0, Type C

  • USB Protocol

    UVC, UAC

  • Synchronization

    Internal synchronization

  • Tally Light

    Tally lamp in front, Red and Green Color

  • Dip Switch

    Camera bottom panel: 8 PIN x 2

  • Firmware Upgrade

    HEVC IP stream system upgrade via IP

  • Latency - Codec

    Upgrade via IP for camera system MCU and Encoder

  • IR ID

    ID selector for IR controller, total 3

  • Power Connector Type

    DC12V (IEC60130-10 (JEITA standard RC-5320A) TYPE4 )

  • WDR

    INPUT: RJ45, PoE+ (IEEE802.3at)

  • Audio Input

    MIC/LINE input, 3.5mm audio jack
    ACC(Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K) G.711a(Bit Rate(bps)64K; Sampling Rate(bps)8K) G.711u(Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K)

  • Audio Output

    MIC/LINE input, 3.5mm audio jack
    Embedded with HDMI/USB/SDI/IP streaming, 24bit Stereo, sample rate: 44k1 to 192k, PCM24

  • Audio S/N Ratio

    >=85dB

  • Audio THD+N

    <=0.05%

  • Audio Noise (RMS)

    <=-90dB

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S)

  • Tilt Movement

    Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Speed Proportional

    Pan/Tilt Speed proportional to zoom range

  • Preset Position

    255 positions, Speed 150 Degree /s, Accuracy: 0.05 Degree 6 presets on remote controller

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • Motionless Preset

    On/Off

  • PTZ Trace Memory

    Yes, 4 (Supported via IP interface)

  • Cruise

    Yes, 4

  • Adaptive PT

    Zoom range adaptive Pan/Tilt speed

  • Pan/Tilt Direction

    Normal, Invert

  • Quietness

    NC35 or less

  • Home Position

    Support

  • Environmental

    Indoor

General

Jump to...
  • Color

    Dark Gray

  • Body

    Aluminum Alloy

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Size of Tripod Screw Hole

    1/4"-20UNC with safety joint

  • Operating Temperature

    -10 to +50 ( Degree C), 32 to 130 ( Degree F)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    DC +/-12V, PoE+(Compatible with IEEE802.3at)

  • Power Consumption

    Min:13W(Static state with no movement); Max:18W(Fully loaded operation)

  • Dimensions (L x W x H)

    11.02 x 6.26 x 6.81" (280 x 159 x 173mm)

  • Weight

    4.41 lbs (2kg)

  • UPC Code

    6973775121888

About Bolin Technology N6-420X

When you choose the N6-420X 4K Ultra HD NDI|HX3 HDMI/USB-C/IP 20x PTZ Camera in Dark Gray by Bolin, you are investing in a superior video production and conferencing tool that elevates your experience to new heights. As part of Bolin's esteemed N-Series, this camera is engineered for seamless integration with NDI-enabled hardware and software, thanks to its advanced NDI HX3 support. Built on the innovative Blue Line platform, the N6-420X combines premium features with affordability, reflecting Bolin's dedication to delivering uncompromised image quality, adherence to industrial video standards, and smooth PTZ control.

The N6-420X is distinguished by its impressive 20x optical zoom and Ultra High-Definition 2160P60 image output, available over NDI, HDMI, USB, and IP video streams. This makes it an ideal choice for a wide range of applications, including huddle rooms, video conference rooms, sports venues, live productions, and ProAV environments. With SRT Ready Delivery, the camera ensures high-quality, secure, and low-latency video transmission over the public Internet, optimizing streaming performance even across unpredictable networks.

Offering versatile control options, the N6-420X supports NDI Control, Serial port RS422/485, IP, and Rest API software control. It is compatible with various protocols, including VISCA, Pelco, VISCA Over IP, and ONVIF IP, allowing for flexible integration into existing systems. The camera is equipped with Bolin's latest AI-powered facial analytics engine, providing smart focus and smart exposure for rapid, precise focusing and enhanced auto exposure in complex lighting conditions.

At the core of the N6-420X is a high-performance Sony sensor, delivering stunning 4K60 2160P60 resolution images with 20x optical zoom. Its PTZ movement is exceptionally quiet and smooth, featuring adaptive, variable, and super slow speed control for precise operation. The camera includes a Picture Profile Preset for quick restoration of image parameter settings, ensuring consistent image quality.

The N6-420X facilitates NDI IP streaming video to the network and is fully compatible with NDI-enabled hardware and software. It also supports local HDMI video and USB streaming to PC software, making it suitable for both conventional video production and cloud-based video conferencing applications. Remote control and setup are simplified with traditional serial RS232, RS422/485 via VISCA and Pelco P/D protocol, and IP remote control over the network via Visca-over-IP and Onvif IP protocol, as well as IR remote control.

The camera offers extensive image parameter adjustments, including exposure, focus, iris, shutter speed, white balance, color matrix, gamma, wide dynamic range, and E-flip/mirror. Installation is straightforward, requiring just one network cable to connect the camera to any 1GB Ethernet network/POE device, and an HDMI/SDI cable for baseband video workflow. It supports both standard and ceiling mounting with an E-Flip function.

With Bolin's AI-powered face analytical engine, the N6-420X ensures precise smart focus and smart exposure, enhancing user experience and image quality in challenging environments. The camera supports firmware updates and upgrades via USB and IP interface, ensuring its features and performance remain current. Additionally, it offers high-quality audio streaming with embedded Mic-in and Line-in audio input in HDMI/SDI/USB and IP video streaming signals.

In summary, the N6-420X 4K Ultra HD NDI|HX3 HDMI/USB-C/IP 20x PTZ Camera in Dark Gray is a versatile, high-quality, and user-friendly solution designed to meet your video production and conferencing needs with excellence.

Bolin Technology N6-420X Features

  • 4K60 Ultra HD High-Resolution
  • 20X Zoom Range, Ultra Wide 79 Degree HOV
  • UHD 4K60 Output over USB, IP, HDMI, SDI
  • Convenient access to image Color Matrix via WebUI
  • Easy adjustments to Gain and Hue for RGBCMY
  • Results instantly visible in the WebUI preview
  • Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software
  • Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder
  • Supports RTSP, RTMP for online video and live streaming
  • Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin
  • Full function PTZ camera IP control via Visca Over IP protocol
  • Integration with popular VMS - ONVIF for IP video control, record and management

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning detail with the Bolin PTZ camera's 4K Ultra HD video quality.
  • Experience versatile connectivity with HDMI, USB-C, and IP outputs on this PTZ camera.
  • Remotely control your broadcast with the 20x optical zoom PTZ camera for perfect shots.
  • Stream seamlessly using NDI|HX3 for low latency video with this Bolin PTZ camera.
  • Ensure clear visuals in any setting with the PTZ camera's exceptional low-light performance.
  • Easily integrate this PTZ camera into your existing setup with multiple control protocols.

What's in the box:

  • Bolin Technology N6-420X 4K Ultra HD NDI|HX3 HDMI/USB-C/IP 20x PTZ Camera (Dark Gray)
  • IR Remote Control
  • Power Adapter
  • RJ45 to RS-232/422/485 Cable Adapter
  • Bolin Technology 2 Year Limited Warranty
