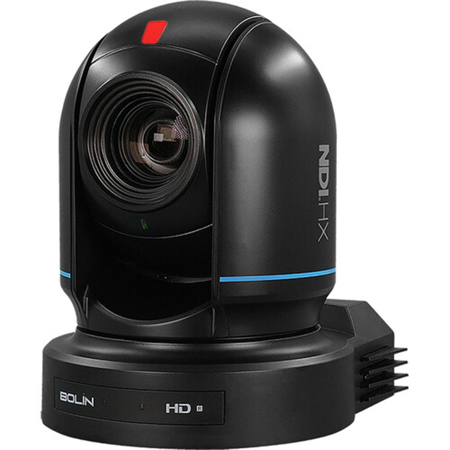

Bolin Technology N7-220X Full HD NDI|HX3 HDMI/3G-SDI/USB/IP 20x PTZ Camera, Black

SKU: BNN7220X MFR: N7-220X
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the Bolin PTZ camera's high-quality Sony CMOS sensor.
  • Experience smooth, precise control with 20x optical zoom, perfect for live events and broadcasts.
  • Stream directly via NDI|HX3, HDMI, 3G-SDI, USB, or IP for versatile connectivity options with this PTZ.
  • Ensure clear visuals in any setting with exceptional low-light performance and WDR capabilities.
  • Integrate seamlessly with your existing setup using VISCA, Pelco P/D, and ONVIF PTZ control protocols.
  • Enjoy quiet operation with pan/tilt movements, ideal for noise-sensitive environments using this camera.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bolin Technology N7-220X Specifications

Camera
  • Image Sensor

    Sony Progressive scan CMOS image sensor 1/2.8 type

  • Number of effective pixels

    1920X1080, 2.13 MP

  • Zoom

    Optical Zoom 20X, Digital Zoom 16X

  • Focal Length

    f= 5.2 mm (Wide) to 104 mm (Tele)

  • Aperture

    F1.6 (Wide) to F3.0 (Tele)

  • Horizontal Angle of View

    55.8 Degree (W)-3.2 Degree (T)

  • Min. object distance

    10mm (Wide)

  • Min. Illumination

    0.5lux(color), 0.1lux(black)

  • Shutter Speed

    1/1 sec to 1/10000 sec (22 steps)

  • Focus

    Auto, Manual, One Push

  • White Balance

    Auto, Indoor, Outdoor ,OPW, ATW, Manual

  • Exposure

    Auto, Manual, Shutter /Iris /Brightness priority

  • Image Adjustment

    Brightness, Color(Saturation), Contrast, Sharpness, HUE

  • Back Light Compensation

    On/Off

  • E-Flip

    On/Off

  • WDR

    On/Off

  • Mirror

    Horizontal

  • Day/Night

    On/Off

  • Contrast

    Yes

  • Color Gain

    Yes

  • Color Hue

    Yes

  • Color Matrix

    Yes

  • Gamma

    Yes, 0-4

  • High Sensitivity

    Yes

  • Scene

    Default, Clear, Bright, Soft

  • Focus Zone

    Face Priority, All Area, Upper Area, Central Area, Lower Area

  • AI Face Detection Focus

    Yes

  • AI Face Auto Exposure

    Yes

  • Noise Reduction

    2D/3D, 1-255

  • S/N Ratio

    >=50db

  • OSD

    Editable

HDMI Signal System

Jump to...
  • Video Format - HDMI

    1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25

  • Color Format

    10bit(HDMI), YCbCr

  • Color Space

    YUV, RGB

  • OSD Menu Display

    YES (English, Chinese, Spanish, German, French, Russian)

SDI Signal System

Jump to...
  • SDI Video Format

    1080p:60/59.94/50/30/29.97/25; 720p:60/59.94/50/30/25

  • Color Precision

    10bit(SDI), YCbCr, 4:2:2

  • Color Space

    YUV

  • Standard

    3G-SDI, SMPTE424/SMPTE292,TE 425-A(3Gb/s) standard / 75 Ohm (BNC x 1), With SMPTE352 SDI Metadata Supported

  • True Dual Output

    SDI and HDMI has same video format when HDMI outputs FHD and lower.

  • OSD Menu Display

    YES

USB Signal System

Jump to...
  • USB Port

    USB2.0,Type C

  • Encoder

    H.264/ /YUV2

  • USB Video Format

    1920 x1080p60/50/30/25fps ,1280X720p60/50/30/25fps

  • Compatible Integration

    UVC, UAC

  • Video Conference Compatibility

    Most video conference platform in the market

Network-IP Streaming

Jump to...
  • Video Codec

    NDI HX3, AVC/HEVC-H.264/265 by SoC

  • Network Interface

    RJ45 port-Standard 1Gbps Ethernet

  • IP Video - 1st Stream

    1920x1080,1280x720; Frame Rate: P60/50/30/25

  • IP Video - 2nd Stream

    704x576, 640x480, 640x360, 576x480, 352x228, 320x240, 320x180; P60/50/30/25; Frame Rate P60/50/30/25

  • True Dual Output

    Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same, SDI is the same or lower than HDMI, USB is the same as IP)

  • IP Protocols

    TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP, NDI HX3

  • Application Protocols

    RTP, RTSP, RTMP,RTMPS, SRT,NDI

  • Multi-stream

    2 Streams(Up to 20 viewers at the same time)

  • Audio Compression

    AAC-LC,G.711,G.726 Broadband Audio Encoding

  • Compatible Integration

    ONVIF2.4 (Profile S, Profile G, Profile T), VISCA Over IP

  • OSD

    Customized OSD

  • Browser Support

    Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

  • Latency - Codec

    NDI HX3 Certified, <100ms at 1080p60

  • Bandwidth

    NDI HX3, 50-60Mbps at 1080p60

  • Back Light Compensation

    Results may vary depending on network configuration and management settings.

Interface

Jump to...
  • HDMI Video Output

    HDMI 1.4X1 Type A

  • IP Video Stream

    Up to 1080p60

  • SDI Video Output

    3G-SDI, SMPTE424/SMPTE292,TE 425-A(3Gb/s) standard / 75 Ohm (BNC x 1), With SMPTE352 SDI Metadata Supported

  • Camera Control Interface

    RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control

  • Control Protocol

    VISCA. VISCA Over IP, Pelco P/D

  • LAN Port

    RJ45X1 (1000BASE-T Ethernet port)

  • USB Port

    USB2.0,Type C

  • USB Protocol

    UVC, UAC

  • Synchronization

    Internal synchronization

  • Tally Light

    Tally lamp in front, Red and Green Color

  • Dip Switch

    Camera bottom panel: 8 PIN x 2

  • Firmware Upgrade

    HEVC IP stream system upgrade via IP

  • Latency - Codec

    Upgrade via IP for camera system MCU and Encoder

  • IR ID

    ID selector for IR controller, total 3

  • Power Connector Type

    DC12V (IEC60130-10 (JEITA standard RC-5320A) TYPE4 )

  • WDR

    INPUT: RJ45, PoE+ (IEEE802.3at)

  • Audio Input

    MIC/LINE input, 3.5mm audio jack
    ACC(Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K) G.711a(Bit Rate(bps)64K; Sampling Rate(bps)8K) G.711u(Bit Rate(bps)32K/40K/48K/64K/96K/128K; Sampling Rate(bps)16K/32K/44.1K/48K)

  • Audio Output

    MIC/LINE input, 3.5mm audio jack
    Embedded with HDMI/USB/SDI/IP streaming, 24bit Stereo, sample rate: 44k1 to 192k, PCM24

  • Audio S/N Ratio

    >=85dB

  • Audio THD+N

    <=0.05%

  • Audio Noise (RMS)

    <=-90dB

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S)

  • Tilt Movement

    Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Speed Proportional

    Pan/Tilt Speed proportional to zoom range

  • Preset Position

    255 positions, Speed 150 Degree /s, Accuracy: 0.05 Degree 6 presets on remote controller

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • Motionless Preset

    On/Off

  • PTZ Trace Memory

    Yes, 4 (Supported via IP interface)

  • Cruise

    Yes, 4

  • Adaptive PT

    Zoom range adaptive Pan/Tilt speed

  • Pan/Tilt Direction

    Normal, Invert

  • Quietness

    NC35 or less

  • Home Position

    Support

  • Environmental

    Indoor

General

Jump to...
  • Color

    Black

  • Material

    Partial Magnesium Alloy

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Size of Tripod Screw Hole

    1/4"-20UNC with safety joint

  • Operating Temperature

    32 to 130 Degree F (-10 to +50 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    DC +/-12V, PoE+(Compatible with IEEE802.3at)

  • Power Consumption

    Min: 15W
    Max: 19W

  • Dimensions

    7.04 x 6.26 x 8.31" (178.75 x 159 x 211mm)

  • Weight

    4.41 lbs (2kg)

  • UPC Code

    6973775121864

About Bolin Technology N7-220X

Become a leader in video production with the N7-220X Full HD NDI|HX3 HDMI/3G-SDI/USB/IP 20x PTZ Camera from Bolin. This advanced PTZ camera, part of Bolin's renowned N-Series, is engineered for seamless integration with NDI-enabled hardware and software, making it a versatile and indispensable tool for professional videographers and broadcasters. Built on the innovative Blue Line platform, the N7-220X combines premium features with affordability, ensuring no compromise on image quality, adherence to industrial video standards, or precision in PTZ control operations.

The N7-220X model is equipped with a powerful 20x optical zoom, delivering stunning Full HD 1080p60 resolution images across multiple output formats, including NDI, HDMI, 3G-SDI, USB, and IP video streams. This makes it an ideal solution for a variety of applications, from studio setups and live productions to ProAV environments. The camera is SRT Ready, guaranteeing secure, high-quality, low-latency video transmission over the public Internet, optimizing streaming performance even on unstable networks.

Control of the N7-220X is both comprehensive and intuitive, offering multiple options such as NDI Control, Serial port RS422/485, IP, and Rest API software control. It supports a wide range of protocols, including VISCA, Pelco, VISCA Over IP, and ONVIF IP, ensuring compatibility with diverse control systems. Bolin's latest AI-powered facial analytics engine enhances the camera's capabilities, providing smart focus and smart exposure for rapid, precise focusing and improved auto exposure on faces, even in challenging lighting conditions.

Featuring a high-performance Sony sensor, the N7-220X captures brilliant, high-quality images with exceptional clarity. Its Pan/Tilt movements are remarkably quiet and smooth, thanks to enhanced adaptive, variable, and super slow speed control, delivering precise and effective operational experiences. The camera's NDI IP streaming capability allows for seamless video delivery to the network, while local HDMI video and USB streaming facilitate conventional video production and cloud-based video conferencing applications.

Installation is straightforward, requiring only a single network cable to connect the camera to any 1GB Ethernet network/POE device. It also supports traditional serial RS232, RS422/485 connections via VISCA and Pelco P/D protocols, as well as IP remote control over the network using Visca-over-IP and Onvif IP protocols. With the N7-220X Full HD NDI|HX3 HDMI/3G-SDI/USB/IP 20x PTZ Camera, you can consistently achieve the highest quality in your video production endeavors.

Bolin Technology N7-220X Features

  • 1080p60 Output over USB/IP/HDMI/3G-SDI
  • 20X Zoom Range, 59 Degree HOV
  • Convenient access to image Color Matrix via WebUI
  • Easy adjustments to Gain and Hue for RGBCMY
  • Results instantly visible in the WebUI preview
  • Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software
  • Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder
  • Supports RTSP, RTMP for online video and live streaming
  • Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin
  • Full function PTZ camera IP control via Visca Over IP protocol
  • Integration with popular VMS - ONVIF for IP video control, record and management

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning Full HD video with the Bolin PTZ camera's high-quality Sony CMOS sensor.
  • Experience smooth, precise control with 20x optical zoom, perfect for live events and broadcasts.
  • Stream directly via NDI|HX3, HDMI, 3G-SDI, USB, or IP for versatile connectivity options with this PTZ.
  • Ensure clear visuals in any setting with exceptional low-light performance and WDR capabilities.
  • Integrate seamlessly with your existing setup using VISCA, Pelco P/D, and ONVIF PTZ control protocols.
  • Enjoy quiet operation with pan/tilt movements, ideal for noise-sensitive environments using this camera.

What's in the box:

  • Bolin Technology N7-220X Full HD NDI|HX3 HDMI/3G-SDI/USB/IP 20x PTZ Camera (Black)
  • IR Remote Control
  • Power Adapter
  • RJ45 to RS-232/422/485 Cable Adapter
  • Bolin Technology 2 Year Limited Warranty
