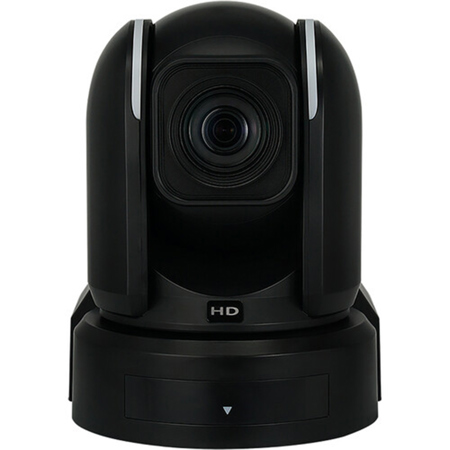

Bolin Technology R9-230NX Full HD NDI|HX3 3G-SDI/HDMI/IP 30x PTZ Camera, Black

SKU: BNR9230NX MFR: R9-230NX
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the Bolin PTZ camera's advanced 30x optical zoom.
  • Experience seamless live streaming with NDI|HX3, perfect for broadcast and online events.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, and IP outputs for diverse workflows.
  • Achieve superior image quality in low light with the STARVIS 2 CMOS image sensor.
  • Remotely control pan, tilt, and zoom for dynamic shots in any professional setting.
  • Integrate easily with existing systems using VISCA, ONVIF, and FreeD control protocols.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bolin Technology R9-230NX Specifications

Camera
  • Codec

    NDI HX3, Standard AVC/HEVC

  • Camera Image

    30X Full HD

  • Image Maker

    Sony

  • Image Sensor

    CMOS image sensor 1/1.8 type STARVIS 2 sensor

  • Number of effective pixels

    2712 x 1538, 4.17MP

  • Picture elements

    2688 x 1520, 4.09MP

  • Lens

    Enhanced optical zoom 30X

  • Digital Zoom

    12X

  • Horizontal Angle of View

    58.1 Degree (Wide) - 2.3 Degree (Tele),

  • Vertical Angle of View

    34.9 Degree (Wide) - 1.7 Degree (Tele),

  • Focal Length

    f= 6.5 mm (WIDE) to 162.5 mm (TELE)

  • Min. object distance

    100mm (Wide), 1200mm (Tele)

  • Aperture

    F1.6 (Wide) to F4.8 (Tele), 16 steps

  • Min. Illumination

    ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On)
    ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)

  • Shutter Speed

    1/1 sec to 1/10000 sec (22 steps)

  • Focus

    Spot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance

  • White Balance

    Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto

  • Exposure

    Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation

  • Features

    High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night

  • WDR

    Yes

  • Image Stabilizer

    Yes, Super, Super+

  • Color Gain

    Yes (15 step)

  • Color Hue

    Yes (15 step)

  • Gamma

    Standard / Straight gamma

  • Color Matrix

    Yes

  • Noise Reduction

    On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D

  • S/N Ratio

    >=50db

  • HLC

    Yes

  • E-Flip

    Yes

  • Privacy Zone Masking

    Yes

  • Defog

    Yes, (off, low, mid, high)

  • High Sensitivity

    Yes

  • Slow AE Response

    Yes

  • Day/Night

    Yes

  • Backlight Compensation

    Yes

  • Low Latency Mode

    Yes

Mechanical

Jump to...
  • Pan Movement

    PAN: 340 Degree (-170 Degree to +170 Degree ); Fully proportional 0.05 Degree to 100 Degree /s

  • Tilt Movement

    TILT: 120 Degree (-30 Degree to +90 Degree ); Fully proportional 0.05 Degree to 75 Degree /s

  • Speed Proportional

    Pan/Tilt Speed proportional to zoom range

  • Preset Position

    255 positions, Speed 100 Degree /s, 0-5 Level Adjustable, Accuracy: 0.1 Degree

  • Preset Memory

    Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)

  • Motionless Preset

    YES, ON/OFF

  • PTZ Trace Memory

    YES, 12

  • Cruise

    YES, 4

  • Quietness

    NC35 Compliant

  • Home Position

    Yes

  • FreeD

    Yes, FreeD protocol for AR/VR camera tracking, via serial control/IP (Via fw upgrade)

  • Environmental

    Indoor, IP50

Interface

Jump to...
  • HDMI Video Output

    HDMI 2.0 Type A

  • SDI Video Output

    3G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M standards, 75Ohm BNC x 2, SDI/PM for output to has OSD display

  • SDI Optical Fiber Output

    Optical 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
    Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver
    Complaint with MSA SFP+ Specification SFF-8402.

  • Network LAN Port

    RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade

  • Synchronization System

    Internal/External synchronization (BBS/Tri-level sync)

  • External Sync Input

    Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported

  • Audio Input

    Balanced XLR (Hirose Connector via Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power
    3.5mm TRRS for bidirection audio intercom

  • Audio Output

    Balanced XLR (via Atomos 10-Pin LEMO Type to XLR Breakout Cable), embedded with HDMI, SDI, USB and IP
    3.5mm TRRS for bidirection audio intercom

  • Tally Light

    Red, Green Color/Front and Rear

  • Dip Switch

    Video Resolution Dip Switch x1

  • System Firmware Upgrade

    Upgrade via IP for camera system MCU, Driver, FPGA and Encoder

  • Power Connector Type

    INPUT: DC12V, connect with screw secure (Type - 5.5mm x2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket
    INPUT: RJ45, PoE++ (IEEE802.3bt)

  • Control Interface

    RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control

  • Control Protocol

    Serial: VISCA, PELCO P/D; IP: VISCA Over IP, ONVIF; FreeD

HDMI Video Signal System

Jump to...
  • HDMI Video Format

    1920 x 1080p/59.94/60/50/29.97/30/25/23.98/24
    1920 x 1080i/59.94/60/50
    1280 x 720p/59.94/60/50

  • Color Precision

    12bit(HDMI), YUV4:2:2, YUV4:2:0

  • Color Space

    YUV, RGB

  • OSD Menu Display

    Yes, with image insert

  • On-Screen Title

    Yes, video embedded On-Screen title character generator

SDI Signal Format

Jump to...
  • SDI Video Format

    1920 x 1080p/59.94/60/50/29.97/30/25/23.98/24
    1920 x 1080i/59.94/60/50
    1280 x 720p/59.94/60/50

  • Color Precision

    10bit(SDI), YUV 4:2:2

  • Color Space

    YUV

  • Standard

    SMPTE 292M , SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE
    2082-1(12Gb/s) standard / 75 Ohm (BNC x 1), With SMPTE352 SDI Metadata Supported

  • True Dual Output

    HDMI and SDI signal can be output with different format

  • OSD Menu Display

    Yes

  • On-Screen Title

    Yes, video embedded On-Screen title character generator

Network

Jump to...
  • Video Compression (Codec)

    NDI HX3, MJPEG,H.264/H.265 by SoC

  • IP Resolution/Frame Rate

    1920x1080p60/50/30/25, 1280x720p60/50

  • True Dual Output

    IP, HDMI, and SDI signal can be set with different format

  • IP Protocols

    HTTP,

  • Application Protocols

    RTMP(S), RTSP, RTSP Encryption, SRT, MP2TS over UDP (Unicast, Multicast) , NDI

  • Multi-stream

    3 stream

  • Audio Compression

    AAC-LC,G.711A/G.711U
    Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)

  • OSD

    Customized OSD

  • Compatible Integration

    ONVIF2.4 (Profile S), VISCA Over IP

  • Bandwidth

    50-60Mbps, 1080p60

  • Latency

    NDI HX3 certified, <100ms

  • Browser Support

    Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

General

Jump to...
  • Color

    Black

  • Operating Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Operating Humidity

    <=80% Suitable for Use (no condensation)

  • Power Input

    DC12V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)

  • Power Consumption

    Min: 29W (Static state with no movement)
    Max: 40W (Fully loaded operation)

  • Installation Method

    Stand-alone (Upright) or suspended (Pendent) or Tripod

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Handle

    Built-in for portable use application

  • Size of Tripod Screw Hole

    1 x 1/4" safety bond point

  • Dimensions (W x D x H)

    Camera: 7.91 x 9.96 x 9.80" (201 x 253 x 249mm)
    7.91 x 9.96 x 10.07" (201 x 253 x 256mm) (With feet mats)

  • Weight

    8.36 lbs (3.8kg)

  • UPC Code

    6973775121895

About Bolin Technology R9-230NX

When capturing high-quality images in challenging lighting conditions is essential, the R9-230NX Full HD NDI|HX3 3G-SDI/HDMI/IP 30x PTZ Camera, Black stands out as a top performer. This advanced PTZ camera is engineered with a Sony image block and a UHD lens featuring a 30x zoom range, ensuring Full HD (1080P60) crystal-clear, high-quality color images even in low-light environments. The camera's super image stabilizer guarantees stable image output across HDMI, 3G-SDI, Optical SDI, and NDI HX3 video streaming, making it fully compatible with NDI-enabled hardware and software, thereby enhancing its versatility.

The R9-230NX NDI HX3 PTZ camera is equipped with an 8M compatible lens, a 4M image sensor (1/1.8 type), and an ISP, all sourced from esteemed Japanese manufacturers. This combination of cutting-edge technologies delivers an impressive sense of resolution, while the advanced AF / AE / AWB functions ensure faithful image reproduction even in low-light conditions. The camera's superior image stabilization capabilities provide clear images even in vibrating environments.

Featuring the new Sony 1/1.8 type CMOS sensor STARVIS II, the camera excels in low-light performance, delivering clean images in extreme low-light conditions in color, even with ICR on. It supports full broadcast SDI format and standard full format, accommodating various resolutions and SDI standards. The integration of the FreeD protocol provides all the axis data necessary for intelligent and smooth pan, tilt, and zoom operations.

The R9-230NX NDI HX3 PTZ camera offers multiple control methods, including IP Control, Serial Control, IR Remote Control, and Rest API-Software Control. It supports a wide range of protocols, such as NDI Control, VISCA Over IP, ONVIF, VISCA, PELCO P/D, and FreeD. Its true tri-output capability allows for simultaneous output of SDI, HDMI, and IP, which can be set to independent formats for different applications. The camera also features smooth and accurate movement capabilities, with adjustable pan and tilt speeds and preset positions.

Additional features include a picture profile preset, PTZ trace memory, on-screen character generator, front and rear tally light, POE++ and 12VDC/AC power options, a built-in handle, Genlock, and an HDMI cable secure mount. The camera's industry-first unique portable body design facilitates easy video production installation, making it an ideal choice for professionals seeking reliability and performance in diverse environments.

Bolin Technology R9-230NX Features

  • NDI HX3 Certified
  • Sony 1/1.8 type CMOS sensor STARVIS II
  • 30X zoom range
  • Resolution 1080i59.94, 1080p60
  • IP Video Resolution: Up to 1080p60
  • Video Output: Simultaneous 3G-SDI, HDMI, NDI HX3
  • SFP Optical SDI video output
  • RTSP. RTMP, SRT Supported
  • NDI Control, Visca Over IP, Onvif, FreeD, Serial Control
  • Extreme Low Light Performance
  • Super Image Stabilizer

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning Full HD video with the Bolin PTZ camera's advanced 30x optical zoom.
  • Experience seamless live streaming with NDI|HX3, perfect for broadcast and online events.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, and IP outputs for diverse workflows.
  • Achieve superior image quality in low light with the STARVIS 2 CMOS image sensor.
  • Remotely control pan, tilt, and zoom for dynamic shots in any professional setting.
  • Integrate easily with existing systems using VISCA, ONVIF, and FreeD control protocols.

What's in the box:

  • Bolin Technology R9-230NX Full HD NDI|HX3 3G-SDI/HDMI/IP 30x PTZ Camera (Black)
  • Power Adapter
  • Power Cable
  • IR Remote Control
  • RJ45 to RS-422 Extension Cable
  • Mounting Screw Set
  • Safety Cable
  • Dust Cover
  • Lens Cap
  • Bolin Technology 2 Year Limited Warranty
