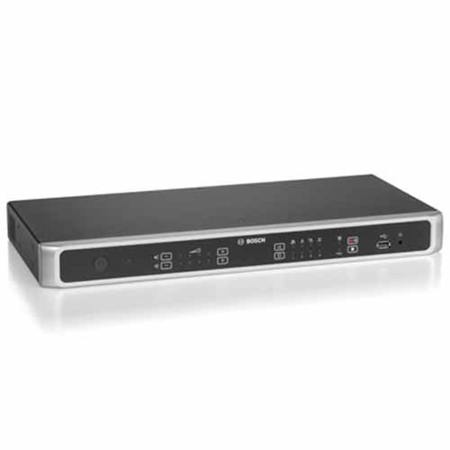

Bosch CCSD-CURD CCS 1000 D Control Unit DAFS Recorder

SKU: BOCCSDCURD MFR: F.01U.298.789
Earn VIP Reward Points

Key Features

  • Enhance meetings with the Bosch CCS 1000 D control unit for superior audio clarity.
  • Record discussions via USB; this audio-conferencing accessory supports up to 128GB.
  • Connect up to 40 discussion devices, optimizing sound quality for larger conferences.
  • Enjoy easy setup with included mounting brackets; integrate into any 19" rack setup.
  • Utilize the web browser app for remote configuration and seamless audio management.
  • Trust in Bosch's 3-year warranty; your investment in conference audio is protected.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch CCSD-CURD Specifications

  • Connections

    Rear of Unit:
    1x 4-pole circular female 24VDC power input connector
    2x 6-pole circular female connectors for loop-through connection of 40 Discussion Devices per trunk
    1x RJ45 Ethernet connector for communication with web browser application
    1x 3-pole XLR female microphone input connector with phantom supply
    1x RCA input for 'Floor' (i.e. external audio source, such as a CD or DVD player)
    1x RCA output for a 'sound reinforcement system'

  • Connections (Cont.)

    1x RCA input/output for either:
    'Recorder' for connecting an external recorder
    'Insertion' for connecting an external audio processor
    'Telephone/mix minus' for allowing a remote participant to join a discussion via a telephone/video connection
    'Participant loudspeaker' for distributing the participant loudspeaker signal to a sound reinforcement system
    Only one piece of audio equipment can be connected to this RCA input/output at any one time

  • Connections (Cont..)

    The RCA input/output has to be configured by selecting the required option in the web browser
    1x micro USB connector
    4x RCA outputs for individual microphone recording, e.g. for recording individual speakers in a courtroom
    Front of Unit: 1x 3.5mm (0.14") stereo headphone socket
    1x USB connector

  • Mains Voltage

    100-240VAC +/-10%

  • Current Consumption

    Maximum 0.6A (100VAC) to 0.2A (240VAC)

  • DC Supply to Discussion Devices

    24V +/- 1V (current limited)

  • Discussion Devices Per Control Unit

    Maximum 40 devices per trunk connector

  • Discussion Device Loudspeakers

    Volume Control: 15 steps of 1.5dB (starting from -10.5dB)

  • Limit Threshold Level to Unit

    12dB above nominal level

  • Gain Reduction Due to NOM

    1/SQRT (NOM)

  • Sample Rate

    44.1kHz

  • Nominal Input (85dB SPL)

    <0.5%

  • Maximum Input (110dB SPL)

    <0.5%

  • XLR Nominal Microphone Input

    -56 dBV

  • XLR Maximum Microphone Input

    -26 dBV

  • RCA Nominal Input

    -24 dBV (+/- 6dB)

  • RCA Maximum Input

    +6 dBV

  • S/N

    Audio Input: >94 dBA
    Audio Output: >102 dBA

  • Frequency Response

    Audio Input and Output: 30Hz to 20kHz

  • RCA Nominal Output

    -24 dBV (+6/- 24dB)

  • RCA Maximum Output

    +6 dBV

  • Operating Temperature

    5 to 45 deg. C / 41 to 113 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Relative Humidity

    5% to 98% non-condensing

  • Mounting

    Tabletop
    19" rack

  • Height of Feet

    5.5mm / 0.22"

  • Material

    Top and Base: Painted Metal

  • Rack Height

    1RU

  • Recording / Playback (Bit Rate)

    64, 96, 128, 256 Kbit/sec

  • Recording / Playback (Sample Frequency)

    44.1kHz

  • Nominal Output

    72dB SPL

  • Monitoring Loudspeaker

    Frequency Response: 200Hz-12.5kHz

  • Gain Range Mute

    -10.5 to +12

  • SanDisk USB Memory Stick

    Formatted with FAT32 File System
    Maximum Size: 128GB

  • Recording Capacity in Hours

    Bit Rate: 64Kbit/sec
    Internal Memory Hours: 8 hours
    USB Memory Stick Hours:
    16GB: 500
    32GB: 1000
    64GB: 2000
    128GB: 4000
    Bit Rate: 96Kbit/sec
    Internal Memory Hours: 5 hours
    USB Memory Stick Hours:
    16GB: 350
    32GB: 700
    64GB: 1400
    128GB: 2800

  • Recording Capacity in Hours (Cont.)

    Bit Rate: 128Kbit/sec
    Internal Memory Hours: 4 hours
    USB Memory Stick Hours:
    16GB: 250
    32GB: 500
    64GB: 1000
    128GB: 2000
    Bit Rate: 256Kbit/sec
    Internal Memory Hours: 2 hours
    USB Memory Stick Hours:
    16GB: 125
    32GB: 250
    64GB: 500
    128GB: 1000

  • Certifications and Approvals

    UL, FCC

  • Dimensions (H x W x D)

    Including Feet: 45 x 440 x 200mm / 1.77 x 17.32 x 7.87"

  • Weight

    3.4kg / 7.50lbs

About Bosch CCSD-CURD

Under the spotlight of advanced digital discussion systems, the Bosch CCSD-CURD CCS 1000 D Control Unit DAFS Recorder stands as the pivotal component of the CCS 1000 Digital Discussion System. This sophisticated control unit is engineered to supply DC power to all connected discussion devices while seamlessly monitoring and managing the entire discussion system. Its user-friendly touch button control ensures effortless configuration and operation, complemented by intuitive LED indicators that provide a clear visual representation of system settings.

Designed with practicality in mind, the control unit features strategically positioned rear connections, facilitating the integration of peripheral equipment such as audio devices and Bosch HD Conference Domes. The plug-and-play functionality allows for the swift connection of up to 80 discussion devices, ensuring rapid installation and reconfiguration without the need for system shutdowns.

The Bosch CCSD-CURD model distinguishes itself with built-in MP3 recording capabilities and Digital Acoustic Feedback Suppression (DAFS), enhancing speech intelligibility and recording quality. The integrated MP3 recorder supports internal memory and USB recording, accommodating up to 128GB of storage, which translates to approximately 4,000 hours of discussion time. Recordings are conveniently divided into one-hour segments, complete with date and time stamps for easy management.

Advanced system configuration is made accessible through intuitive web browser control, allowing users to manage microphone settings, recording options, and more via a tablet, laptop, or PC. This feature also supports energy-saving measures by enabling automatic shutdown of the control unit and connected devices. To safeguard system integrity, separate login rights are available for operators and technicians.

The control unit offers versatile microphone management with its 'Number of Open Microphones' (NOM) feature, allowing up to four microphones to be activated directly on the unit, extendable to ten via web browser control. Users can select from various microphone modes, including Open Mode, Override Mode, Voice Activation Mode, and Push to Talk (PTT) Mode, to suit different discussion environments.

For seamless integration with peripheral equipment, the control unit supports connections to system cameras, external microphones, sound reinforcement systems, audio equipment, external audio processors, telephone couplers, and external recorders. This flexibility ensures that the CCS 1000 Digital Discussion System can adapt to diverse communication needs, from courtrooms to conference halls.

The built-in monitor loudspeaker and headphone socket facilitate live meeting monitoring and pre-listening of audio files. Meanwhile, the DAFS feature effectively suppresses acoustic feedback, allowing for optimal speaker volume without compromising clarity.

The control unit's interface is equipped with essential controls and indicators, including a mains power on/off button, volume adjustment buttons, microphone mode selection, and recording controls. LED indicators provide real-time feedback on system status, volume levels, and recording activities, ensuring users remain informed and in control at all times.

In summary, the Bosch CCSD-CURD CCS 1000 D Control Unit DAFS Recorder is a robust and versatile solution for managing digital discussions, offering unparalleled functionality, ease of use, and integration capabilities.

Key Features

  • Enhance meetings with the Bosch CCS 1000 D control unit for superior audio clarity.
  • Record discussions via USB; this audio-conferencing accessory supports up to 128GB.
  • Connect up to 40 discussion devices, optimizing sound quality for larger conferences.
  • Enjoy easy setup with included mounting brackets; integrate into any 19" rack setup.
  • Utilize the web browser app for remote configuration and seamless audio management.
  • Trust in Bosch's 3-year warranty; your investment in conference audio is protected.

What's in the box:

  • Bosch CCSD-CURD CCS 1000 D Control Unit DAFS Recorder
  • Mains Power Cord
  • 24VDC Power Supply
  • Sets of Chairperson's Buttons for the Discussion Device
  • Exchange Tool for Buttons
  • Set of Feet for Table Top Use
  • Set of 19" 1U Mounting Brackets
  • Safety Instructions
  • DVD with Operation Manual and Supporting Tools
