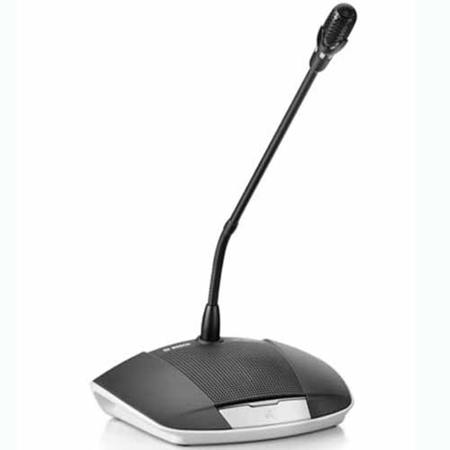

Bosch Discussion Device with Long-Stem Fixed Microphone for CCS 1000 Digital Discussion System, Traffic Black/Pearl Light Gray

SKU: BOCCSDDL MFR: F.01U.299.031
Earn VIP Reward Points

Key Features

  • Enhance your meetings with crystal-clear audio using this Bosch discussion device.
  • Enjoy seamless compatibility with the CCS 1000 Digital Discussion System for easy setup.
  • Benefit from a long-stem microphone that ensures everyone is heard during conferences.
  • Experience durable performance with high-quality materials designed for daily use.
  • Achieve optimal sound quality with a frequency response of 200Hz to 12.5kHz.
  • Confidently present with a reliable microphone, backed by a Bosch 3-year warranty.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch Discussion Device Specifications

  • Compatibility

    CCS 1000 Digital Discussion System

  • Frequency Response

    200Hz to 12.5kHz

  • Headphone Load Impedance

    > 32Ohms
    < 1kOhms

  • Loudspeaker nominal output

    72dB SPL

  • Mounting

    Tabletop (portable or fixed)

  • Material

    Top: Plastic ABS+PC
    Base: Metal ZnAl4

  • Operating Temperature

    0 to 35 deg. C / 32 to 95 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Relative humidity

    15% to 90%

  • Air pressure

    600 to 1100 hPa

  • Certifications and approvals

    EU: CE, WEEE
    US: FCC
    CA: ICES-003
    KR: KCC
    AU/NZ: RCM
    RU/KZ/BY: EAC
    CN: China RoHS
    SA: SASO

  • Height

    With Microphone in Horizontal Position: 130mm / 5.12"

  • Microphone Length

    480mm / 18.90"

  • Dimensions (H x W x D)

    Without Microphone : 64 x 203 x 146mm / 2.52 x 7.99 x 5.75"

  • Weight

    2.2lbs / 1.00kg (Approx.)

About Bosch Discussion Device

You can enhance your meetings with the Bosch Discussion Device featuring a Long-Stem Fixed Microphone, designed specifically for the CCS 1000 Digital Discussion System. Available in a sleek Traffic Black/Pearl Light Gray finish, this device seamlessly integrates into your setup with its daisy chain configuration, connecting effortlessly to the Control Unit. Its plug-and-play functionality ensures quick installation and reconfiguration without the need for system power down or restart, making it ideal for dynamic meeting environments.

This discussion device allows participants to engage actively by speaking into the microphone and listening through the built-in loudspeaker or optional headphones. It features a unique, patent-pending possible-to-speak indicator, which uses a white light above the microphone button to signal when the microphone is ready for activation. Additionally, a green request-to-speak indicator, located both above the microphone button and in the microphone head, alerts users when their request is in the queue, flashing green when they are first in line.

The device offers flexibility with a choice between a short 310mm (12.2") or long 480mm (18.9") microphone stem, both with a flexible design to suit user preferences. The built-in loudspeaker, centrally controlled for volume from the Control Unit, ensures clear audio delivery, while the simultaneous operation of the loudspeaker and microphone creates an authentic face-to-face meeting experience.

For environments with excessive background noise, the 3.5mm (0.14") stereo headphones socket provides clear audio, with a rotary thumbwheel for volume adjustment. To prevent feedback, the system can automatically reduce headphone volume when the microphone is active, configurable via a web browser application.

The Bosch Discussion Device is immune to mobile phone interference, ensuring uninterrupted communication. It can be configured as either a participant or chairperson's device without requiring a system restart. In chairperson mode, users can utilize a priority button to override participant microphones, with an accompanying chime to signal their intention to speak.

Key controls and indicators include a microphone button, color-coded LED indicators for microphone status, a light-ring indicator in the microphone head, and a concealed initialization button for network address reassignment. The device also features a concealed slide-switch for configuration as a participant or chairperson's device.

Connections include a 6-pole circular female connector for loop-through connection, a 3.5mm stereo headphones socket, and a 2m (78.7") cable with a 6-pole circular male connector for secure attachment. Each device is delivered with a participant's microphone button, easily exchangeable for chairperson's buttons using the supplied tool, ensuring versatile functionality for any meeting setup.

Key Features

  • Enhance your meetings with crystal-clear audio using this Bosch discussion device.
  • Enjoy seamless compatibility with the CCS 1000 Digital Discussion System for easy setup.
  • Benefit from a long-stem microphone that ensures everyone is heard during conferences.
  • Experience durable performance with high-quality materials designed for daily use.
  • Achieve optimal sound quality with a frequency response of 200Hz to 12.5kHz.
  • Confidently present with a reliable microphone, backed by a Bosch 3-year warranty.

What's in the box:

  • Bosch Discussion Device with Long-Stem Fixed Microphone
  • Bosch 3 Year Warranty
