Review Summary
22.5 W
15 W
15/7.5/3.75/1.9 W
98/86 dB (SPL) at rated power / 1 W (1 kHz, 1 m)
95Hz-19.5kHz
Horizontal: 179deg. / 101deg.
Vertical: 168deg. / 35deg.
11/70/100 V
8/326/667 Ohm
101.6m (4") woofer, 13mm (0.51") dome tweeter
2 m (78.8") two-wire cable
-25 deg.C to +55 deg.C (-13 deg.F to +131 deg.F)
-40 deg.C to +70 deg.C (-40 deg.F to +158 deg.F)
<95%
205 x 136 x 117mm (8.07 x 5.35 x 4.60")
1.9kg (4.18lbs)

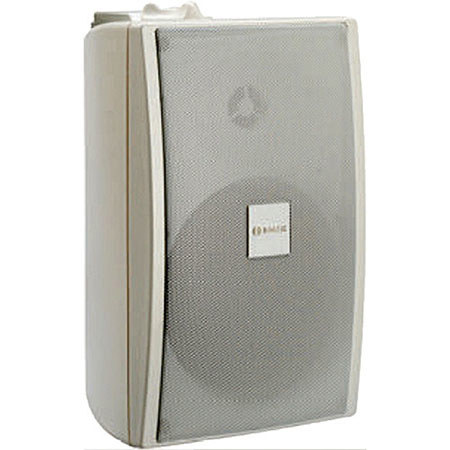

The Bosch LB2-UC15-L1 Premium Sound Cabinet Charcoal Loudspeaker is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The loudspeakers have selectable 8 ohm, 70 V and 100 V inputs.
Typical applications are theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centre's and presentation environments.
Installation/configuration
The cabinets include a built-in transformer that offers a selection of nominal full power, half power, quarter power or eight power radiation (i.e. in 3 dB steps) for 70 V, 100 V or 8 Ohm bypass.
A two meter long twin-core loudspeaker cable (in matching color with the cabinet) is connected to the loudspeaker. The core ends are stripped ready for use. The mounting brackets are fitted with anti-theft torx screws, covered with plastic covers in matching color of the cabinets.
A two meter long twin-core loudspeaker cable (in matching color with the cabinet) is connected to the loudspeaker. The core ends are stripped ready for use. The mounting brackets are fitted with anti-theft torx screws, covered with plastic covers in matching color of the cabinets.
