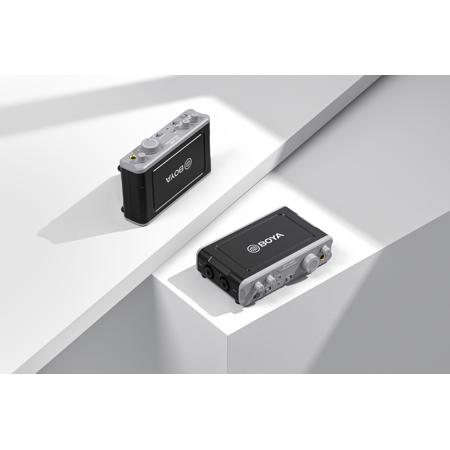

BOYA BY-AM1 Dual-Channel Audio Mixer
See all BOYA items

BOYA BY-AM1 Dual-Channel Audio Mixer

SKU: BOYAM1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BOYA BY-AM1 Specifications

  • Compatibility

    Computers, laptops, speakers

  • Frequency Response

    Microphone Inputs: 20Hz-20kHz +/-0.1dB
    Line Inputs: 20Hz-20kHz +/-0.1dB
    Instrument inputs: 20Hz-20kHz +/-0.1dB
    Headphone outputs: 75dB
    Line/monitor outputs: 80dBU

  • THD

    Headphone outputs: <0.01%
    Line/monitor outputs: <0.01%

  • S/N

    Headphone outputs: 6dBu
    Line/monitor outputs: 10dBu

  • Maximum Input Level

    Microphone Inputs: 9dBu(at minimum gain)
    Line Inputs: 15dBu(at minimum gain)
    Instrument inputs: 8dBu(at minimum gain)
    Headphone outputs: <10 Ohm
    Line/monitor outputs: 470 Ohm

  • Gain Range

    Line Inputs: 50dB

  • Impedance

    Line Inputs: 47K Ohm

  • Sampling Rates

    Headphone outputs: 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz

  • USB Connection

    Headphone outputs: USB 2.0(USB-B connector)

  • Power Requirements

    Headphone outputs: Powered by computers

  • Power Supply

    Headphone outputs: 48V Phantom Power

  • Dimensions

    6.3 x 4.1 x 1.6" (160 x 105 x 41.5mm)

  • Weight

    1.44 oz (408.5g)

  • UPC Code

    6971008027624

About BOYA BY-AM1

The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones, which allows you to easily mount and control input devices, and to transmit the output signal to your computer.

Thanks to built-in 6.35mm/XLR combo inputs, it's convenient to accept signal directly from XLR microphones or electric instruments, like guitar and bass.

It can support 44.1k-192kHz sampling rates audio without any sound compromise, when connecting to xlr microphone and instruments input devices.

Thanks to the 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, you can hear your live input signal with no distracting echo or latency adapter, you can hear you live input signal with no distracting echo or latency through the headphone.

It can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to tripod and other accessories

BOYA BY-AM1 Features

  • Dual-channel audio mixer for dynamic/condenser XLR mics, line-level or instrument signals
  • Compatible with computers, laptops, speakers
  • No-latency headphone monitoring (Includes 6.35mm to 3.5mm TRRS adapter)
  • 6.35mm/XLR combo inputs,6.35mm audio outputs, USB 2.0 connection
  • Supply 48V phantom power via XLR input
  • 1/4"threaded hole for tripod mounting

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual-channel audio mixer for dynamic/condenser XLR -level or instrument signals
  • Compatible with computers, laptops, speakers
  • No-latency headphone monitoring (Includes 6.35mm to 3.5mm TRRS adapter)
  • 6.35mm/XLR combo inputs,6.35mm audio outputs, USB 2.0 connection
  • Supply 48V phantom power via XLR input
  • 1/4"threaded hole for tripod mounting

What's in the box:

  • BY-AM1 Dual-Channel Audio Mixer
  • 6.6' USB-A to USB-B Cable
  • 6.35mm to 3.5mm TRRS Audio Adapter
  • BOYA 1 Year Limited Warranty
