BOYA BY-WM8 Pro-K2 UHF Dual-Channel Wireless Microphone System with One Receiver and Two Transmitter

SKU: BOYBYWM8PRK2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-05-02T08:40:13

Rated 5 out of 5

Perfect professional product

Perfect professional product

eric v.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BOYA BY-WM8 PRO-K2 Specifications

System
  • Oscillator type

    PLL Synthesized Control Oscillator

  • Carrier Frequency Range

    576.4 MHz-599.9 MHz (Transmitter: A )
    568.6 MHz-592.1 MHz (Transmitter: B )

  • Channels

    48

  • Frequency response

    40 Hz to 18 kHz (+/-3dB)

  • Operation range

    300' (100m) (without obstacle)

  • Operating temperature

    14 Degree F to 122 Degree F (-10 Degree C to +50 Degree C)

  • Storage temperature

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

Transmitter

Jump to...
  • RF output power

    <=10 mW

  • Antenna

    1/4 Lambda wire antenna

  • Spurious emission

    250 nW or less

  • Audio input connector

    3.5mm mini jack

  • Reference audio input level

    -60 dBV (MIC input, 0 dB attenuation)

  • Reference deviation

    +/-5 kHz (-60 dBV, 1 kHz input)

  • Input frequency range

    20 Hz-20 KHz

  • Distortion

    0.5% or less

  • Power supply

    Two AA size batteries

  • Operation time

    About 6 hours

  • Dimensions (H x W x L)

    8.19 x 2.64 x 1.14" (208 x 67 x 29mm)

  • Weight

    2.82 oz (80g) without batteries

Receiver

Jump to...
  • Antenna

    1/4 Lambda wire antenna

  • Audio input connector

    3.5mm mini jack

  • Signal-to-noise ratio

    70 dB or more

  • Distortion

    0.5% or less

  • Headphone output level

    30mW (16 Ohm)

  • Audio output level

    -60 dBV

  • Power supply

    Two AA size batteries

  • Operation time

    About 4 hours

  • Dimensions (H x W x L)

    8.19 x 2.64 x 1.14" (208 x 67 x 29mm)

  • Weight

    3.17 oz (90g) without batteries

Lavalier Microphone

Jump to...
  • Transducer

    Back electret Condenser

  • Polar pattern

    Omni-directional

  • Frequency Range

    35Hz - 18 KHz

  • Signal / Noise

    74dB SPL

  • Sensitivity

    -30dB +/-3dB / 0dB=1V/Pa, 1 kHz

  • Connector

    3.5mm locking mini plug

  • Length

    4' (1.2m)

  • UPC Code

    6971008021066

About BOYA BY-WM8 PRO-K2

FEATURED REVIEWS

Perfect professional product

By eric v.

Perfect professional product

The BOYA BY-WM8 Pro-K2 is an upgrated UHF Dual-Channel Wireless Microphone System for capturing audio with dual subjects, features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry.

The package is suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG),electronic field productions (EFP), film production, business and educational applications, and more.

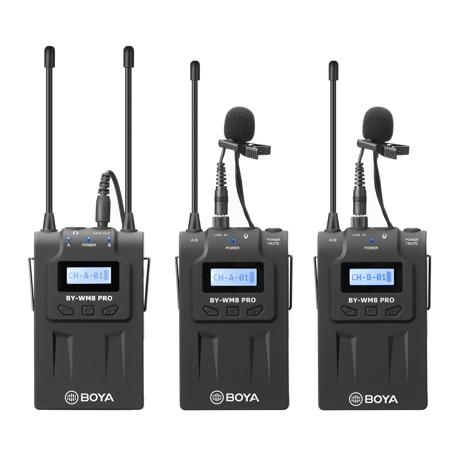

The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.

The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.

• Digital Companding
• Up to 48 Selectable channels
• Dual-Channel
• Up to 32 MHz of transmission bandwidth
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• User-friendly menu operation
• Muting function
• Wide range of accessories adapts the system to most of requirements
• Locked-plug avoids accidental changing of settings
• Transmission Range: up to 100 meters / 300

Note: To save battery life, if only use one transmitter, please turn OFF the other channel from receiver.

BOYA BY-WM8 PRO-K2 Features

  • Dual-Channel Wireless Receiver
  • 48 Selectable UHF Channels
  • Broadcast-Quality Sound
  • Includes Two Transmitters and One Receiver
  • Seletable Stereo and Mono Mode
  • Mic and Line-in
  • Selectable Mute function
  • Easy-to-read LCD displays
  • Automatic LCD-locked Function
  • Monitoring sound by headphone output (Receiver)
  • Operation range can reach up to 100m(300') (without obstacle)
  • Two AA batteries for both transmitter and receiver

Key Features

  • Dual-Channel Wireless Receiver
  • 48 Selectable UHF Channels
  • Broadcast-Quality Sound
  • Includes Two Transmitters and One Receiver
  • Seletable Stereo and Mono Mode
  • Mic and Line-in

What's in the box:

  • 2x Body-Pack Transmitters (TX8 Pro)
  • 1x Portable Receiver (RX8 Pro)
  • 2x Omni-Directional Lavalier Microphone
  • Stereo 3.5mm Mini Plug Cable
  • XLR Output Cable
  • 2x Microphone Holder Clip
  • 2x Wind Screen
  • 3x Belt Clip
  • Shoe Mount Adapter
  • Carry Case
  • User Manual
  • BOYA 1 Year Limited Warranty
