BOYA BY-EM20 USB Cardioid Condenser Microphone with 3.5mm Input/Output
See all BOYA items

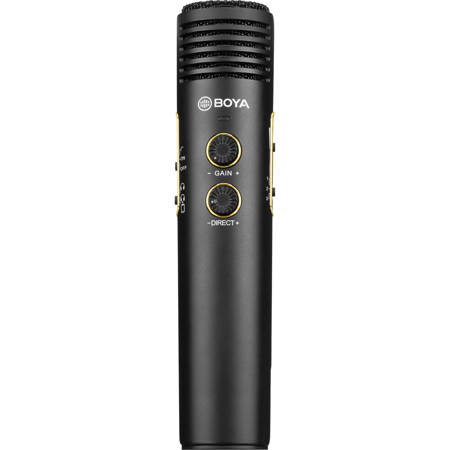

BOYA BY-EM20 USB Cardioid Condenser Microphone with 3.5mm Input/Output

SKU: BOYEM20
Be the first to review this item

This item is no longer available.

Recommended Alternatives

BOYA BY-DM10: Picture 1 regular
BOYA BY-DM10 Digital Lavalier Microphone for iOS, Mac and Windows
$100.00
BOYA BY-DM20: Picture 1 regular
BOYA BY-DM20 Dual-Channel Recording Kit for iOS, Android & Laptop
$125.00
BOYA BY-DM200: Picture 1 regular
BOYA BY-DM200 Cardioid Digital Stereo X/Y Condenser Microphone
$50.00
BOYA BY-M100UA: Picture 1 regular
BOYA BY-M100UA Omni-Directional Mininature Condenser Mic with USB Connector
$31.25
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BOYA BY-EM20 Specifications

Microphone

Microphone

Jump to...

  • Primary Applications

    Studio Recording, Podcast, Web-Streaming, Recording to Mobile Device

  • Form Factor

    Handheld

  • Intended Sound Sources

    Vocals, Speech/Voice Over, Instrument

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    Condenser

  • Polar Pattern

    Cardioid

  • Orientation

    End Address

  • Circuitry

    Solid-State

  • High-Pass Filter

    None

  • Gain Adjustment

    Yes

  • Indicators

    1x Red/White Single LED (Clip, Status)
    1x Multi-Segment LED (Battery)

  • On-Board Controls

    Gain/Sensitivity, Headphone Volume

  • Windscreen

    Foam (Included)

Performance

Jump to...

  • Frequency Range

    20 Hz to 20 kHz

  • Maximum SPL

    120 dB SPL

  • Impedance

    100 Ohms

  • Sensitivity

    -30 dB (1 kHz)

  • Signal-to-Noise Ratio

    85 dB

Connectivity

Jump to...

  • Output Connectors (Analog)

    1 x 1/8" (3.5mm) TRRS Female (on Mic)

  • Output Connectors (Digital)

    1 x USB Type-C Female (on Mic)

  • Input Connectors

    1x 1/8" (3.5mm) TRS Female (on Mic)

  • Headphone Connector

    1x 1/8" (3.5mm)

  • Cable Length

    3.9' (1.2m)

  • Wireless Connectivity

    None

  • Bluetooth

    None

Digital Audio

Jump to...

  • A/D Conversion

    16-Bit

  • Sample Rate

    48 kHz

  • Digital Signal Processing

    Sound Presets

  • Operating System Support

    Android, Windows, macOS/OS X

  • Available Port

    USB (Interface Unspecified)

Power

Jump to...

  • Bus Power

    USB

  • Operating Voltage

    3.7 to 5 V (Battery Power, USB Bus Power)

  • Battery

    1x Built-In (Included)

  • Battery Chemistry

    Lithium-Ion

  • Battery Capacity

    2600 mAh

  • Approximate Battery Life

    24 Hours

General

Jump to...

  • Color

    Black

  • Mounting

    Desktop Stand, Mic Clip/Stand Adapter (with Included Hardware)

  • Included Case

    Pouch

  • Included Filters

    None

Battery

Jump to...

  • Battery Info

    required, included

  • Battery Material

    lithium ion

  • Battery Type

    -

  • Battery Quantity

    1

Physical

Jump to...

  • Dimensions (Diameter x L)

    1.5 x 7.5" (38 x 190mm)

  • Weight

    13.1 oz (371g)

Other

Jump to...

  • UPC Code

    6971008027945

About BOYA BY-EM20

BOYA BY-EM20 features both USB Type-C and 3.5mm outputs for compatibility with a wide range of mobile devices. BY-EM20 includes an external audio input, built-in mixer, headphone jack, three DSP modes, and desktop tripod.

This mic offers a cardioid polar pattern to help minimize background sounds and ambience, focusing the audio capture on what's in front of the capsule, picking up less sound from the back and, to some degree, the sides. The mic captures a wide frequency response of 20 Hz to 20 kHz and offers three different pickup modes-Karaoke, Streamer, and MC.

BOYA BY-EM20 Features

  • Studio Recording, Podcast, Web-Streaming, Recording to Mobile Device Primary Applications
  • Handheld Form Factor
  • Vocals, Speech/Voice Over, Instrument Intended Sound Sources
  • Mono Sound Field
  • Pressure Gradient Operating Principle
  • Condenser Capsule
  • Cardioid Polar Pattern
  • End Address Orientation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Studio Recording, Podcast, Web-Streaming, Recording to Mobile Device Primary Applications
  • Handheld Form Factor
  • Vocals, Speech/Voice Over, Instrument Intended Sound Sources
  • Mono Sound Field
  • Pressure Gradient Operating Principle
  • Condenser Capsule

What's in the box:

  • BOYA BY-EM20 USB Cardioid Condenser Microphone with 3.5mm Input/Output
  • USB Type-C Cable (3.9')
  • USB Type-C to USB Type-A Cable (3.9')
  • 2x 3.5mm TRRS Cable (3.9')
  • Mini Tripod
  • Mic Clip
  • Drawstring Pouch
  • BOYA 1 Year Limited Warranty
