Review Summary
DLP
10000
WUXGA (1920x1200)
16:10
3,000,000:1
30-bit (1.07 billion colors)
Laser
A. Normal 20000 hrs, B. ECO 38000 hrs, D. Dimming 70000 hrs
(Optional Lens) Ultra Short Throw: 0.38 LS1ST3A Short throw 0.77-1.1 LS1ST2A Wide Zoom 2: 1.1-1.3 LS1ST1A Wide Zoom 1: 1.25-1.6 LS1SDA Standard: 1.54-1.93 LS1LT0 Semi long: 1.93-2.9 LS1LT1 Semi long 1: 2.22-3.67 LS1LT2 Long zoom 1: 3.58-5.38 LS1LT3 Long Zoom2: 5.31-8.26
(Optional Lens) Long Zoom 1: 1.5x, (Optional Lens) Long Zoom 1: 1.67x, (Optional Lens) Semi Long: 1.5x, (Optional Lens) Semi Long: 1.65x, (Optional Lens) Semi Throw: 1.28x, (Optional Lens) Standard: 1.25x, (Optional Lens) Ultra Short Throw: Fixed, (Optional Lens) Ultra Wide: 1.25x, (Optional Lens) Wide Zoom: 1.18x
LS1ST4 Ultra Short Throw (5J.JCY37.001) LS1ST3A Short throw (5J.JPN37.001) LS1ST2A Wide Zoom 2 (5J.JPN37.002) LS1ST1A Wide Zoom 1 (5J.JPN37.003) LS1SDA Standard (5J.JPN37.004) LS1LT0 Semi long (5J.JPN37.005) LS1LT1 Semi long 1 (5J.JAM37.051) LS1LT2 Long zoom 1 (5J.JAM37.031) LS1LT3 Long Zoom2 (5J.JAM37.041)
0%
2D, Vertical +/- 30 degrees; Horizontal +/- 30 degrees
(Optional Lens) Ultra Short Throw: V: (-3% - +7%) H: (-5%- 5%) LS1ST3A Short throw: '-15 - +55% Vertical; -5% - +5% Horizontal LS1ST2A Wide Zoom 2 '-15 - +55% Vertical; -5% - +5% Horizontal LS1ST1A Wide Zoom 1: '-15 - +55% Vertical; -5% - +5% Horizontal LS1SDA Standard '-15 - +55% Vertical; -5% - +5% Horizontal
LS1LT0 Semi long (5J.JPN37.005) '-15 - +55% Vertical; -5% - +5% Horizontal LS1LT1 Semi long 1 0 - +50% Vertical; -10% - +10% Horizontal LS1LT2 Long zoom 1: 0 - +50% Vertical; -10% - +10% Horizontal LS1LT3 Long Zoom2: 0 - +50% Vertical; -10% - +10% Horizontal
95%
3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1, User 2, Video
33.4 ms (1080P 60Hz)
VGA (640 x 480) to WUXGA_RB (1920 x 1200)
15K-135KHz
23-120Hz
1x
1x
2x
1x
1x
1x
1x
1x
USB Type B-1 (service)
1x
1x
1x (3.5mm Mini Jack)
1x (3.5mm Mini Jack)
1x (3.5mm Jack)
No Speaker
1x
32 - 104 Degree F (0 - 40 Degree C)
AC 100 to 240 V, 50/60 Hz
893W
<0.5W
<6W
42/38
19.6 x 8.3 x 23.1" (500 x 211 x 587.3mm)
59 lbs (26.8kg)
192223268562, 840046046293, 192223251779

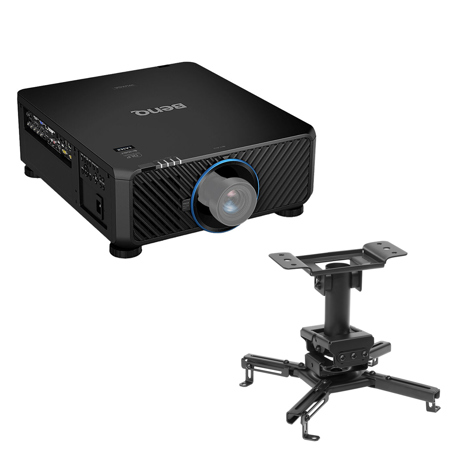

Are you seeking a projector that combines cutting-edge technology with exceptional performance for large venues? Look no further than the BenQ LU9800 WUXGA Large-Venue Laser DLP Projector, bundled with the H&A Ceiling Mount. As the world's leading DLP brand, BenQ introduces this revolutionary projector featuring proprietary DLP high brightness laser technology, designed to transform your visual experience in expansive settings.
Unmatched Image Quality with Revolutionary Laser Technology
The BenQ LU9800 projector is engineered to deliver superb image quality, thanks to its innovative laser technology. With zero-deviation alignment of laser diodes, it enhances luminous flux into the light tunnel, resulting in superior brightness and light efficacy. Dual synchronized color wheels, incorporating an additive yellow segment, stimulate precise RGBY spectra, ensuring optimal chromatic performance and vibrant color reproduction.
Durability and Performance for Demanding Environments
Built to withstand the test of time, the DLP chip in the LU9800 is hermetically sealed, protecting it from heat and ensuring over 200,000 hours of operation without degradation. The dual color wheels achieve 95% Rec.709 color coverage, producing a wider color gamut than conventional lamp-based projectors. This ensures brilliant color accuracy and consistency across multiple projections.
High Contrast and Resolution for Stunning Clarity
Experience ultra-high contrast with automatic power control, delivering a striking contrast ratio of 3,000,000:1. The projector's WUXGA resolution (1920 x 1200) surpasses Full HD 1080p, providing enhanced detail and clarity for high-resolution content. Custom Light Mode allows for consistent brightness blending, modulating light power output across 80 steps to suit various ambient lighting conditions.
Reliability and Flexibility for Continuous Operation
Designed for 24/7 operation, the BenQ LU9800 is perfect for public displays in museums and exhibitions. It offers three different light source modes to optimize energy consumption, delivering up to 70,000 hours under Dimming Mode. The projector's DLP technology ensures vibrant color endurance, with a highly durable chip rated to last over 100,000 hours without degradation.
Installation Flexibility and Ease of Use
The LU9800 offers excellent installation flexibility with multiple electrical optional lenses, maximizing throw ratio coverage. These all-glass optics, crafted in Japan, eliminate chromatic aberration for superior image quality. Enjoy dynamic installation options with 360-degree rotation and portrait projection capabilities, allowing for versatile placement on ceilings, walls, or floors.
Advanced Management and Connectivity
Easily integrate the LU9800 into your existing network with compatibility for Creston, AMX, and PJ Link control systems. The projector supports LAN control and RS-232 for reliable long-distance installations. BenQ's centralized control software enables remote management of multiple projectors, streamlining operations for IT administrators.
Seamless Transmission and Supreme Image Quality
Equipped with HDBaseT connectivity, the LU9800 ensures uncompressed transmission of video, audio, and control signals up to 100 meters. HDMI 2.0 ports allow for effortless projection of high-quality content with enhanced brightness and contrast. Connect up to three projectors for synchronized 3D content projection, creating an immersive viewing experience.
The BenQ LU9800 WUXGA Large-Venue Laser DLP Projector, bundled with the H&A Ceiling Mount, is the ultimate solution for those seeking unparalleled image quality, durability, and flexibility in large venue applications. Transform your visual presentations with this state-of-the-art projector, designed to meet the demands of any professional setting.
