Review Summary
4000 ANSI lumens
WXGA (1280 x 800)
16:10
3,000,000:1 (FOFO)
30-bit (1.07 billion colors)
Laser
Normal: 20000 hrs
ECO: 30000 hrs
Yes
0.521
Fixed
F=2.8, f=17.51 mm
112% (Full-Height)
2D, (Auto) Vertical +/- 30 Degree; Horizontal +/- 30 Degree
93%
Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid
16.7 ms (WXGA 60Hz)
VGA (640 x 480) to 4K UHD (3840 x 2160)
15K-135KHz
23-120Hz
HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
1x RJ45
2x
1x DB-9pin
15W
1x 3.5mm Mini Jack
32 to 104 Degree F (0 to 40 Degree C)
AC 100 to 240 V, 50/60 Hz
230W @ 110VAC
<0.5W
<2W
30dB/24dB (Typ./Eco.)
DLP
Black
10.99 x 4.74 x 9.03" (279.2 x 120.5 x 229.3mm)
7.48 lbs (3.4kg) (+/-100g)
840046052928
Immersive Entertainment
Blending Ready Mode
360 Degree Installation
Color Mode - sRGB Mode, Simulation Mode
300" MaxScreen
IP6X Dustproofing
LAN Firmware Update
DMS Software IT Takes Control
Installer Ready
Optimized for Multi-Projector Projects from Fast Setup to Long Term Performance.
Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
Brilliant Visuals with Stable Color and Performance

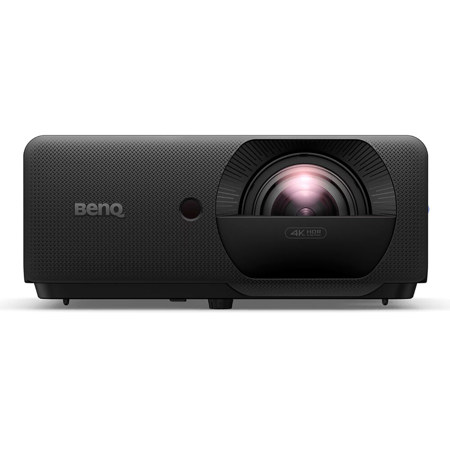

The LW830ST delivers brilliant image clarity and stable performance across every detail-from vivid Rec.709 color and high contrast to 4000-lumen brightness and 20,000-hour laser life.
BenQ WBA for Seamless Multi-Projector White Calibration
BenQ's factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Full flexibility for ceilings, walls and floors
360 Degree and Portrait Projection for Full Installation Freedom.
Up to 300-Inch Display
0.521 short throw ratio for large image from a short distance in limited spaces.
IP6X Sealed Optical Engine for Reliable Operation
Designed with a sealed optical engine tested for IP6X protection, helping maintain consistent image performance during long-term use.
Optional Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.
Auto Reset Mechanism with Built-in Timer
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
IT takes control - Streamlined Device Management
Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.
Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.
