This item is no longer available.
Tables are great for classroom or training applications because they can be used for computer work and close the flat screen down into desktop and you now have a flat work surface to work on.

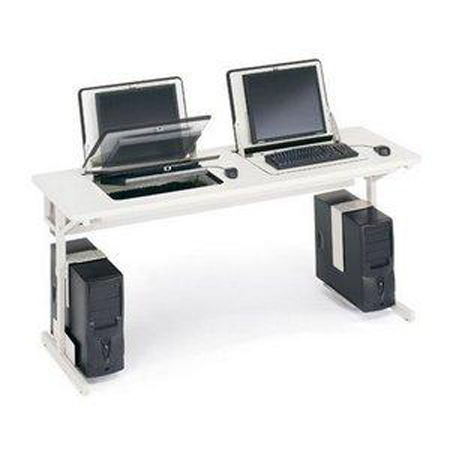

• Accommodating: Large work surface neatly flips open to reveal one flat screen LCD monitor up to 19" diagonal, see specs for monitor case size requirements. Two monitors are supported on the 66"W and 72"W tables
• Versatile: Flat screen compartment folds down and flush with the top for a flat writing work surface. Monitor compartment locks to deter tampering when closed flush into the desk top
• Adjustable: Work surface is height adjustable in one inch increments from 24" to 32" high for children or adults and tables are available in 36"w for one computer and 66"w or 72"w for two computers. The overall depth is 24"
• Power Ready: Optional power may be supplied by a 6 outlet power strip with 20' power cord, the Fluid down power system or hardwired components to connect to the building electrical infrastructure. Each system mounts to the center of the modesty panel
• Options: Includes a CPU harness which mounts to the inside or outside of either leg, 66" and 72" wide tables include two CPU holders. Standard CPU holder is adjustable for computers 6"-11-1/2"W. Slim CPU holder is adjustable for computers 3-1/2"-5-7/8"W. Note: When CPU harness is mounted on the inside of leg the height is limited. For example when height of table is set at 29"h, the maximum height the CPU's can be set at is 17"h
• Cord Friendly: A cord management bin doubles as a modesty panel which runs the entire width of the table under the work surface
• Connections SmartDeck Table has achieved GREENGUARD GOLD Certification
Monitor And Keyboard Bin Specifications
SmartDeck is designed to hold most flat panel monitors up to 19" diagonal, dependent upon the monitor case dimensions. The monitor mounts to the underside of the work surface door using 75mm or 100mm VESA compliant mounting holes and M4 metric screws. VESA compliant mounting holes must be located at or in the approximate center and not be recessed more than 1/4" into the case. Longer M4 mounting screws may be required for monitors with recessed holes.
SmartDeck will work with most monitors to 19" but specific models must be pre-tested to guarantee compatibility. In general SmartDeck supports monitor cases that are up to 20"w x 14"h and are not more than 4"d when combined with the keyboard. Monitors with VESA compliant mounting holes located at the bottom of the case will not work with SmartDeck. The monitor case must be flat where the VESA mounting holes contact the table mounting plate. The keyboard and mouse store inside the bin when closed on a retractable surface. The mouse must be stored next to the keyboard when closed. Monitor bins key lock closed for security, all tables are keyed alike.
Suggested Specifications
35SD21, 35SD21MT, 35SD27, 35SD27MT, 35SD25 & 35SD25MT are height adjustable from 24-32" in 1" increments. The width is 36"w, 66"w or 72"w depending on the model. Table top is constructed from 1" thick 45 lb. density furniture board grade substrate, covered with high pressure .03" (0.1cm)laminate and 3mm TPE T-mold trim. The modesty panel/ cord management bin is made from 18-gauge steel and runs the width of the table. Legs are constructed from 18-and 14-gauge steel tubing.
The CPU Harness is constructed from steel and mounts on the leg. 36"w model comes with one CPU Harness and the 66"w and 72"w model comes with two. Standard CPU harness adjusts 6"-11-1/2"w and slim CPU harness (MT models) adjusts 3-1/2"- 5-7/8"w. All steel parts are constructed with "prime" steel which has a 25% to 35% post-consumer recycled content and are finished in environmentally friendly powder paint. Connections SmartDeck Table has achieved GREENGUARD GOLD Certification.
Finish Options
Tables may be ordered in any standard laminate, trim and powder paint offered by Bretford for an upcharge.
Note
Laminates with a wood grain or prominent pattern will not match between the work surface and the door. Therefore it is recommended SmartDeck only be ordered with solid laminates or pattern laminates without a defined pattern or grain to them.
