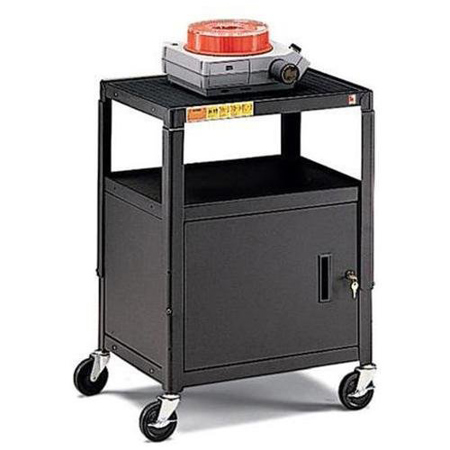

Bretford 26-42" Adjustable Height Cabinet Cart with 4" Casters

Adjustable Height Cart Assembly
Adjustable cart has three (3) 20-gauge steel shelves, each 24"W x 18"D. Each shelf is press formed so that a 1/4" lip bordering the top surface on all four sides. The top shelf has a 20-gauge steel stiffener electrically welded underneath the surface front to back. An 18" x 24" black rubber mat is placed on the top shelf. The top and middle shelf has two (2) 3/16" diameter holes centered on both the right side and the left side to accept an optional electrical assembly.

The cart has an adjustable top section that consists of one (1) 20-gauge shelf with four (4) offset 14-gauge steel legs, 21-1/4" long, welded to the shelf at each corner. Each offset leg has two (2) 1/4" diameter holes near the bottom of the section and in the center of the leg that will accept a 1/4-20 machine screw. The holes are spaced 4" apart to permit top shelf height adjustments of 26", 30", 34", 38" and 42" when matched to the bottom section of the table. Each offset leg fits over the bottom section of the cart and is secured at the desired height by a 1/4-20 machine screw. The bottom section may be an open frame or cabinet construction.

The cabinet frame construction consists of a pre-assembled 20-gauge steel cabinet with interior dimensions 23"W x 15-1/2"H x 17"D. There are four (4) 14-gauge steel 19" legs welded to the cabinet at each corner. Each 19" leg has four (4) 1/4" diameter holes down the center of the leg that will accept a 1/4-20 machine screw. Holes are 4" apart to permit table height adjustments as noted. A hard plastic caster insert is included on each leg so support mar-resistant Black hard rubber stem casters 4" in diameter. Stem casters are load rated for 115 lbs each and two include locking brakes.

• Versatile: Projector carts are ideal for supporting projectors, document cameras, computers, monitors or other audio visual equipment
• Adjustable: Carts are available with height adjustable top shelves to support your specific needs
• Safe: Top shelves include a non-slip rubber mat and all shelves include a lip to help hold materials in place when in transport
• Secure: Available with a locking lower cabinet to deter theft of materials and equipment
• Powerful: 6-outlet power strips with 20 foot cords let you project from anywhere in the room and still reach a wall outlet
• Height Adjustable AV Cart has achieved GREENGUARD GOLD Certification

Pull-Out Shelf
Pull-out notebook shelves are constructed of 18-gauge steel and 20"W x 14"D. Model CA2642NS have one (1) pull-out shelf, model CA2642DNS have two (2) shelves which pull-out on opposite sides. Shelves extend on snap in slides that secure to steel plates welded between the legs of the top section. Each pull-out shelf has 1-1/2" height clearance when closed and is rated for up to 15 lbs. of equipment.

Electrical Unit
Models which include a 6-outlet power strip with 20' power cord and cord winder bracket are UL listed. Electrical units are included on fixed height carts and optional on adjustable height carts. Electrical units feature an on/off switch with overload protection and attach to the top or middle shelf using pre-drilled holes and wing nuts

Finish Options
Projector carts are available as standard in a black pumice powder paint. Additional finishes are available by special order only for an up-charge.

Construction And Environmental Testing
Height Adjustable AV Cart has achieved GREENGUARD GOLD Certification.

Recycled Content
Carts are constructed with a steel that is comprised of a minimal 25% to 35% post-consumer recycled material. All steel components are completely recyclable at the end of the product life cycle.
