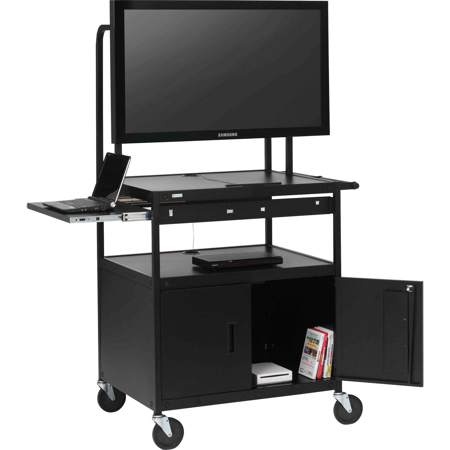

Bretford UL Listed Flat Panel Cabinet Cart for 26"-42" Monitors with Pull-Out Shelf, 6 Outlet, Up to 75 lbs Capacity

These flat panel carts have been independently tested and certified by Underwriter Laboratories for institutional use and are ideal for areas where children are present.

• Accommodating: UL Listed for use with up to a 100 lb. flat panel monitor, recommended monitor size between 26" and 52"
• Versatile: Universal mounting bracket is adjustable to fit the mounting hole patterns on the back side of monitors
• Interactive: Models are available with a pull-out shelf that allows easy use with a laptop or other mobile device with the monitor for sharing of data
• Sturdy: All steel construction features interlocking shelves and uprights for a solid platform that will provide years of use
• UL Listed Flat Panel Cart has achieved GREENGUARD GOLD Certification

Frame Assembly
The UL Listed flat panel carts feature a leg frame constructed from 1" square, 18-gauge steel tubing. Legs form the four corners of the cart and the front legs are 34"L and the rear legs are 60"L and form an arch that serves as the mounting platform for the monitor. Each leg includes three 13-gauge steel W mounting brackets that are arc welded in place to support and secure the three equipment shelves. The bottom of each leg includes a stem insert for a 5" swivel caster. Swivel casters are mar resistant hard rubber and measure 5" diameter.

Equipment Shelves
Each cart includes three full sized equipment shelves. Shelves fit over the W mounting brackets welded to each leg and secure in place using 1/4" square head bolts and hex nuts, two per bracket. Shelves are formed from 18-gauge steel and feature a 1/8"H border along the outer edges. Top and middle shelves include a 3" diameter grommet centered on the rear edge for cord management. A handle secures to either side of the top shelf.

The top shelf also includes two square cut outs on the outer edges that the arch formed by the rear legs secure through. The middle shelf includes two 3/16" holes centered on both short sides to attach an optional electrical power strip. Shelves on FP42 series carts are 32"W x 27"D. Shelves on FP60 series carts are 37"W x 27"D. All models feature a top shelf at 40"H, middle shelf at 27"H and bottom shelf at 6-1/2"H. Shelves are UL rated for 50 lbs. of equipment each.

Pull-Out Shelf
Some models include a pull-out shelf that mounts to brackets below the top equipment shelf. The pull-out shelf is constructed from 18-gauge steel and extends on full extension slides which snap into mounting brackets. Pull-out shelf mounts to the opposite side of the cart as the top shelf handle and is 14"W x 23"D and extends from the cart 23" with 3"H clearance from the top shelf. Mounting brackets are made of 18-gauge steel and secure to pre-drilled holes in the front and rear leg tubes. Pull-out shelf is rated for 15 lbs. of equipment.

Storage Cabinet
Models FP42ULC and FP42MULC include a locking steel storage cabinet. Cabinet side and rear panels are constructed from 20-gauge steel and fasten to the lower W brackets welded to each leg assembly. Cabinet doors are constructed from 20-gauge steel and fasten to the front leg assemblies using pre-drilled holes and 1/4-20 x 1/2" machine screws. Right door assembly includes a built-in key lock, all carts are keyed alike.

Monitor Mount
Each cart includes a horizontal plate that secures to the front arch of the rear leg assemblies. The rear plate supports two hook arms which mount the back of the flat panel monitor. Each hook arm features multiple mounting holes to align up with the mounting holes in the back of the monitor which is then hung in place on the horizontal plate.

The hook arms are secured in place using two U brackets that secure the bottom of each bracket to the mounting plate. On FP42 series carts, the monitor hook arms are able to support a mounting hole pattern up to 400mm high and 700mm wide. On FP60 series carts, the monitor hook arms are able to support a mounting hole pattern up to 400mm high and 850mm wide.

Courtesy Hardware Pack
Each cart mount includes a courtesy hardware pack with various lengths of M4, M5 and M6 metric screws, washers and spacers that are intended to secure the monitor to the hook arms. Additional hardware may need to be sourced if the items provided are not supported by your monitor.

Flat Panel Monitor Requirements
Your flat panel monitor must be suitable for wall mounting and have mounting hole patterns within the specified adjustment dimensions to be used on the UL Listed flat panel carts. UL Listed flat panel carts are safety tested based on monitor weight and not monitor size. Monitor size recommendations are provided, but monitors outside the recommended sizes are sufficient to use as long as they do not exceed the maximum weight requirement.

Note that larger monitors extend beyond the width of the top shelf and monitors greater than the recommended size may make it difficult to maneuver the cart between locations. Monitors greater than 55" diagonal may be too large to fit dependent upon where the mounting holes are located on the back of the monitor.

Electrical Unit
Models include a 6-outlet power strip with 20 foot power cord and cord winder bracket. Electrical units are UL Listed, feature an on/off switch with overload protection and attach to the middle shelf using pre-drilled holes.

Underwriters Laboratories Certification
FP42 series carts have been certified by UL to comply with standards 1678 for tall institutional carts and are certified for the United States and Canadian markets. Models FP42 are designed for use with flat panel monitors up to 75 lbs. Models FP60 are designed for use with flat panel monitors up to 100 lbs. All models have equipment shelves that are designed to support up to 50 lbs. each and some models include a pull out shelf designed to support up to 15 lbs.

Construction And Environmental Testing
UL Listed Flat Panel Cart has achieved GREENGUARD GOLD Certification.

Finish Options
UL Listed carts are available as standard in black pumice powder paint.

Recycled Content
Carts are constructed with a steel that is comprised of a minimal 25% to 35% post-consumer recycled material. All steel components are completely recyclable at the end of the product life cycle.
