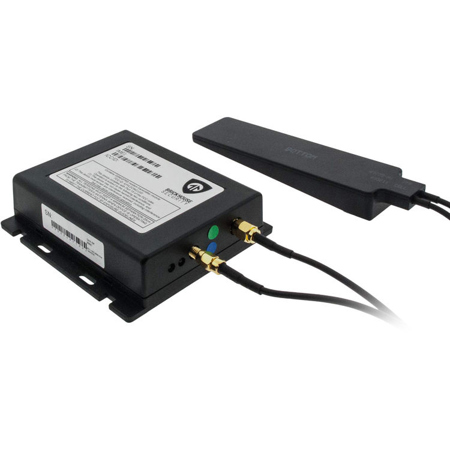

Brickhouse Security Livewire GPS Vehicle Tracker

SKU: BRGPSLW

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Brickhouse Security Livewire GPS Tracker Specifications

  • Digital Inputs

    6

  • Analog Input

    1

  • Relay Drive Outputs

    4x (150mA max. each)

  • Switched Output

    1x 12V (1.2A max.)

  • LED Drive Output

    1

  • RS-232 Port

    1x 5-wire

  • 1-Wire Port

    Dallas iButton, Temp Sensors

  • Status LEDs

    2; GPS and Cellular

  • Communication

    Quad-Band: CDMA2000 1xRTT (IS-2000)
    Class 0 (Tx:824-849MHz) for 869/894 Bands
    Class 1 (Tx: 1850-1910MHz) for 1930/1990 Bands

  • GPS Antenna Connector

    SMA

  • Cellular Antenna Connector

    SMC

  • Power/Aux Connector

    20-pin 3mm Molex

  • Data Connector

    10-pin 3mm Molex

  • Material

    2-piece ABS enclosure

  • Carrier/Regulatory Approvals

    Verizon, FCC, PTCRB, RoHS Compliant

  • Shock and Vibration

    SAE J1455
    EMC/EMI: SAE J1113
    GPS Technology (SuperSense Technology)
    GPS Receiver: 50-Channel L1 C/A Code, WAAS/SBAS

  • Sensitivity

    161dBm Tracking, Nav, Reacquisition
    147dBm Cold start (un-aided)

  • Horizontal Accuracy

    2.5m, 2.0m SBAS (CEP 50%)

  • Time-to-First-Fix

    27s (at -147dBm, Cold start)

  • Power Consumption

    Operating: 95mA (avg), 680mA (peak Tx)
    Standby 2 (SMS/UDP Wake-Up): 24mA
    Standby 1 (Local Wake-Up): 13mA
    Sleep (Ignition Only Wake-Up): <1mA (typical, at 12.8 vdc)

  • Operating Voltage

    8 to 30V DC

  • Operating Temperature

    -22 to 185 deg. F (-30 to 85 deg. C)

  • Storage Temperature

    -40 to 185 deg. F (-40 to 85 deg. C)

  • Humidity

    5 to 95% non-condensing

  • Dimensions (LxWxH)

    4.1 x 3.7 x 1.1" (104.14 x 93.98 x 27.94mm)

  • Weight

    4 oz (113.40g)

  • UPC Code

    609613886904

About Brickhouse Security Livewire GPS Tracker

Pinpoint Your Vehicles with This Hardwired, Totally Covert Pro-Grade GPS Tracker
This hardwired, professional-grade vehicle tracker gives you real-time location updates and includes a backup battery with 12 hours of tracking when the vehicle is powered off.

• Completely Invisible When Installed
• New iPhone & Android App Makes Mobile Tracking Easier
• The Best Reporting Coverage in the US On the Verizon Network

The Ultimate in Professional Vehicle Tracking
The Livewire is a completely covert GPS tracker that easily installs to a car's power source. With 30-second location updates and an external antenna to maximize performance, this powerful hidden car tracker puts you in total control of individual vehicles or fleets - and drivers will never know it's there unless you tell them. Perfect for tracking fleet vehicles, this best-in-class GPS device features improved accuracy and it's designed specifically to make locating and routing vehicles as simple as possible.

What sets the Livewire apart from similar hardwired trackers is its backup battery. Enjoy an unlimited power supply while the car is running and, when the car is off, it will continue to provide location information; ideal for recovering a vehicle if it's been stolen. The backup battery will last nearly 12 hours.

Why Livewire?
• Hardwired, No Batteries Required
• 30-Second Location Updates
• Rapid Track Lets You Switch to Even Faster Tracking When You Need it
• External Antenna for Increased Accuracy
• Up to 12-Hour Backup Battery

This vehicle tracker runs on BrickHouse Security's exclusive GPS platform, giving you a full range of features. Through our easy-to-use platform, you're able to receive speed alerts via text or email if a vehicle exceeds any speed you select. And our new Rapid Track feature lets you switch to an even faster tracking speed for brief periods of time when you need it most (desktop and laptop use only).

You can also set geofences, which send you an instant message the moment a vehicle enters or exits a predefined zone. Access highly detailed reports of a car or fleet's travel history, in addition to viewing the tracker's location in real time on three customizable map views. Access all of these features from any device with an internet connection and check in on your vehicle location conveniently using the free, intuitive app.

For the most accurate tracking available, the Livewire reports location on the Verizon network, which offers the best cellular coverage in the United States. Once your tracker has been installed, it may take up to 24 hours for it to connect to Verizon and begin reporting. Also note that this unit does not track outside the US.

Perfect for Tracking
• Fleet Vehicles
• Family Cars
• Teen Drivers
• Small Businesses

What's in the box:

  • Brickhouse Security Livewire GPS Vehicle Tracker
  • Wiring Harness
  • Antenna
  • Brickhouse Security Lifetime Warranty
