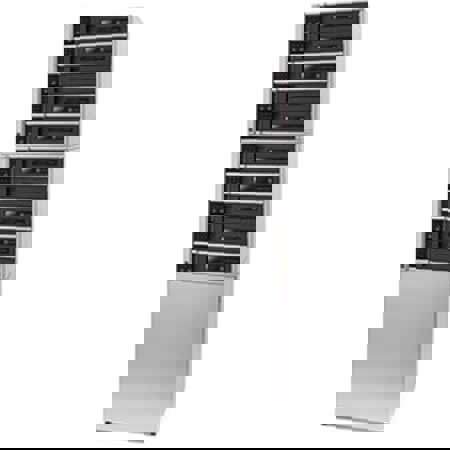

Bretford Techguard 10-Bay Charging Locker with Charging Stand

The TechGuard Charging Locker is available in 10-bay configuration to fit your location's specific needs. Each bay offers one AC outlet for charging laptops, Ultrabooks and Chromebooks and two USB ports both capable of providing up to 2.4 Amp for full-rate charge of tablets and phones.

• Efficient: Allows the charging of multiple devices at one time
• Spacious: Offers plenty of space to fit devices as large as a 15.5" laptop
• Security: Devices are secured behind steel construction, a polycarbonate window and a 4-digit passcode
• Availability Indicators: Green LEDs indicate which bays are available; Red LEDs indicate which bays are locked
• Versatility: Choose from multiple models and mounting options to fit your needs
• Proven: UL 60950-1 Certified for Safety of Information Technology Equipment

Locker Assembly
TechGuard Charging Locker cabinet ships fully assembled and is constructed using 18-gauge steel. The 10-Bay solution includes two assembled 5-Bay units. Each locker bay includes a 16-gauge steel door that is mounted to the front of the locker chassis and secures to a unified single solid steel bar hinge, connecting all the doors together.

The face of each door includes a polycarbonate clear-view window to enable administrators easy visual access to the interior contents. Door assemblies are constructed for field replacement should they become damaged. The 10-Bay solutions ship via pallet and only by truck.

Electronic Storage Bay Door Locks
Each individual storage bay door includes an electronic keypad lock, mounted to the left of the door. The lock uses a personal 4-digit passcode for locking and requires the user to reset the combination to their personal code prior to each use. Bay doors will not lock and the bay remains accessible unless the user has entered a new personal code. The door keypad features a locked and unlocked icon, each with LED indicator.

When a bay is open the unlocked icon will be framed in a Green LED light. With the bay closed, once a personal code has been entered the locked icon will be framed with a Red LED and the other icon will be dark, indicating the door has been secured. Administrative access to each storage bay in the locker bank is provided through two override access cards, which are included. Each locker cabinet assembly, regardless of the number of storage bays, includes two RFID cards. The blue "Access" card allows an administrator to enter each locker for inspection and keeps the current user personal lock code intact.

The green "Reset" card allows an administrator to enter each locker and resets the personal lock code. The door remains unlocked until the user enters a new personal lock code. Cards feature a unique radio frequency that correspond only with their locker bank and will not open other locker banks. Utilizing Bretford Customization Services, specifiers can request a single RFID code for all locker units.

The electronic keypad lock is powered by plugging the locker/bay to a standard AC electrical outlet and does not require the maintenance of batteries for operation. In the event of a power failure the locker bays may be accessed through the Jump Starter Accessory Kit, which provides a cable and battery pack to provide power to unlock individual compartments.

Electrical Details
TechGuard Charging Lockers are powered by a standard AC outlet using a 10-foot power cord. The 10- foot power cord plugs into each cabinet using an IEC connection. Utilizing Bretford Customization Services, specifiers can request lockers to be hardwired to the building electrical supply.

Each 10-bay locker requires one dedicated 15- amp electrical circuit. Each device storage bay features a charging module that includes one AC outlet and two 2.4 Amp USB charging ports, allowing for the charging of up to three devices. The charging module is located at the left side of the bay, located behind the lock at the front of the storage bay.

The interior of each storage bay features a LED courtesy light to illuminate the interior and make it easier for the user to plug devices into power outlets. The interior lighting is programmable to be door activated, turning on when the door is opened and off when the door is closed (default mode); always illuminated to show the bay contents; or always off.

Mounting Requirements
The 10-Bay Charging Locker must be combination floor/ wall mounted. The 10-bay Charging Locker include a floor pedestal base and wall bracket for securing locker banks. Always use a professional installer when mounting Charging Lockers.

Finish Options
TechGuard Charging Lockers are available in platinum (PL) powder paint, with anthracite (AN) storage bay doors.

Construction And Environmental Testing
Lockers are constructed from prime steel, which contains 25% to 35% post-consumer recycled content.

Regulatory Testing
The TechGuard Charging Locker units have been tested and certified by Underwriter Laboratories to comply with UL 60950-1 standards for Informational Technology and Equipment. In addition to testing electrical components, certification to UL 60950-1 indicates the product conforms to all construction and stability safety testing.
