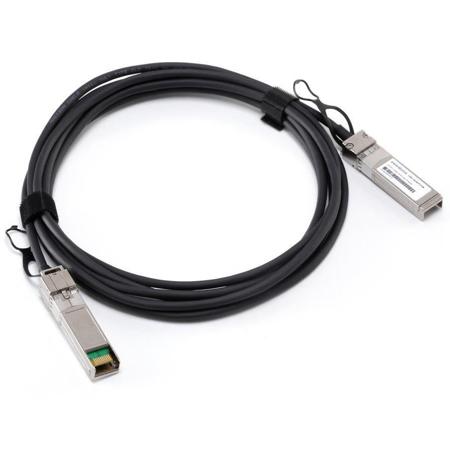

Brocade 10 Gbps Direct Attached SFP+ Copper Cable, Twinaxial Cable, 16.4', Blue (Pack of 8)

SKU: BRTWX0508

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Brocade 10 Gbps Direct Attached SFP+ Copper Cable, Twinaxial, 16.4', Blue 8-Pack Specifications

  • Performance

    10.5 Gbps line speed, full duplex
    Bit error rate: better than 10E-12

  • Media

    Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+) Copper Cable

  • Operating Parameters

    Supply voltage: 3.3 V
    Power consumption (per end): max 0.57 W

  • Wire AWG

    5 m Cable: 28 AWG or 30 AWG

  • Color

    Blue

  • Size

    16.4 Ft / 5m

  • Storage Temperature

    -40 Degree C to 85 Degree C / -40 Degree F to 185 Degree F

  • Operating Temperature

    0 Degree C to 70 Degree C / 32 Degree F to 158 Degree F

  • UPC Code

    888793078648

About Brocade 10 Gbps Direct Attached SFP+ Copper Cable, Twinaxial, 16.4', Blue 8-Pack

Today's enterprise data center networks are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to better meet new business requirements. As speed and performance needs increase, modern copper cables have become an integral part of overall system design. However, copper cable design margins and parameters vary widely, and can be the difference between an optimized, highly reliable network and incompatibility issues that drive up support costs.

The Brocade 10 Gbps Direct Attached Small Form-Factor Pluggable (SFP+) copper cable is optimized to fully leverage Brocade 10 Gbps solutions. Products supporting these cables include Fiber Channel over Ethernet (FCoE)/Converged Enhanced Ethernet (CEE) switches, Converged Network Adapters (CNAs), and 10 Gigabit Ethernet (GbE) switches and routers. These cables, also known as Twinax cables, are suitable for in-rack connections between servers and top-of-rack switches. In addition, they provide state-of-the-art performance, helping IT organizations achieve high levels of infrastructure consolidation while expanding application and service capabilities.

END-TO-END COMPATIBILITY AND RELIABILITY
Brocade 10 Gbps Direct Attached SFP+ copper cables support highly reliable operations in enterprise networks and are optimized for Brocade switching platforms. They undergo rigorous qualification and certification testing to provide an end-to-end solution that is easier to maintain - helping improve the availability of networks supporting mission-critical applications.

Brocade 10 Gbps Direct Attached SFP+ Copper Cable, Twinaxial, 16.4', Blue 8-Pack Features

  • Hot-swappable, low-voltage (3.3 V) cable assemblies that connect directly into SFP+ modules at both ends
  • Use high-performance integrated duplex serial data links for bidirectional communication
  • Designed for multi-gigabit data rates up to 10.5 Gbps
  • Comply with the SFP mechanical (SFF-8431) and electrical interface (SFF-8432) standards
  • SFP+ MSA compliance
  • Hot-pluggable feature that enables organizations to change SFP+ compatible cables/modules without having to power down the system
  • Compliance with Restriction on Hazardous Substances (RoHS) directive

Key Features

  • Hot-swappable, low-voltage (3.3 V) cable assemblies that connect directly into SFP+ modules at both ends
  • Use high-performance integrated duplex serial data links for bidirectional communication
  • Designed for multi-gigabit data rates up to 10.5 Gbps
  • Comply with the SFP mechanical (SFF-8431) and electrical interface (SFF-8432) standards
  • SFP+ MSA compliance
  • Hot-pluggable feature enables organizations to change SFP+ compatible cables/modules without powering down
