Brunton GEO Pocket Transit Compass, 0-90deg. Scale
See all Brunton items

Brunton GEO Pocket Transit Compass, 0-90deg. Scale

SKU: BRUF5009
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Brunton GEO Pocket Transit Compass, 0-90deg. Scale Specifications

  • Resolution

    Compass: 1deg.
    Clinometer: 0.5deg.

  • Accuracy

    Compass: 0.5deg.
    Clinometer: 2deg.

  • Increments

    Compass: 1deg.
    Clinometer: 1deg.

  • Dimensions

    3.8x2.8x1.3" / 9.65x7.11x3.30cm

  • Weight

    12.8oz / 362.87g

  • UPC Code

    080078000461

0 Accessories for Brunton GEO Pocket Transit Compass, 0-90deg. Scale

About Brunton GEO Pocket Transit Compass, 0-90deg. Scale

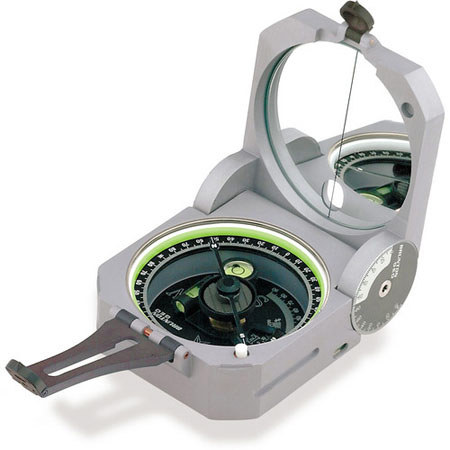

The Brunton GEO Pocket Transit Compass (0-90deg. Scale) is a specially engineered analog navigation device built to deliver accurate readings in any hemisphere. This configuration of the Transit series uses a single rare-earth magnet to resist demagnetization and provides fast readings due to its relative magnetic strength.

A hinged clinometers allows simultaneous trend and plunge measurements that are accurate to +/-2deg. The compass housing is machined from a single billet of 6061-T6 aluminum and is o-ring sealed to provide waterproof performance

Brunton GEO Pocket Transit Compass, 0-90deg. Scale Features

  • Sapphire jewel bearing
  • 0-90deg. scale
  • 5% grade scale increments
  • +/-90deg. vertical angle measurement
  • +/-180deg. east/west magnetic declination adjustment
  • +/- 0.5deg. accuracy with 1deg. graduation marks (vert and azimuth)
  • Hinged clinometer with 1deg. increments, 0.5deg. accuracy
  • Precision aligned mirror with see-through window
  • Induction dampened, low center of gravity needle
  • Buck Horn-style azimuth and vertical angle sights
  • Horizontal and vertical axis bubble levels
  • Ball and socket tripod mountable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sapphire jewel bearing
  • 0-90deg
  • Scale
  • 5% grade scale increments
  • +/-90deg
  • Vertical angle measurement

What's in the box:

  • Brunton GEO Pocket Transit Compass
  • Leather Case
  • Brunton Limited Lifetime Warranty
