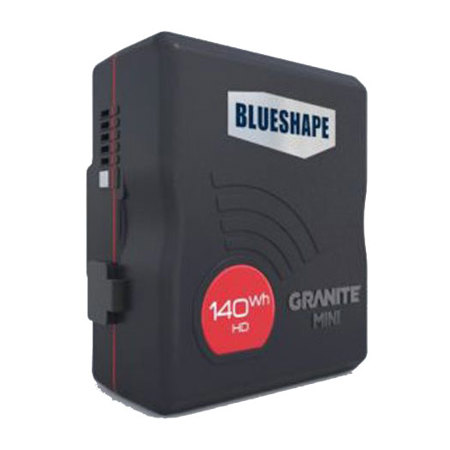

BlueShape GRANITE MINI 140Wh 9.9Ah Li-Mn Gold-Mount Battery with GRANITE Link for 3-Stud Chargers

Just introduced by BlueShape, the GRANITE MINI 140Wh 9.9Ah Li-Mn Gold-Mount Battery with GRANITE Link for 3-Stud Chargers is a compact powerhouse designed to fuel smaller cinema cameras. This innovative battery pack features Wi-Fi connectivity, allowing for seamless monitoring and control.

Constructed with GRANITE, this battery pack boasts exceptional resistance to impacts and bumps, making it a reliable choice for challenging production environments. The advanced modular design ensures the lithium-ion cells are securely housed within a reinforced cage. This single-core construction eliminates the need for wiring, with metal interconnections and the electronic BMS board integrated directly with the cells.

The GRANITE MINI battery pack is designed with thickened, low-resistance alloy tabs for improved welding strength and superior electrical conductivity. It features modularly deployed D-Tap sockets on each side, protected by snap-on rubber caps for added durability.

The robust construction of this battery pack is further enhanced by an external V-Bracket, which is securely screwed to the inner core through the bottom case via a reinforcement metal plate. The outer shells, made of 4mm thick automotive-grade plastic resin, wrap the inner core and clamp it with eight perimeter screws. A colored rubber gasket is sandwiched between the outer shells, improving water resistance and adding a sleek aesthetic touch.

Certified IP54, the GRANITE MINI battery pack offers protection against dust and water, ensuring safe and reliable operation. The robust construction reduces the risk of internal disconnection or malfunction caused by unexpected crashes, thereby extending the overall pack life expectancy.

This battery pack stands out in the industry for its high draw and unparalleled energy density, achieved through the implementation of world-class Li-Ion chemistry. This ensures superior and long-lasting electrochemical performances in a compact core, making it ideal for high-demand video applications.

Fully compatible with the 3-Stud standard, this battery can be charged with most original 3-Stud chargers available on the market. When installed on cameras with fully functional 3-Stud mounts, it communicates the Relative State of charge (%) to the camera viewfinder.

The GRANITE MINI battery pack also features a 5 LED precise gauge for accurate capacity display, integrated with state-of-the-art battery safety, balancing, and monitoring technology. It provides digital communication with enabled devices and offers two additional power outlets through D-Tap sockets, conveniently located on the battery sides and protected by rubber covers.

The GRANITE Link feature allows operators, camera assistants, or technical directors to monitor the state of batteries in close proximity without having to physically check the battery. This feature is accessible through iOS and Android apps, offering real-time battery diagnostics, fleet monitoring from a single device, safeguarding against unauthorized use, and rental control to optimize lease periods.

In summary, the GRANITE MINI 140Wh 9.9Ah Li-Mn Gold-Mount Battery with GRANITE Link for 3-Stud Chargers is a compact, robust, and innovative power solution for smaller cinema cameras, offering superior performance, durability, and convenience.
