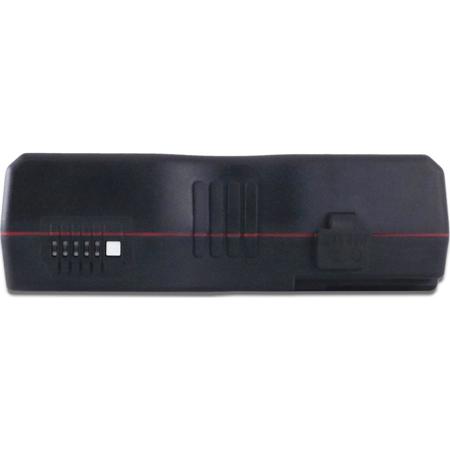

BlueShape BV100HD Granite 94Wh 6.2Ah V-Mount Lithium-Ion Manganese Battery, 14.8V Nominal Voltage, 12A Max. Discharge Current, 2x D-Tap Ports

The BlueShape BV100HD Granite 94Wh 6.2Ah V-Mount Lithium-Ion Manganese Battery is a moderately compact battery pack for applications requiring lighter setups. The new Granite construction features remarkable resistance to impacts and bumps, ideal for harsh production environments. This moderately compact battery pack is one of the most powerful V-Mount batteries, capable of operating continuously in discharge at 12A (approx. 175W), designed for the most power hungry devices and for users needing a small and compact battery pack.

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through 2 D-Taps conveniently located on the battery sides; these are electronically and individually protected against shorts and overload so as not to compromise the battery's main supply and provide power up to 5A. They can be conveniently used to power devices working at 14.8V nominal or even USB powered gadgets and chargers through the PT-USB adapter. No IATA restrictions, transportable in reasonable quantities in hand luggage only or in the checked-in luggage if installed in the equipment.

Features of Granite Series
The Granite construction features strong resistance to impacts and bumps, ideal for harsh production environments.

Modular Design
The lithium ion cells are secured inside the pack in a reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity. P-Tap ports are modularly deployed on each pack side and externally protected with snap on rubber caps.

Solid Construction
The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate. The outer battery pack shells wrap the inner core and clamp it with eight perimeter screws. A colored rubber gasket is sandwiched in the middle between the outer shells to improve water resistance.

Resin Shells
The outer shells are made of 4mm thick automotive grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

IP54 Certified
The outer shell and insulation are rated IP54, which assures protection and safety of operations against dust and water.

Improved Longevity
The battery system as a whole will benefit from the robustness of the Granite construction because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes. Granite models have been subjected to intensive testing, including several drops from heights up to 6.5 ft without suffering internal and external critical damages that render them unusable.
