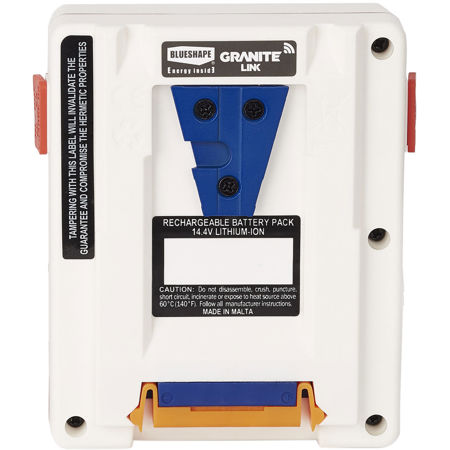

BlueShape GRANITE MINI 140Wh 9.9Ah 14.4V Lithium-Ion Manganese V-Mount Battery with Granite Link for V-Lock Chargers, White

Compact and Powerful 140Wh Li-Ion battery pack, High-Drain, Wi-Fi enabled, with a rock solid construction incorporating 2x D-Tap connectors enabled for charging

BLUESHAPE is upgrading the GRANITE line-up, proudly introducing GRANITE MINI - the new series of small, compact and powerful battery packs, ideal for smaller cinema cameras, featuring the innovative and handy Wi-Fi connectivity.

GRANITE LINK

GRANITE LINK is the latest amazing feature launched by BLUESHAPE.

All the new GRANITE TWO and GRANITE MINI battery packs now feature Wi-Fi connectivity that transmits battery data in real time.

Advantages

Tight Control and battery diagnostics in real time
Remotely check the state of charge and the remaining runtime updated in real time based on the actual load conditions. Watch the pack inner temperature, the single cells voltage level and the cycle counter.

Entire fleet monitoring from a single device
All batteries connect to the same Wi-Fi network so that one or more smartphones with the App installed can connect and receive data from all the batteries at the same time without the need of special pairing procedures.

Safeguard your property
Avoid unauthorized use of you battery packs by locking when not in use. They will stop releasing any power although enabled to charge. Password protected.

Rental control: Optimize the lease period of your assets
Limit the usage of the battery packs that you rent to just the period your customers have paid for, either a number of days or a certain amount of runtime. When these expire, whichever comes first if both are set, the battery pack will stop releasing power. The user is always notified of the residual runtime through the App.

• Customize your setup as needed, by temporarily changing each battery name and rearranging the list to help you to easily identify the battery in use

• Find your battery: push a button on the screen and make the topmost rgb LED of your battery to flash to spot it easily among the other

• Receive alerts when batteries are close to empty or close to full

The GRANITE construction features remarkable resistance to impacts and bumps, ideal for harsh production environments.

Features

Advanced modular design
• The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity.
• D-Tap sockets are modularly deployed on each pack side and externally protected with snap on rubber caps.

Rock Solid Construction
• The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate.
• The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws.
• A colored rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look.

Superior resin
• The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

IP54 Certified
• The superior GRANITE construction features an outer shell and insulations rated IP54 that guarantee protection and safety of operations against dust and water.

Improved overall pack longevity
• The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy.

This streamlined battery pack features high draw and an unparalleled energy density in the industry by implementation of the best world class Li-Ion chemistry that provides superior and long lasting electrochemical performances in a reduced core, making this battery perfect for high demanding video applications.

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through D-Tap sockets conveniently located on the battery sides, protected by rubber covers. Both outlets are directly connected to the battery terminals for maximum power on the D-Tap ports, and can also be used for immediate and intuitive charging using inexpensive AC-DC D-Tap style chargers. They can be conveniently used to power devices working at 14.4V nominal, or even USB powered gadgets and chargers through the PT-USB adapter.

It has IATA restrictions, only 2 pcs per passenger can be transported in hand luggage only, or in the checked-in luggage if installed in the equipment.
