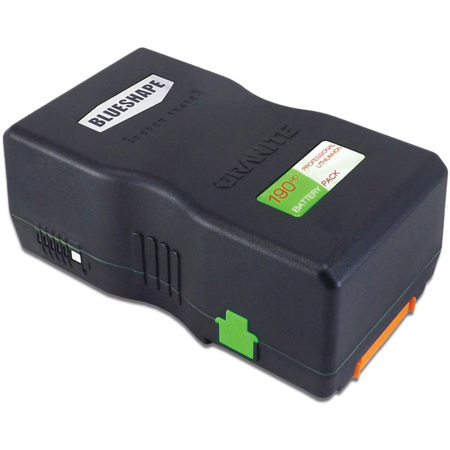

BlueShape BV190HD SPLASH 14.8V V-Lock Li-Mn Water Resistant Battery, 13.2Ah/190Wh Nominal Capacity

The BlueShape BV190HD SPLASH 14.8V V-Lock Li-Mn Water Resistant Battery features a special design for achieving an IP65 rating, meaning that the battery resists water ingress from splashes and water jets such as from exposure to rain. While the battery is one of the most powerful V-Mount batteries available on the market today, capable of operating continuously in discharge at up to 2A (approx. 175W), the SPLASH construction makes it ideal to power battery operated light panels and to endure tougher outdoor shooting conditions on any location.

Advanced modular design
The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity. Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. The D-taps have been omitted to enhance the water-resistant quality. No IATA restrictions, transportable in reasonable quantities in carry-on luggage only or in the checked-in luggage if installed in the equipment.

Rock Solid Construction
The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate. The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws. A colored rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look.

Superior resin
The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

SPLASH: IP65 Certified
The superior GRANITE construction and the improved insulations features an IP65 rating that assure protection and safety of operations against prolonged water splashes and jets exposure making the SPLASH series ideal for outdoor usage under rain.

Improved overall pack longevity
The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy.

Enhanced contact protection for safer air transport
They care and strongly respect the IATA requirements when it comes to transporting batteries. Towards this, They have adopted high quality individual packaging for every individual battery. A recent addition is the contact cover (shown here) that They started including on every V-mount battery that comes out of the production as the ultimate protection against short circuit of the contacts. This cover does exactly what it says and makes it virtually impossible for a short between the terminals to occur during transport. This is the latest enhancement in the list of safety features that give maximum protection, especially important during air transport.
