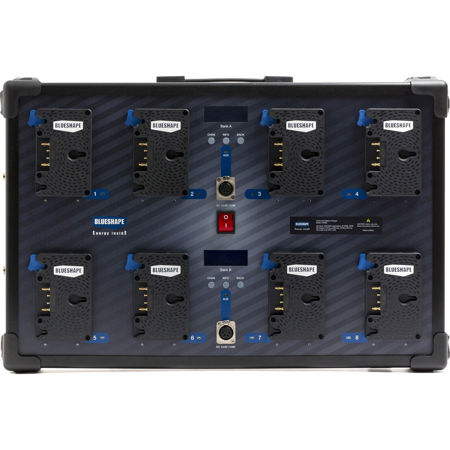

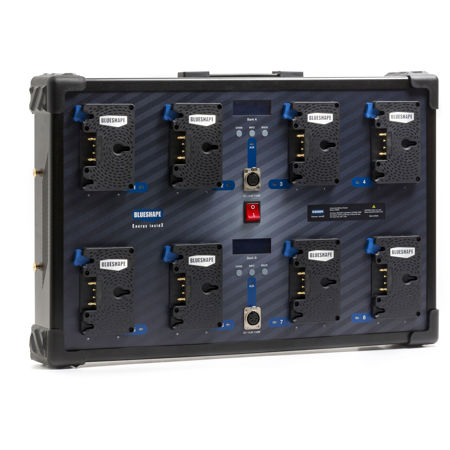

BlueShape 8-Channel Fully Simultaneous Wall-Mount Charger and Monitoring Utility for Gold-Mount Lithium-Ion Battery

SKU: BSCGS8XW MFR: CGS8XW
Earn VIP Reward Points

Key Features

  • Simultaneously charge eight Gold Mount Lithium-Ion batteries with this efficient 8-channel charger.
  • Monitor each battery's charging status on the LCD display for optimal Lithium-Ion battery management.
  • The included monitoring software provides real-time data via USB for detailed battery analysis.
  • Mount this durable wall-mount charger to save space in your studio or mobile video production setup.
  • Enjoy a wide AC input range (100-240 VAC) for global compatibility with your Gold Mount batteries.
  • Get reliable power with a 4-Pin XLR Female output, perfect for professional video equipment.
See More Product Details
Special Order?Estimated to Ship: 09/30/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BlueShape 8-Channel Fully Simultaneous Wall-Mount Charger Specifications

General

General

Jump to...
  • Mount / Series Type

    Gold Mount

  • Number of Battery Bays

    8

  • Output Connector

    4-Pin XLR Female

  • Mount Fixture

    Mounting Holes

  • Indicator

    LCD Display, LED

Electrical

Jump to...
  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Output Voltage

    13.8 to 16.8 VDC at 4.8 A (4-Pin XLR Female)

  • Multi-Bay Charging Modes

    Simultaneous

  • Chemistry

    Lithium-Ion

  • Maximum Wattage

    200 W

Physical

Jump to...
  • Dimensions

    24.4 x 16.1 x 4.3" ( 620 x 410 x 110mm)

  • Weight

    21.4 lb (9.7kg)

Designed For Use With:

  • Gold Mount

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
BlueShape 8-Channel Fully Simultaneous Wall-Mount Charger
$3,220.00

$3,538.00

Save:$318.00 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

BlueShape CGR4 4-Channel Simultaneous Rugged Battery Charger, Gold Mount
$812.00

$892.00

Save:$80.00 (9%)

Special Order Item

This item typically ships within 2-5 Days. Delivery is subject to availability.

BlueShape 2-Channel Simultanoeus 6A Portable Charger for 3-Stud Batteries
$441.00

$582.00

Save:$141.00 (24%)

Special Order

Generally ships in 7-14 days, subject to availability

CompatibilityGold MountGold MountGold Mount
Accessory TypeAC Adapters / ChargersAC Adapters / ChargersAC Adapters / Chargers
Special FeaturesLCD DisplayFast Charge-
Channels842
ChemistryLi-IonLi-IonLi-Ion

About BlueShape 8-Channel Fully Simultaneous Wall-Mount Charger

Make your battery charging process seamless and efficient with our high-tech 8-Channel Fully Simultaneous Wall-Mount Charger and Monitoring Utility for Gold-Mount Lithium-Ion Batteries. This durable and compact device is designed to cater specifically to 3-Stud Li-Ion batteries, offering the capability to charge up to eight batteries simultaneously, regardless of the brand.

The charger features two user-friendly LCD displays that provide real-time digital information about the state of charge, time to full charge, and status information for each group of four batteries. For BLUESHAPE 3-Stud batteries, even more detailed information is available, making this charger a versatile tool for professional photographers and videographers.

This multifunctional charger is not just robust but also boasts a slim design to minimize space occupancy. It comes with a rugged and simple wall-mounting system, facilitated by a special metal bracket, making it perfect for easy indoor installation and use. It's also portable enough to be mounted in a production vehicle and can be easily removed when needed.

The charger's redundant electronic design with four power supplies enhances its reliability. It features Integrated Power Control System (IPCS) and Charge Termination Protocol (CTP) for improved battery and charger protection. Additionally, it comes with two auxiliary DC output power sources at 13.8V 110W through an XLR 4 pin socket.

For added convenience, the charger includes a USB connection to interface with a computer. Up to four chargers can be monitored by a single PC through BSCVMon, a dedicated software provided in the box. This impressive and professional wall charger from BLUESHAPE is designed to provide continuous feedback on the state of charge through its LCD displays and allows data communication with a PC to track the battery data.

In summary, this 8-Channel Fully Simultaneous Wall-Mount Charger and Monitoring Utility for Gold-Mount Lithium-Ion Batteries is a must-have tool for any professional in the field of photography or videography, offering a seamless, efficient, and user-friendly charging experience.

BlueShape 8-Channel Fully Simultaneous Wall-Mount Charger Features

  • Elegant and robust design. Ideal for indoor use
  • Sophisticated electronics for accurately detecting the chargingstate
  • Simultaneous battery charging, truly 8 channels without the needof external adapters
  • Charging power optimisation for maximum charging performance
  • Double colour LCD display and three-colour LED indicators foreffective and comprehensive individual charge-station monitoring
  • Pre-charge function for protecting heavily discharged cellsagainst high currents until their voltages rise to a safe level
  • Maximum compactness and space utilisation
  • IPCS and CTP Features
  • Dual powerful auxiliary outputs at 13.8V / 110W through 4-poleXLRs-USB connection to interface the CVS8XW with a PC: up to 4chargers can be monitored by a single PC using BSCVMon - acustom Blueshape software for tracking and monitoring chargersand logging battery fleet history
  • Redundant electronic design with 4 power supplies for increasedreliability

Warranty Information

This product has a limited warranty of 18 months for parts and 18 months for labor.

Key Features

  • Simultaneously charge eight Gold Mount Lithium-Ion batteries with this efficient 8-channel charger.
  • Monitor each battery's charging status on the LCD display for optimal Lithium-Ion battery management.
  • The included monitoring software provides real-time data via USB for detailed battery analysis.
  • Mount this durable wall-mount charger to save space in your studio or mobile video production setup.
  • Enjoy a wide AC input range (100-240 VAC) for global compatibility with your Gold Mount batteries.
  • Get reliable power with a 4-Pin XLR Female output, perfect for professional video equipment.

What's in the box:

  • 8-Channel Fully Simultaneous Wall-Mount Charger
  • Monitoring Software on Mini CD
  • Mounting Bracket
  • AC Power Cord
  • USB Data Cable
  • BlueShape 18 Month Limited Warranty
