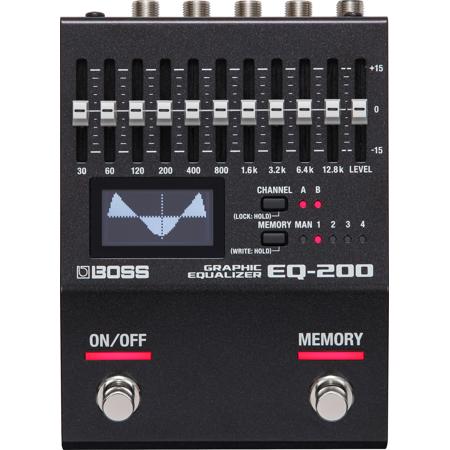

Boss EQ-200 Graphic Equalizer Pedal

SKU: BSEQ200 MFR: EQ-200
Earn VIP Reward Points

Key Features

  • Sculpt your tone precisely with the EQ-200's advanced graphic equalizer for guitars.
  • Achieve pristine sound quality using the 32-bit floating point processing for effects.
  • Enjoy versatile control with 127 memory slots, perfect for live performance EQ changes.
  • Use as an A/B switch to toggle between different amp or instrument EQ settings.
  • Compact and durable, this Boss EQ pedal enhances your pedalboard's sonic capabilities.
  • Easily fine-tune your bass or guitar's frequency response with intuitive band sliders.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Boss EQ-200 Specifications

  • Sampling Frequency

    96 kHz

  • AD/DA Conversion

    32 bits

  • Processing

    32-bit floating point

  • Memory

    127 + Manual

  • Nominal Input Level

    Input A/Mono, B: -10 dBu

  • Maximum Input Level

    Input A/Mono, B: +7 dBu

  • Input Impedance

    Input A/Mono, B: 2 M ohm

  • Nominal Output Level

    Output A/Mono, B: -10 dBu

  • Maximum Output Level

    Output A/Mono, B: +7 dBu

  • Output Impedance

    Output A/Mono, B: 1 k ohms

  • Recommended Load Impedance

    Output A/Mono, B: 10 k ohms or greater

  • Bypass

    Buffered bypass

  • Controls

    On/Off switch, Memory switch
    30--12.8 k sliders, Level slider
    A/B button, Memory button

  • Display

    Graphic LCD (64 x 32 dots, backlit LCD)

  • Indicator

    A/B indicator, Memory (Man, 1--4) indicators

  • Connectors

    Input (A/Mono, B) jacks, Output (A/Mono, B) jacks: 1/4" phone type
    CTL 1, 2/EXP jack: 1/4" TRS phone type
    MIDI (In, Out) jacks: Stereo miniature phone type
    DC In jack
    USB port: USB micro-B type (program update only)

  • Power Supply

    Alkaline battery (AA, LR6) x 3, AC adapter (sold separately)

  • Current Draw

    170 mA

  • Expected Battery Life

    Alkaline: Approx. 7 Hours (Under Continuous Use)

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Quantity

    3

  • Battery Type

    AA

  • Dimensions (W x D x H)

    3.97 x 5.43 x 2.36" (101 x 138 x 60mm)
    With Rubber Foot: 3.97 x 5.43 x 2.44" (101 x 138 x 62mm)

  • Weight

    22.22 oz (630g)
    With Battery: 24.6 oz (700g)

  • UPC Code

    761294514610

24 Accessories for Boss EQ-200 Graphic Equalizer Pedal

  • All Accessories (24)
  • Cables & Adapters (21)
  • Bags & Cases (3)

Designed For Use With:

  • Bass Pedal
  • Guitar Pedal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Boss EQ-200

Before you dive into the world of sound sculpting, consider the EQ-200 Graphic Equalizer Pedal, a new generation device from BOSS's 200 series. This pedal is designed to offer advanced sound and versatility in a compact, streamlined size, perfect for saving space on your pedalboard.

The EQ-200 is equipped with intuitive grab-and-go controls and multi-function switches, making operation a breeze. It also features onboard memories, allowing you to store and instantly recall multiple setups. This pedal is not just about convenience, but also about superior sound quality. It boasts premium audio quality with 32-bit AD/DA, 32-bit internal processing, and a 96 kHz sampling rate.

As the most flexible compact EQ ever created for guitar and bass, the EQ-200 features two wide-ranging 10-band EQ channels. It also includes an onboard graphic display that provides a visual representation of the current EQ curve. The selectable signal flow structures allow you to configure the channels for stereo, parallel, or series operation. You can even patch in external pedals for deep pre/post tone shaping.

The EQ-200 is designed to optimize performance for different instruments. The frequency centers of all 10 bands can be set to three different types, making it an ideal choice for electric and acoustic guitars, bass, keyboards, and more.

The EQ-200 also offers a free Version 1.1 software update, expanding the onboard memory capacity for storing and recalling sounds. With this update, you now have access to 128 user setups, which can be recalled directly via MIDI program change.

The EQ-200's refined design, 32-bit/96 kHz engine, and ultra-low noise specs deliver precision tonal control with superior audio quality. Each band offers up to 15 dB of cut or boost, and each channel has a level slider for balancing with the bypass sound or kicking in a solo boost when needed.

The EQ-200's variable signal flow structure offers an exceptional level of power in honing your tone for both rhythm and lead playing. The A and B channels can be linked together or used independently, and you can also patch in an external pedal (or a chain of pedals) for pre-EQ and/or post-EQ processing.

The EQ-200 is user-friendly with a simple interface and visual EQ display. The hands-on sliders provide direct access to 10 EQ bands and master channel level, while the informative display offers a visual overview of the current EQ curve.

The EQ-200 also features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. For deeper control, setups can be directly recalled via program change messages from an external MIDI device.

The EQ-200's footswitches control EQ bypass and memory scrolling, but you can reassign them to turn channels on/off, select specific memories, and more. Control is also possible via external footswitches, and these are freely assignable as well. You can connect an expression pedal to control A or B channel levels, or even the overall output. MIDI I/O is also available on mini TRS jacks, allowing you to operate various functions from external MIDI controllers and chain multiple 200 series pedals to select memories on all of them at once.

In conclusion, the EQ-200 Graphic Equalizer Pedal is a versatile, high-quality, and user-friendly device that offers advanced sound and versatility, making it a must-have for any musician.

Boss EQ-200 Features

  • Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • Dual 10-band EQs that can be used in stereo, parallel, or series
  • Insert function for processing external effects with pre and/or post tone shaping
  • Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz
  • 15 dB boost/cut on each band, plus overall level control for each channel
  • Stereo link function for operating both EQ channels together
  • Intuitive interface with hands-on sliders and graphic EQ display
  • Access 128 user setups from the panel or MIDI program change
  • Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
  • Panel Lock function disables controls to prevent unwanted changes
  • Two onboard footswitches with customizable assignments
  • Support for expanded control via external footswitches, an expression pedal, or MIDI
  • Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adapter cable available separately)
  • Micro USB jack for firmware updates
  • Runs on PSA-series AC adapter or three AA-size batteries

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Sculpt your tone precisely with the EQ-200's advanced graphic equalizer for guitars.
  • Achieve pristine sound quality using the 32-bit floating point processing for effects.
  • Enjoy versatile control with 127 memory slots, perfect for live performance EQ changes.
  • Use as an A/B switch to toggle between different amp or instrument EQ settings.
  • Compact and durable, this Boss EQ pedal enhances your pedalboard's sonic capabilities.
  • Easily fine-tune your bass or guitar's frequency response with intuitive band sliders.

What's in the box:

  • 1x Boss EQ-200 Graphic Equalizer Pedal
  • 3x AA Alkaline Battery
  • 4x Rubber Foot
  • Manual
  • Boss 5 Year Limited Warranty
