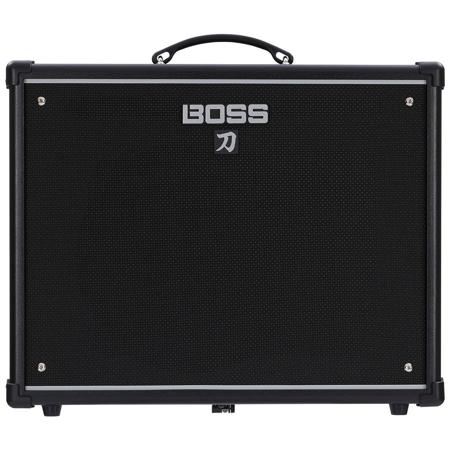

Boss KATANA-100 100W 1x12 Combo Amplifier for Electric Guitars

SKU: BSKTN100

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-12-15T12:39:47

Rated 4 out of 5

Very nice amp with many builtin effects

Great amp. Many options (I still haven't figured out and tried all). Sound quality is a little "harsh" but for general use this is fine. Great for lead.

CUONG N.

Boss KATANA-100 Specifications

  • Rated Power Output

    100 W

  • Nominal Input Level

    INPUT: -10 dBu (1 M ohm)
    AUX IN: -10 dBu (20 k ohms)
    RETURN IN: -10 dBu (100 k ohm)

  • Speaker

    30 cm (12") x 1

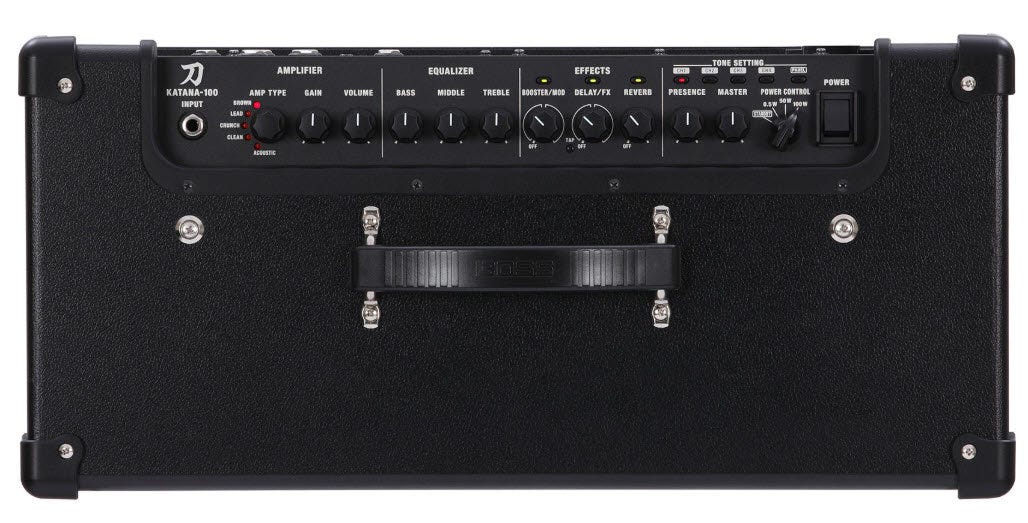

  • Controls

    POWER switch
    MASTER knob
    PRESENCE knob
    POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)

  • Controls: AMPLIFIER

    AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
    GAIN knob
    VOLUME knob

  • Controls: EQUALIZER

    BASS knob
    MIDDLE knob
    TREBLE knob

  • Controls: MULTI EFFECT

    BOOSTER/MOD button
    DELAY/FX button
    REVERB button
    TAP button
    BOOSTER/MOD knob
    DELAY/FX knob
    REVERB knob

  • Controls: TONE SETTING

    CH1 button
    CH2 button
    CH3 button
    CH4 button
    PANEL button

  • Indicators

    ACOUSTIC
    CLEAN
    CRUNCH
    LEAD
    BROWN
    BOOSTER/MOD
    DELAY/FX
    REVERB
    TAP
    CH1
    CH2
    CH3
    CH4
    PANEL

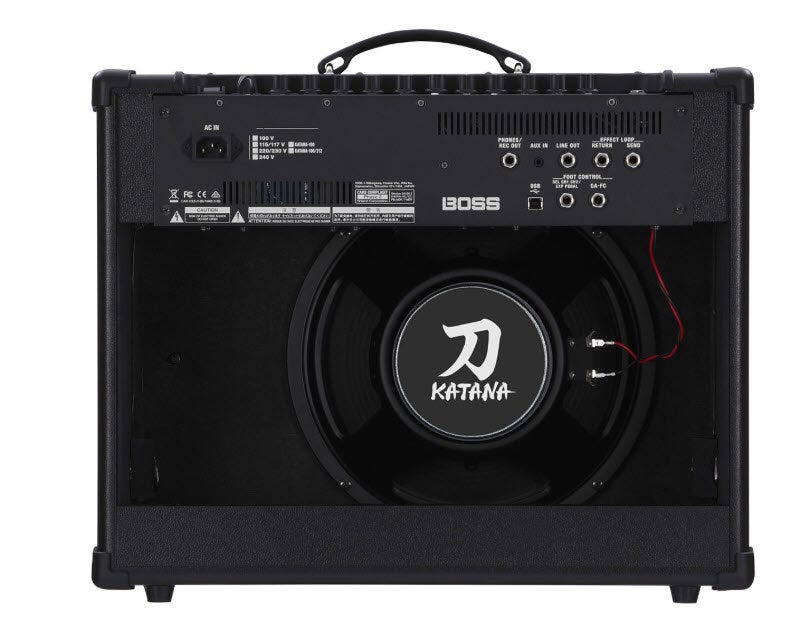

  • Connectors

    INPUT jack: 1/4" phone type
    AUX IN jack: Stereo miniature phone type
    REC OUT/PHONES jack: Stereo 1/4" phone type
    SEND jack: 1/4" phone type
    RETURN jack: 1/4" phone type
    LINE OUT jack: 1/4" phone type
    EXP PEDAL/CTL CH1/CH2 jack: 1/4" TRS phone type
    GA-FC jack: 1/4" TRS phone type
    USB port: USB B type
    AC IN jack

  • Power Consumption

    77 W

  • Accessories

    Owner's manual
    Power cord
    GA-FC sticker

  • Options (sold separately)

    Footswitch: BOSS FS-5L
    Expression pedal: Roland EV-5, BOSS FV-500L, BOSS FV-500H
    GA FOOT CONTROLLER (GA-FC)

  • Dimensions (W x D x H)

    530 x 248 x 484 mm (20-7/8 x 9-13/16 x 17-1/2")

  • Weight

    32.6 lbs (14.8 kg)

  • UPC Code

    761294509302

About Boss KATANA-100

Crafted Tones - Forged for Rock

With 100 watts of power and a custom 12-inch speaker, the Katana-100 delivers a commanding range of gig-worthy tones that gracefully slice through any band scenario. The amp also excels for home playing, with a uniquely efficient design and innovative Power Control that provides inspiring sound and response at low volumes. In addition, the Katana-100 includes integrated access to a huge range of BOSS effects, which are customizable using the free BOSS Tone Studio editor software. And with the amp’s powerful Tone Setting memories, you can store your favorite amp channel setups and effects combinations for instant recall.

Leave Your Pedalboard at Home

With its built-in BOSS effects and recallable Tone Settings, the Katana-100 lets you perform anywhere with just a guitar and amp. Connecting to BOSS Tone Studio via USB provides access to 55 effects that are fully customizable for your needs. Going beyond standard distortion, delay, and reverb, the selection also includes powerful tone-shapers like pitch shifting, ring mod, slicer, and more. You can load 15 different effects in the amp at one time and use up to three simultaneously. Four Tone Settings let you store custom amp and effects setups for instant recall, and you can always jump to the current panel settings at the touch of a button. It's also possible to connect optional footswitches and expression pedals for hands-free control on the gig.

Software Version 2 for the Katana Amp Range

BOSS is proud to now introduce Software Version 2 for the Katana Amp Range (KTN-Head, KTN-100, KTN-100 2x12 and KTN-50 versions) This feature packed update now adds many user-requested additions and enhancements that help further cement BOSS’ name in the amplifier market. This is an extremely powerful enhancement that increases your tonal flexibility.

Here are the new additions;

EXPANDED CHANNELS

  • LINE OUT “AIR FEEL”
  • CABINET RESONANCE CONTROLS
  • GLOBAL EQ
  • THREE BRAND NEW EFFECTS
  • NEW CHANNEL EQ
  • UPGRADED EFFECTS LOOP CONTROL
  • NEW DELAY FEATURES

Expanded User Channels

A big request from end users was to extend the range of user presets available on Katana amps. Using the panel switch or any BOSS Footswitch (FS-6, FS-7, FS-5L) users now have DOUBLE the amount of channel presets on board for live use. The KTN-50 increases to 4 preset channels, and the KTN-100, KTN-HEAD and KTN-100/212 increases to 8 preset channels. This is also great for people who want to store more in their amp without the use of a PC or MAC.

Newly Added Effects

THREE new added effects expand the total effects to 58. This update adds two built from scratch effects; PHASER 90E and FLANGER 117E as well as a new delay model SDE-3000 based on the legendary Roland rack unit.

Updated Line Out Sounds

Via BOSS Tone Studio you can now control the Line Out “Feel” that comes from LINE OUT / HEADPHONES / USB. Trickled down from the flagship Waza Head technology, so many players now use amp simulators regularly, and this features now gives you high quality recorded tones without the need for mic’ing up your amp. Three different microphone voicings; REC, LIVE and BLEND allows you to get the best recorded tones from Katana. Huge advantages for Live use as well.

Cabinet Resonance

Also trickled down from the flagship Waza Head technology, using BOSS Tone Studio users can now select between three speaker resonance types to help with low end response and alter the overall tone. It can also be used help KTN-HEAD match to an external speaker. VINTAGE, MODERN and DEEP offer three distinct sound and cab styles.

Boss Katana Guitar Amp
Boss Katana Guitar Amplifier

Ready-to-Mix Direct Tones

Using BOSS Tone Studio you get GLOBAL EQ which can be moveable between PRE or POST your effects chain. Alongside this, new EQ effects pedals appear under both MOD and FX pedals meaning you also have TWO highly flexible EQ’s to place anywhere in your effects chain alongside your Global EQ settings. As before, you can use a GA-FC foot controller in effects mode, meaning you have switchable EQ at your feet

Additional Delay Function Added

Katana’s reverb mode has now been upgraded to feature DELAY, REVERB + DELAY and REVERB ONLY. Using Boss Tone Studio now allows you to change, per patch the Reverb Controls functions allowing you to have two different delays on board, either SEPERATELY or TOGETHER alongside tap tempo controls. New mixes of Dual delays and reverbs can now be created for new spacious and lush delays.

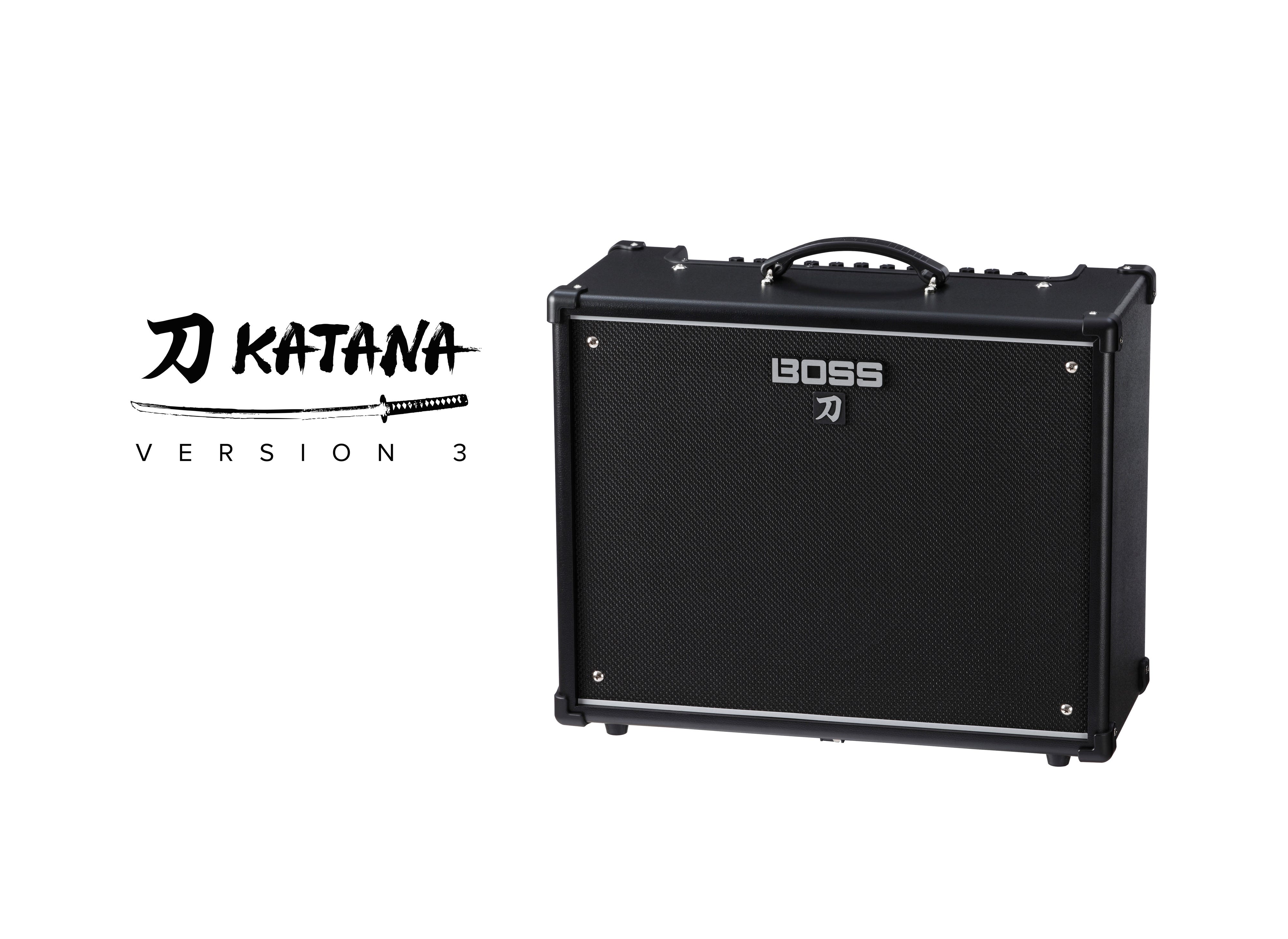

Katana Version 3: Added Effect Types, New Real-Time Control Assignments, and Stereo Effects When Recording via USB

The Katana Version 3 update enhances the stage-class Katana amp lineup with even more performance versatility. New effect types include the legendary Roland DC-30 Analog Chorus-Echo, classic BOSS GE-10 Graphic Equalizer, and expressive 95E pedal wah, providing iconic tones that perfectly match the Katana’s Brown amp character. In addition, BOSS Tone Studio offers the ability to assign favorite parameters for quick-access control from the front-panel effects knobs and create custom control assignments for up to three connected expression pedals. And when tracking in a DAW via USB, it’s now possible to capture true stereo sound with many of the Katana’s modulation, EQ, delay, and reverb effects.

Boss Katana Version 3

Effects Loop - Send and Return Upgrade

Many users asked for a more flexible effects loop to integrate with a wide variety of set-ups. Upgraded EFFECTS LOOP EDITING can now be achieved in Boss Tone Studio for better integration. Effects loop VOLUME can be set per channel and it can also be moved PRE or POST effects chain allowing you to get the most out of your effects on the floor and inside the Katana (KTN-100, KTN-100/212 and KTN HEAD only)

Key Features

  • Stage-ready 100-watt combo amp with a custom 12" speaker
  • Choose from 55 customizable effects with BOSS Tone Studio editor software
  • Store 15 different effects on board, with three effects available simultaneously
  • Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
  • Four memories for storing and recalling all amp and effect settings
  • Power Control for achieving cranked-amp tone and dynamic response at low volumes

What's in the box:

  • KATANA-100
  • Owner's Manual
  • Power Cord
  • GA-FC Sticker
